Help CenterCL-FU080WH DC Motor
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
chaoli
Model Number:
CL-FU080WH
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Coreless Motor CL-0408 for Medical Equipment, Industrial EquipmentNegotiableMOQ: 10000 Units -
CL-FC130 for Small rc Electric Car MotorNegotiableMOQ: 1000 Pieces
-
High Quality Coreless Motor CL-1215 for Industrial Equipment, Medical EquipmentNegotiableMOQ: 1000 Units
-
Hot Sales, High Quality for CL-FA130 Beauty ApparatusNegotiableMOQ: 1000 Pieces
-
Precious Metal-brush Motor CL-0408 for Monile Phone, Intelligent Toys, Home AppliancesNegotiableMOQ: 1000 Units
Place of Origin
Guangdong, China
Brand Name
chaoli
Model Number
CL-FU080WH
Usage
Home Appliance
Certification
ROHS
Type
Micro Motor
Torque
390.82gf.cm
Construction
Permanent Magnet
Commutation
Brush
Protect Feature
Totally Enclosed
Speed(RPM)
25000rpm/min
Continuous Current(A)
5.0A
Output Power
83.08w
Voltage(V)
9.6v
Efficiency
IE 2
Specifications
1.Shaft Diameter: 3.17mm2.motor cans Length: 63.5mm
3.motor diameter:30mm
4.Rated torque:38.3mN.m
Product Description

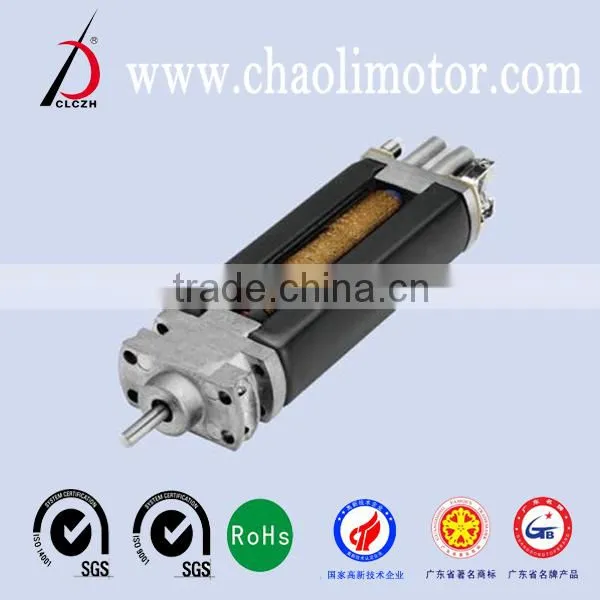

CL-FU080WH DC Motor

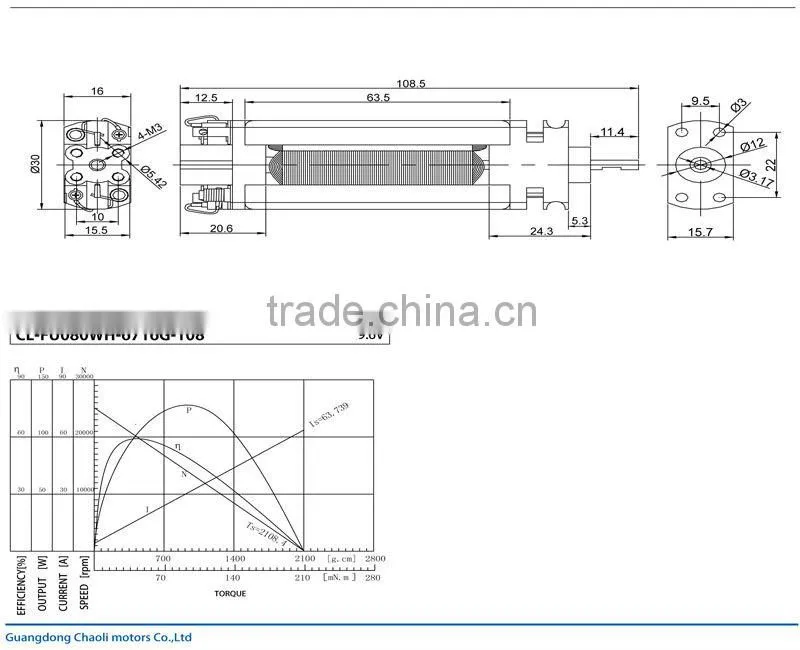

| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| r/min | A | r/min | A | mN.m | gf.cm | W | mN.m | gf.cm | A | |||
| CL-FU080WH-6716G-108 | 7.5-11.1 | 9.6V | 25000 | 5 | 20610 | 14.503 | 38.3 | 390.8 | 83.08 | 206.62 | 2108.4 | 63.739 |
Certification
CL-FU080WH DC Motor CL-FU080WH 9.5v DC Motor electric motor
9.5v dc motor 83w9.5v dc motor micro dc motor
