Help CenterCL-FFK20WD DC Motor
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
chaoli
Model Number:
CL-FFK20WD
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Rohs Certification for CL-FKN50PHNegotiableMOQ: 1000 Pieces -
Hot Sales, High Quality for CL-FFK20WD DC MotorNegotiableMOQ: 1000 Pieces
-
CL-FK260SA Electric MotorNegotiableMOQ: 1000 Pieces
-
Electric/Carbon Shaft for CL-FFK20WD DC MotorNegotiableMOQ: 1000 Pieces
-
Chaoli Motor of CL-FFM10VANegotiableMOQ: 1000 Pieces
Place of Origin
Guangdong, China
Brand Name
chaoli
Model Number
CL-FFK20WD
Usage
Boat, Car, Electric Bicycle, Fan, Home Appliance
Certification
ROHS
Type
Micro Motor
Torque
1.3g.cm
Construction
Permanent Magnet
Commutation
Brush
Protect Feature
Totally Enclosed
Speed(RPM)
22200rpm/min
Continuous Current(A)
0.054A
Output Power
0.73W
Voltage(V)
2.8V
Efficiency
IE 2
Specifications

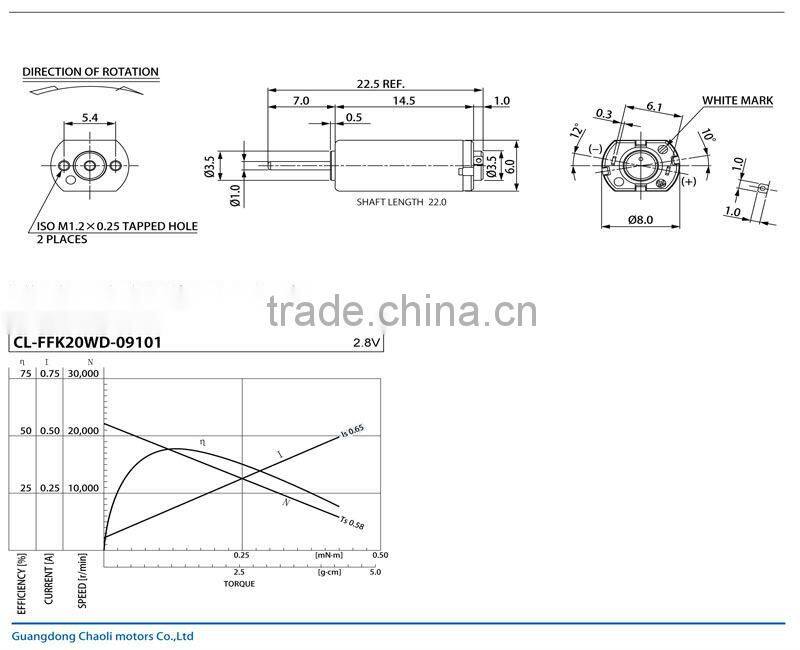

1.Shaft Diameter: 1.0 mm2.motor cans Length: 14.5mm
3.Voltage range:1.5~3.5V
4.Rated torque:0.13mN.m
2.motor diameter:8mm
Product Description

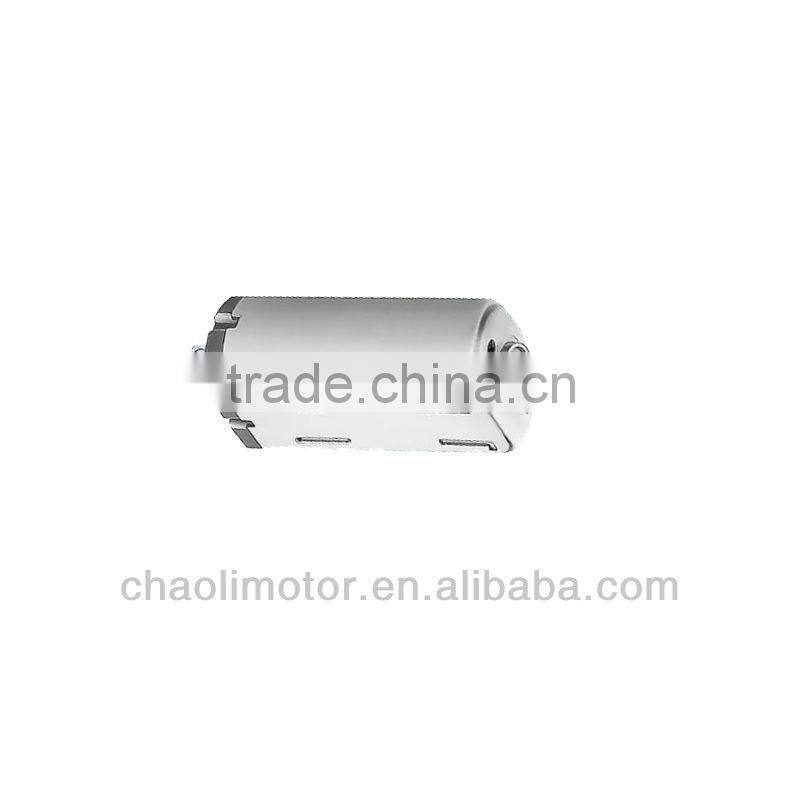

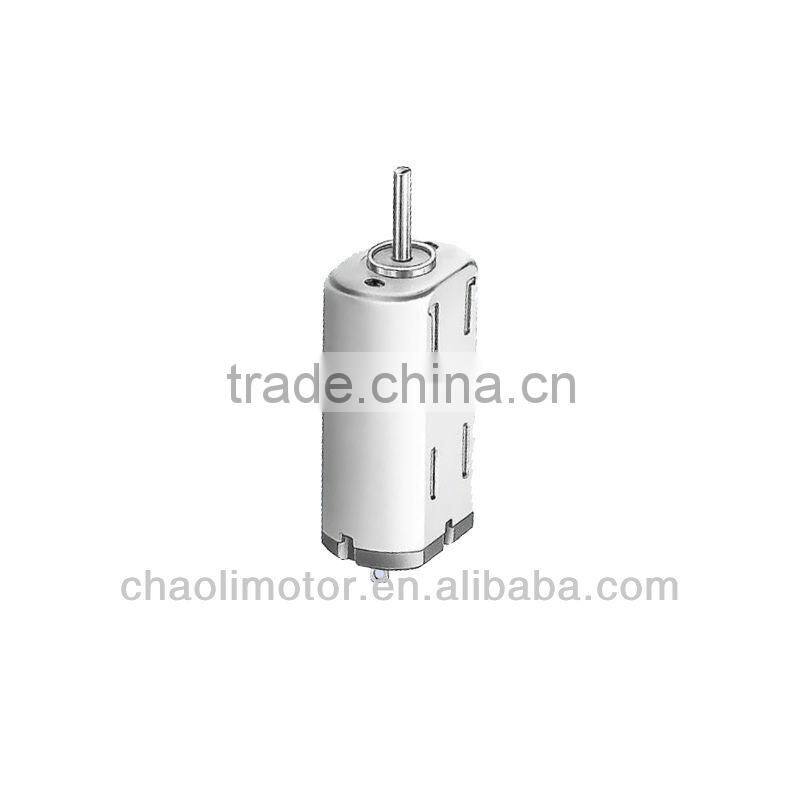

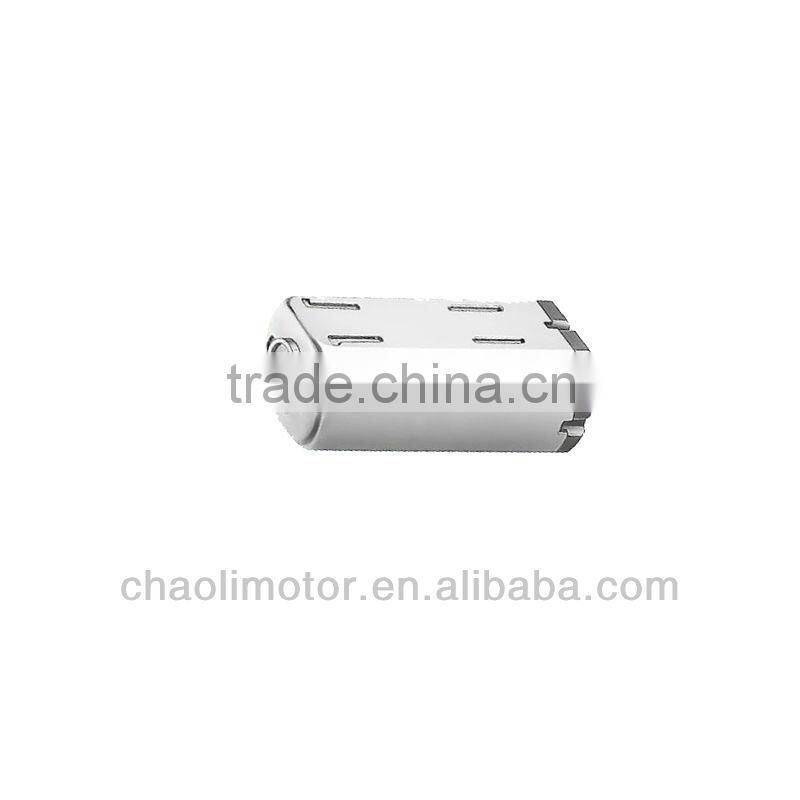

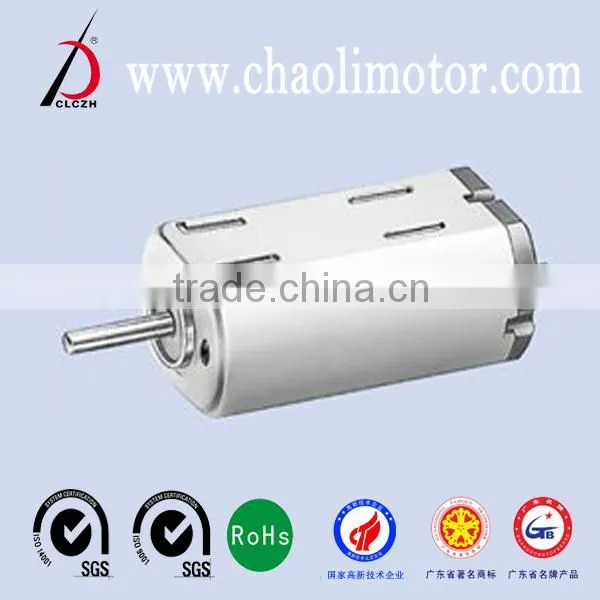

CL-FFK20WD DC Motor
Application: radio-controlled model, electric tools,electric hair scissors, mini electric toys,digital camera,mini appliance,car CD player,small appliance, mini massager,electric lock,model plane,sex toy,electric eyebrows shaver.
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| r/min | A | r/min | A | mN.m | g.cm | W | mN.m | g.cm | A | |||
| CL-FFK20WD-09101 | 1.5-3.5 | 2.8 | 22200 | 0.054 | 17230 | 0.19 | 0.13 | 1.3 | 0.23 | 0.58 | 5.9 | 0.65 |
Certification
CL-FFK20WD DC Motor CL-FFK20WD 2.8v DC Motor DC Motor
2.8v dc motor 0.23w2.8v dc motor 22200rpm0.23w2.8v dc motor
