Chaoli Motor of CL-FFM10VA

Chaoli Motor of CL-FFM10VA thumbnail-1
Chaoli Motor of CL-FFM10VA photo-1
Negotiable MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
chaoli
Model Number:
CL-FFM10VA
Contact Supplier Request Quote Chat Now
Guangdong Chaoli Motor Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name chaoli
Model Number CL-FFM10VA
Usage Boat, Car, Electric Bicycle, Fan, Home Appliance
Certification ROHS
Type Micro Motor
Torque 1.6g.cm
Construction Permanent Magnet
Commutation Brush
Protect Feature Totally Enclosed
Speed(RPM) 21500rpm/min
Continuous Current(A) 0.032A
Output Power 0.28w
Voltage(V) 4.5v
Efficiency IE 2

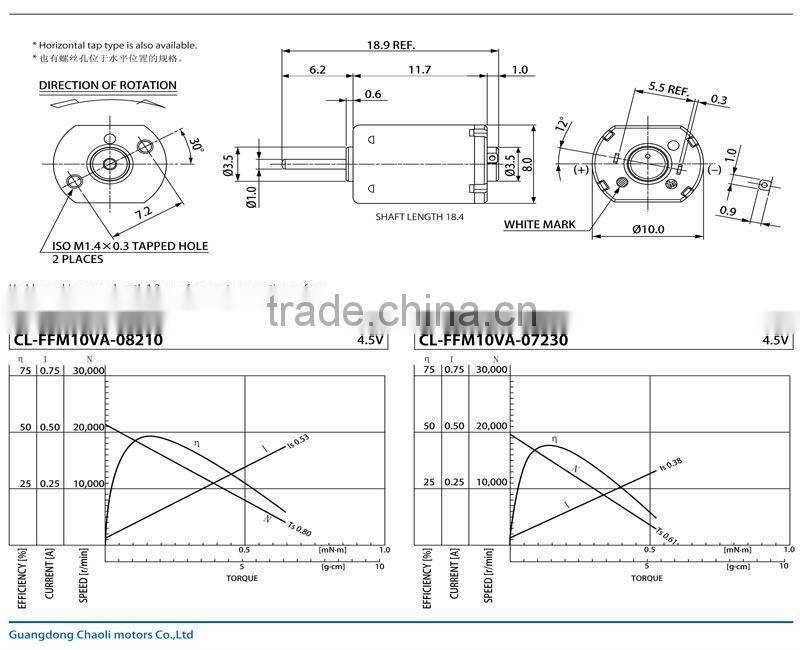

Specifications

1.Shaft Diameter: 1.0 mm
2.motor cans Length: 11.7mm
3.Voltage range:3.0~5.0V
4.Rated torque:0.16mN.m
4.motor diameter: 10mm







Product Description

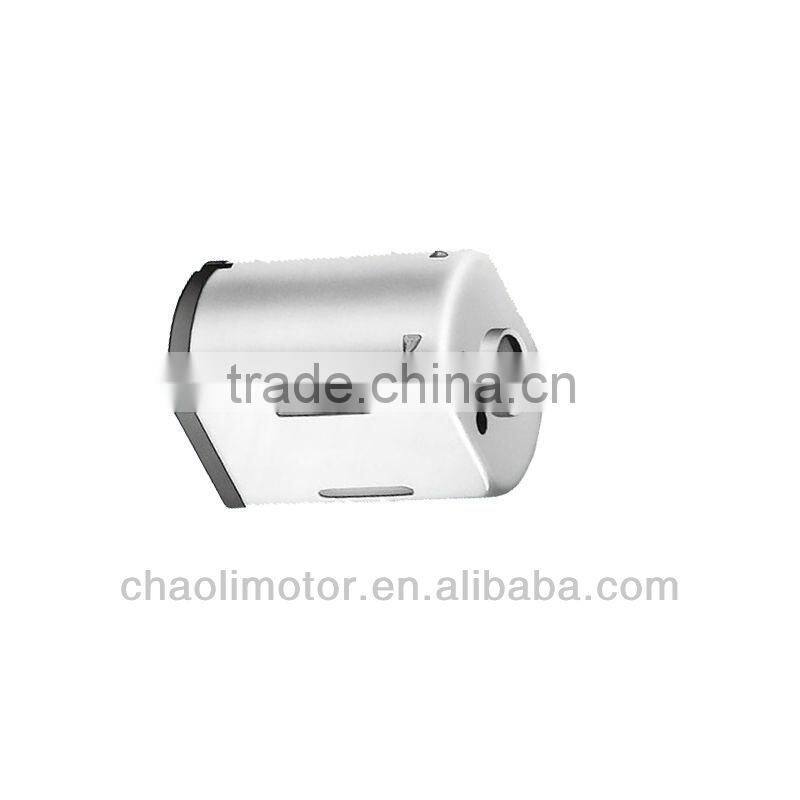

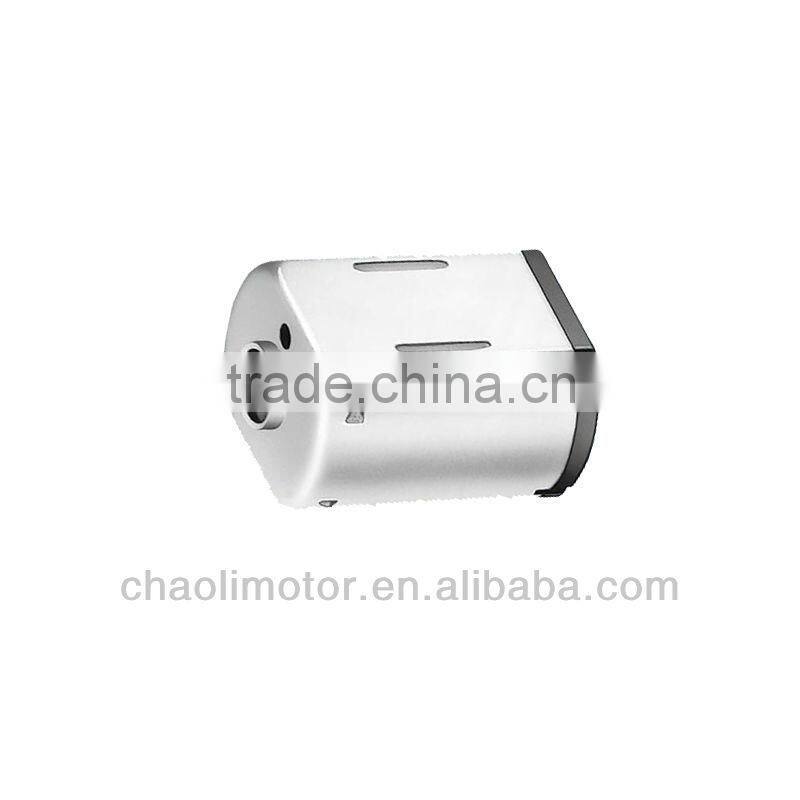

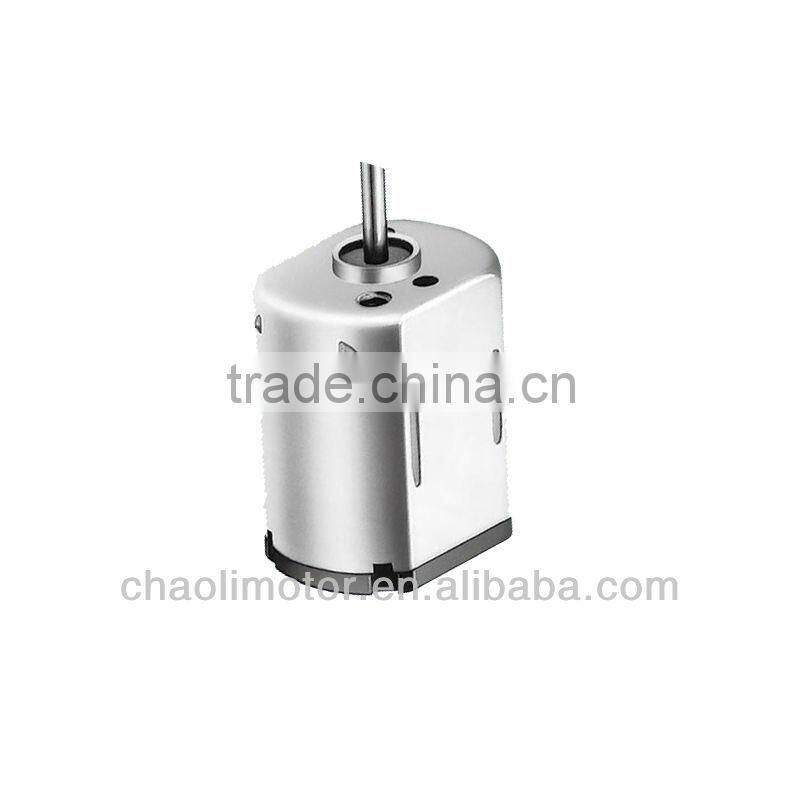

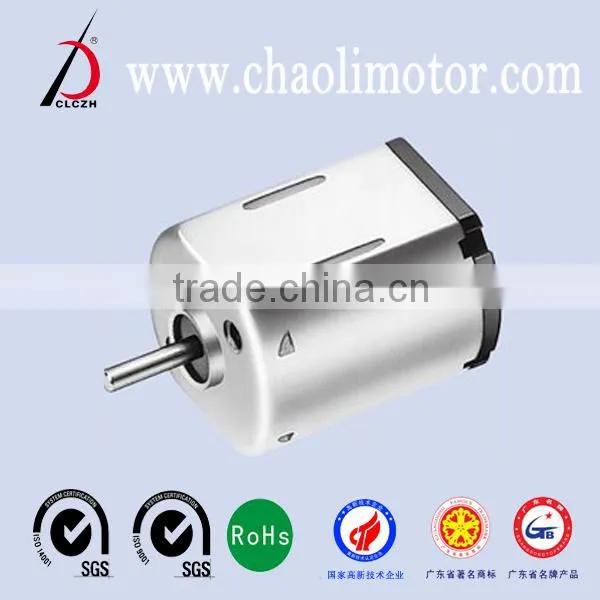

CL-FFM10VA DC Motor





Application: radio-controlled model, electric tools,electric hair scissors, mini electric toys,digital camera,mini appliance,car CD player,small appliance, mini massager,electric lock,model plane,sex toy,electric eyebrows shaver, Vibrating toothbrush.







MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min A r/min A mN.m g.cm W mN.m g.cm A
CL-FFM10VA-08210 3.0-5.0 4.5 21500 0.032 17260 0.13 0.16 1.6 0.28 0.8 8.2 0.53
CL-FFM10VA-07230 3.0-5.0 4.5 19600 0.03 15300 0.11 0.13 1.4 0.21 0.61 6.2 0.38







Certification

CL-FFM10VA DC Motor                       CL-FFM10VA 4.5v DC Motor                    motor electric

4.5v dc motor                                      0.28w4.5v dc motor                            21500rpm0.28w4.5v dc motor
