Help CenterCL-FF050SB Electrical dc Motor
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
chaoli
Model Number:
CL-FF050SB
Usage:
Home Appliance
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
12V dc Motor CL-RS380PH Brush dc Motor for Vacuum Cleaner, Electric Drill, ScrewdriverNegotiableMOQ: 1000 Pieces -
Chaoli CL-1013 Coreless DC MotorNegotiableMOQ: 1000 Pieces
-
CL-RS550 Brush dc Motor for Electric Drill, Air CompressorNegotiableMOQ: 1000 Pieces
-
Flat Motor CL-FF130 for rc ToysNegotiableMOQ: 1000 Pieces
-
High Speed CL-1013 Coreless Micro dc Motor for Home ApplianceNegotiableMOQ: 1000 Pieces
Brand Name
chaoli
Model Number
CL-FF050SB
Usage
Home Appliance
Certification
ROHS
Type
Micro Motor
Torque
8.5 g.cm
Construction
Permanent Magnet
Commutation
Brush
Protect Feature
Totally Enclosed
Speed(RPM)
10400rpm/min
Continuous Current(A)
0.046A
Output Power
0.73W
Voltage(V)
7.0V
Efficiency
IE 2
Specifications
1.Shaft Diameter: 1.5 mm2.motor cans Length: 26.9 mm
3.Voltage range:2.0~8.0V
4.motor diameter:15.5mm
dc motor

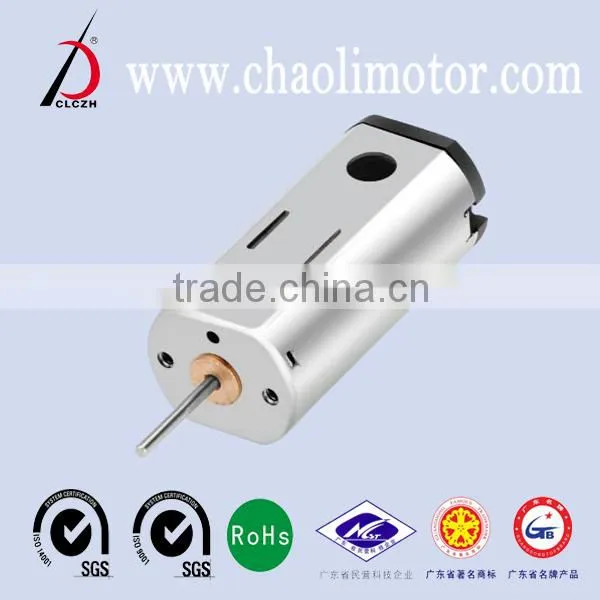

CL-FF050SB DC Motor
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| r/min | A | r/min | A | mN.m | g.cm | W | mN.m | g.cm | A | |||
| CL-FF050SB-11170 | 2.0-8.0 | 7 | 10400 | 0.046 | 8440 | 0.2 | 0.83 | 8.5 | 0.73 | 4.41 | 45 | 0.85 |
| CL-FF050SB-09250 | 5.0-11.5 | 8 | 8100 | 0.023 | 6610 | 0.1 | 0.63 | 6.4 | 0.44 | 3.34 | 35 | 0.45 |
Certification
CL-FF050SB dc motor CL-FF050SB 7v dc motor dc motor
dc motor micro dc motor electric car dc motor
