Help CenterChaoli CL-1013 Coreless DC Motor
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
chaoli
Model Number:
CL-1013
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CL-RS550 Brush dc Motor for Electric Drill, Air CompressorNegotiableMOQ: 1000 Pieces -
Flat Motor CL-FF130 for rc ToysNegotiableMOQ: 1000 Pieces
-
High Speed CL-1013 Coreless Micro dc Motor for Home ApplianceNegotiableMOQ: 1000 Pieces
-
Helicopter dc Motor, CL-FF180NegotiableMOQ: 1000 Pieces
-
CL-FFK10WA Electrical Micro MotorNegotiableMOQ: 1000 Pieces
Place of Origin
China
Brand Name
chaoli
Model Number
CL-1013
Usage
Boat, Car, Electric Bicycle, Fan, Home Appliance
Certification
ROHS
Type
Micro Motor
Torque
17g.cm
Construction
Permanent Magnet
Commutation
Brush
Protect Feature
Totally Enclosed
Speed(RPM)
28000 rpm/min
Continuous Current(A)
90 mA
Output Power
0.8W
Voltage(V)
3.0V
Efficiency
IE 3
Specifications

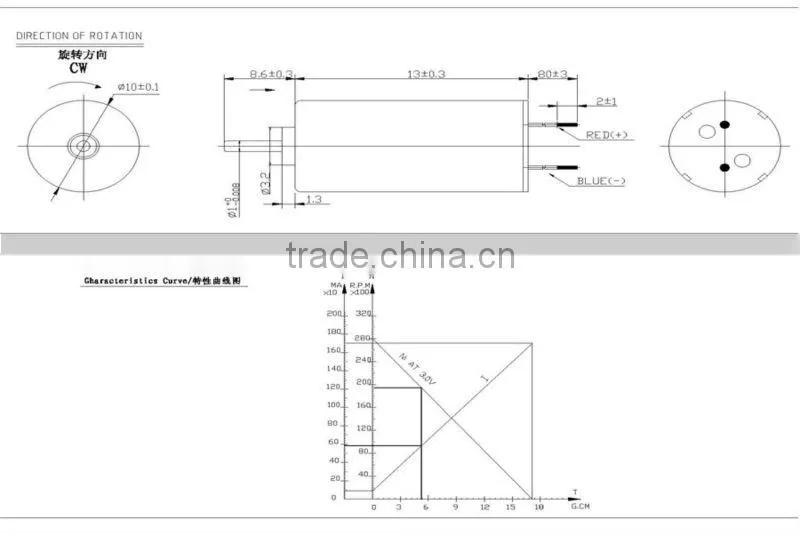

1.Shaft Diameter: 1.0mm2.Length: 21.6mm
3.Voltage range:1.5-4.2V
4.Stall torque:17g.m
5. micro dc motor
Product Description

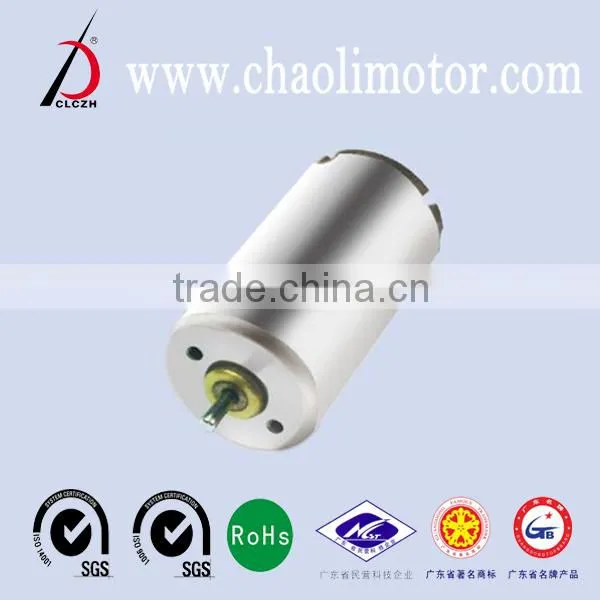

CL-1013 Coreless DC Motor
ODEL |
VOLTAGE |
NO LOAD |
AT MAXIMUM EFFICIENCY |
STALL |
||||||||
OPERATING RANGE |
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
OUTPUT |
TORQUE |
CURRENT |
|||
r/min |
mA |
r/min |
mA |
g.cm |
mN.m |
W |
mN.m |
g.cm |
mA |
|||
CL-1013 |
1.5-4.2v |
3.0v |
28000 |
90 |
1770 |
568 |
5.5 |
0.55 |
0.8 |
1.7 |
17 |
1700 |

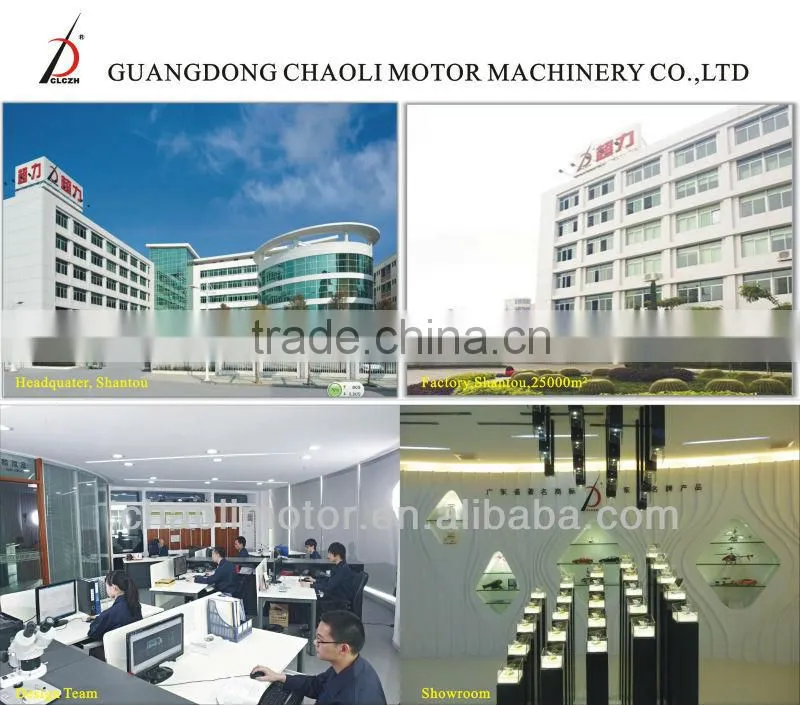

Company Information
