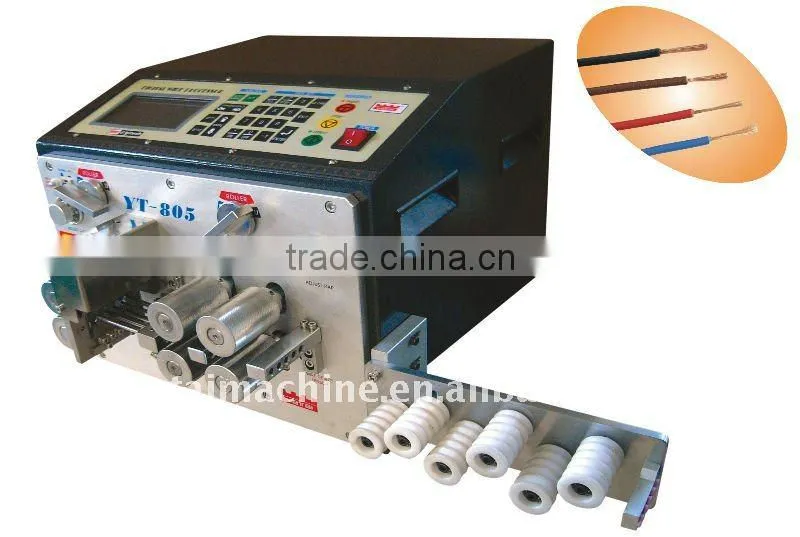

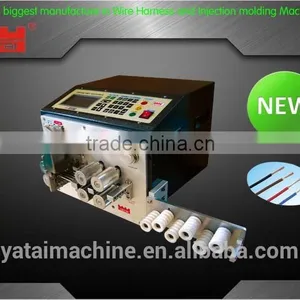

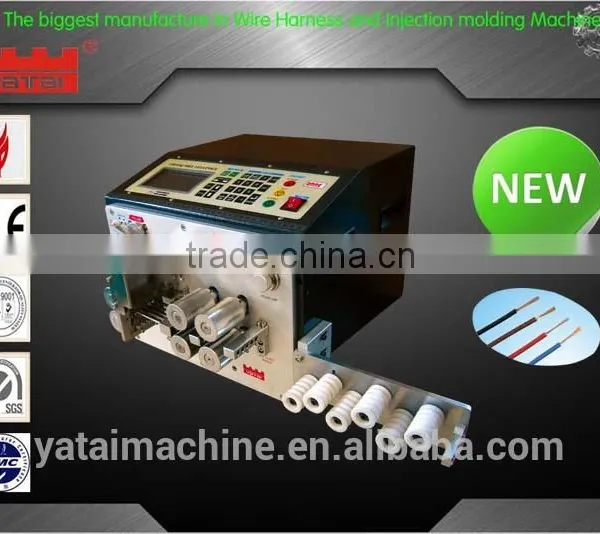

2013 Automatic Wire cutting stripping machine
- 200 Set / Sets per Month
- Zhongshan
- D/P D/A
- Fully automatic double-end single-head inserting machine
- Automatic single-head insert shell single-head dipping machine
- Fully automatic double end terminal inserting machine
- Center wire drawing machine with continuous annealing equipment
- Center wire drawing machine with continuous annealing equipment
- Copper wire drawing machine
Product Details
Place of Origin: | Guangdong, China | Brand Name: | YATAI | Model Number: | YT-805 |
Usage: | Multifunctional |
Product Description
pper wire cutting stripping machine.
2.KM design
3. 5 wire can be stripped in a time .
4. All english operation key board.
Model
YT-805
Main advantage :
1.High efficient machine
2.Taiwan step motor and driver
3.Cutting,stripping by automatic.
4.Economy model
Easy operation drawing:
1.Normal wire (Wire length:55-9999mm) as drawing
The parameters as below :
Program No. 02 Speed 05
Wire length 0100 Quantity produce 0000
Head wire 007 Strip off 004
End wire 005 Strip off 003
Mid stripping 0000 Mid stripping 0000
Mid stripping 0000 Mid stripping 0000
Strip off 0000 Set quantity 1000
Guage 45 Retract blade 05
Notice When you test the machine , if products were no good (Such as damage with wire cord/can’t remove the cover), please amend the number of Guage.
2,Short wire (Wire length:9mm-55mm)
Program No. Speed
Wire length Quantity produce:
Head wire Strip off
End wire Strip off
Mid stripping 0000 Mid stripping 0000
Mid stripping 0000 Mid stripping 0000
Strip off 0000 Set quantity 1000
Guage 0045 Retract blade 0005
Notice:Adjust the pressure one by one , in order to lock the wire between two roller .When you test the machine , if the wires were no good. Amend the number of pressure and guage one by one .
3,Middle stripping as drawing
The parameter as below
Program No. 0099 Speed 0005
Wire length 0500 Quantity produce 0000
Head wire 0003 Strip off 0004
End wire 0004 Strip off 0005
Mid stripping 0100 Mid stripping 0200
Mid stripping 0300 Mid stripping 0400
Mid Strip off 0005 Set quantity 1000
Guage 0045 Retract blade 0045
Notice In this case, the pressure should be more higher than normal wire.if not ,the mid stripping will be too small or can’t move out .It depends on the material hardness.

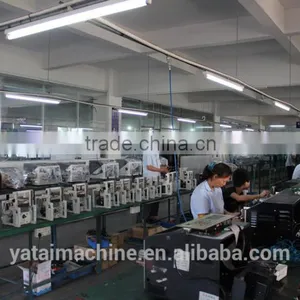

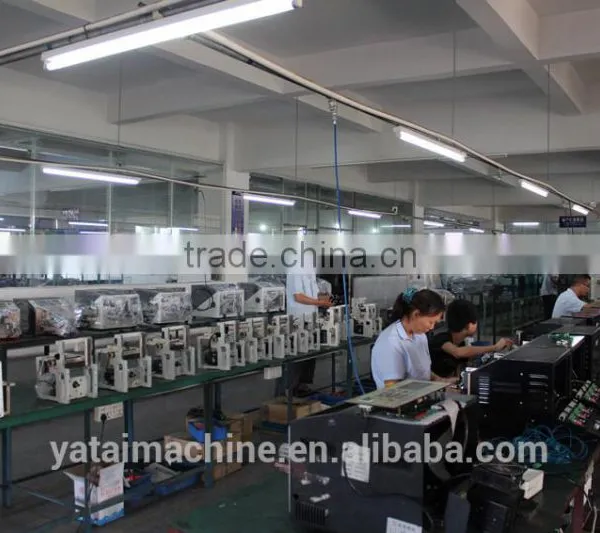

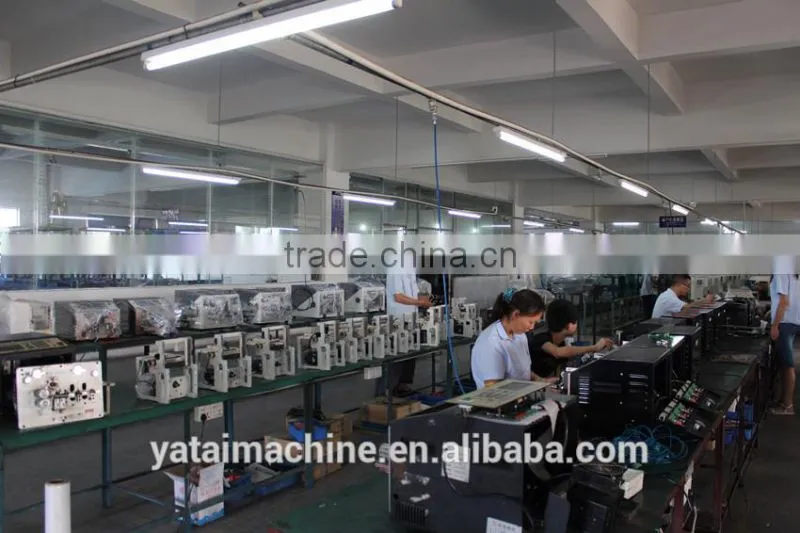

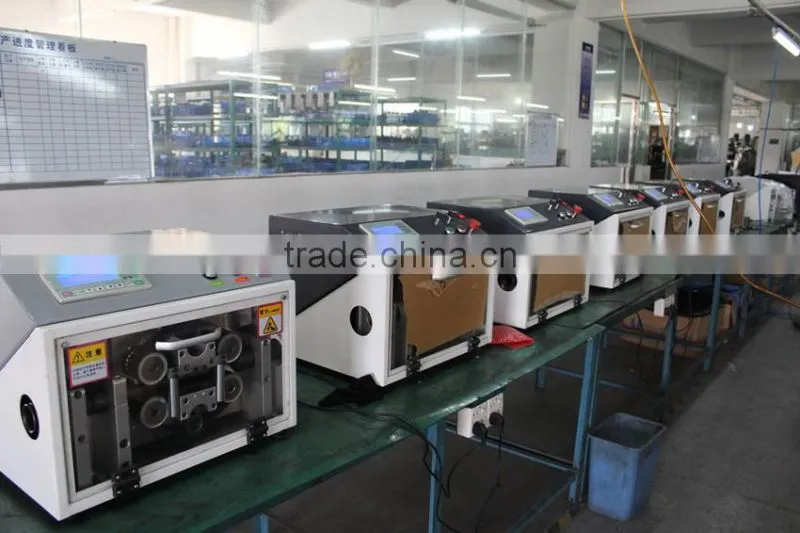

Zhongshan Yatai Machinery co.,ltd is located in Zhongshan City,China.The company has a factory area of more than 25000m2 and 60000m2 branch factory in Dengzhou city. Since it's establishment in 2007 Yatai Machinery has grown to a leading company in Plastic injection moulding machine ,wire harness equipment with customized automatic production line .Since it's establishment in 2007 Yatai Machinery has grown to a leading company in Vertiical Plastic injection molding machine ,Inserting mold production progress update and wire harness equipment.For now, we have 12branch factory in CHINA and more than 30 researcher .There are electrical engineer,hydraulic engineer ,program engineer,mechanical engineer ..etc . Our R&D team are good at the latest MDT, CAD, SOLIDWORKS and other well-known design software. Due to the three-dimensional parametric modeling, application of standard parts library and mechanical structure simulation, analysis of the main components of the high pressure zone, the distribution of pressure, peak pressure, finite element analysis is ready to risk area were calculated. To help designers to quickly understand, assess, and modify the design scheme, to ensure optimal design and reliability of important parts.From 2007 to 2014. Yatai group has more than 185 items of Patents and lots of inspection equipment to make sure each machine and parts under the QC control.Yatai has carried out industry-university research cooperation with HUST,SCUT,NUAA etc. Special in Project “Stirling solar engine” with NUAA UNIVERSITY and”full automatic cutting,stripping,crimping machine” with SCUT university .In the project development stage, the company has passed exam of the German TUV RHEINLAND certification, the European electrical safety standard CE and ISO9001 international quality management system certification. And obtained the accreditation of national "high-tech enterprises" which is only one in Zhongshan. Welcome to view website at :
1) Can I order in 1unit ?
Of course you can
2) Can i be a agent in my market ?
We need talk details about agent agreement .
3)Did you have CE certificate ?
Yes, we have.
4) How long year you do this machine
our factory start this equipment making since 1992.
5)what's your website ?
is official one .
6) How i can talk with you online ?
QQ&wechat Number :251926058
what's app Number:+86-18664939871
Skype ID: jeapear
7) I'm alone, I just want chat with some guy from China .
Errrrr. Fine , what's thing you want know about China ?
8) I saw you have lots of molding machine and wire harness machine.Are you a trade company ?
No. We are manufacturer. We have two important department .One is wire harness equipment in automatic design , the other one is injection molding machine .
Size | 510X485X350mm | Weight | 50kg | Power | 230 | Voltage | AC220V~ 50Hz | Stripping length | 0-30mm(both ends) | Cutting Length | 0.2-99999mm | Cutting Tolerances | ±(0.2+0.002xL)mm | Wire Type | PVC,Teflon,fiberglass | Wire Size | 0.3-1.0mm2 | Processing Capacity | 25000pcs/Hour (5pcs/one time) | Air pressure | 0.3-0.5Mpa |
