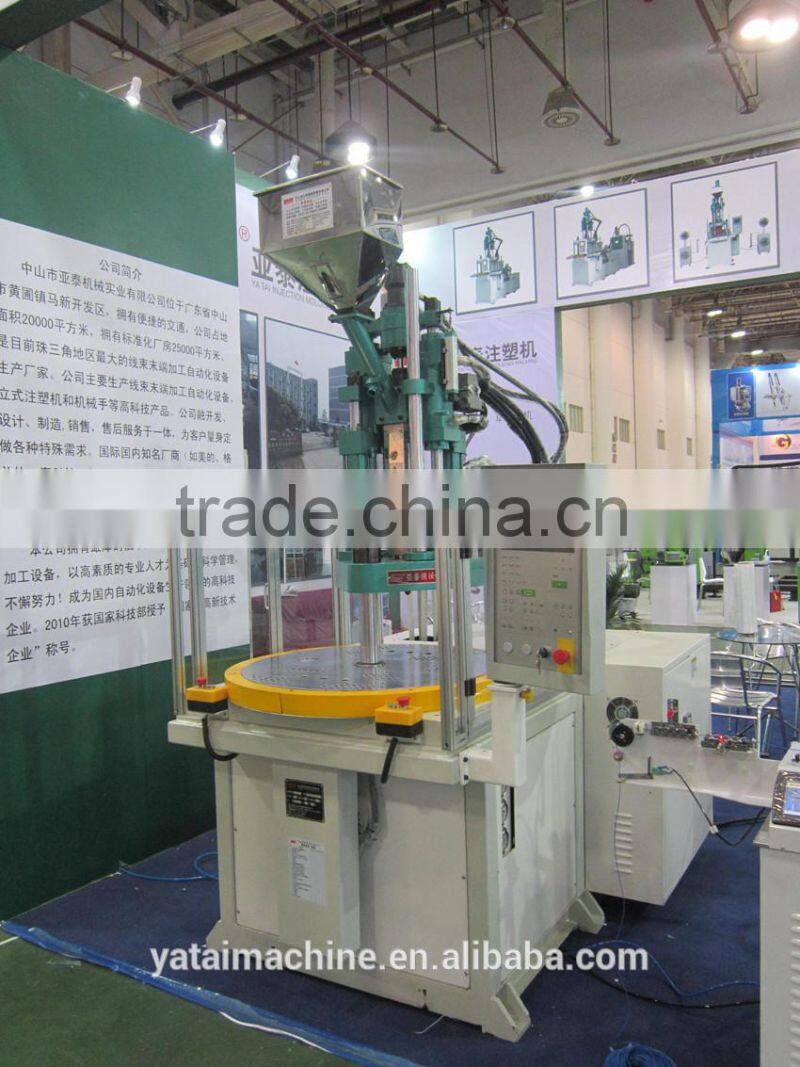

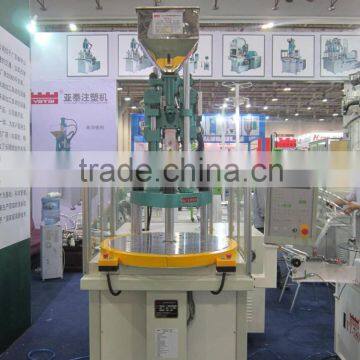

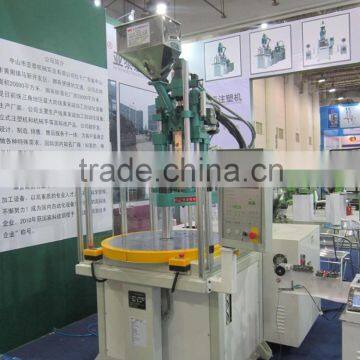

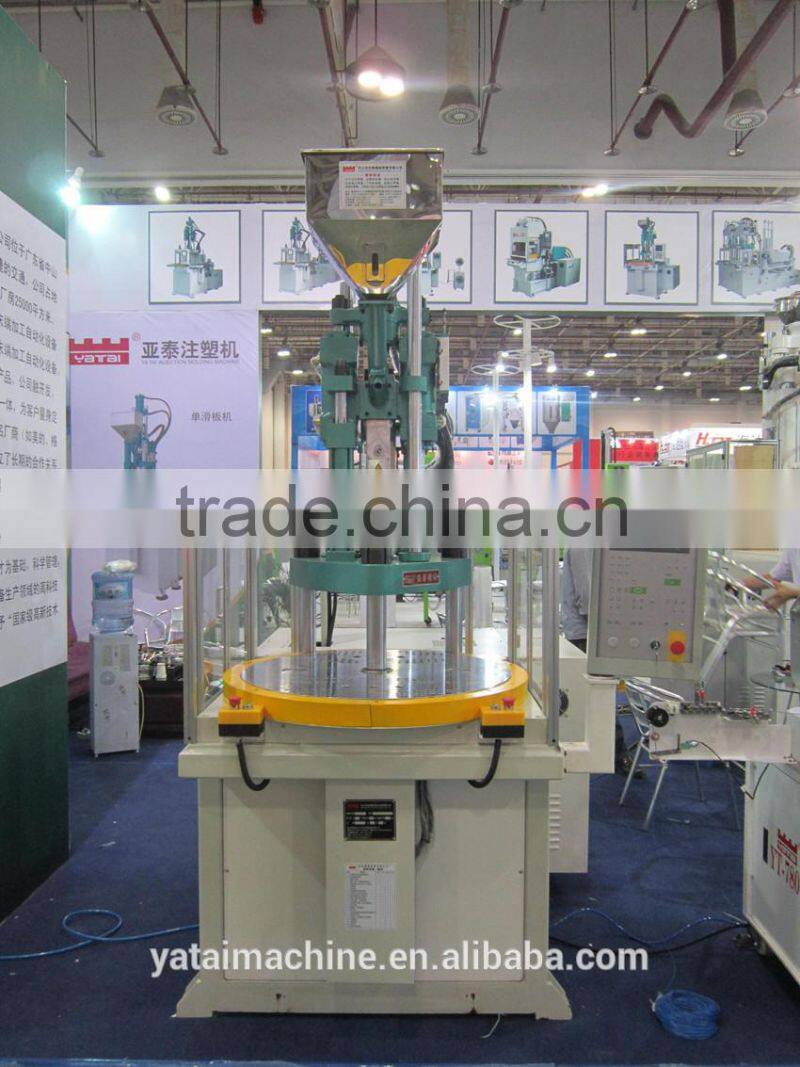

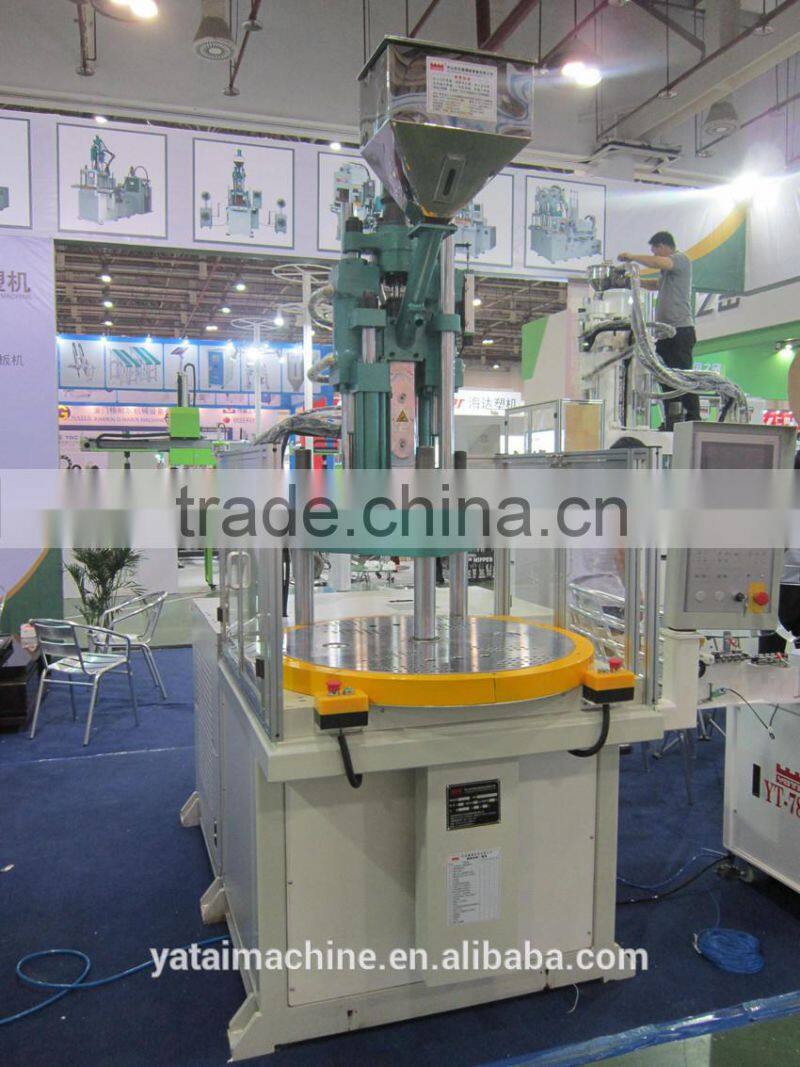

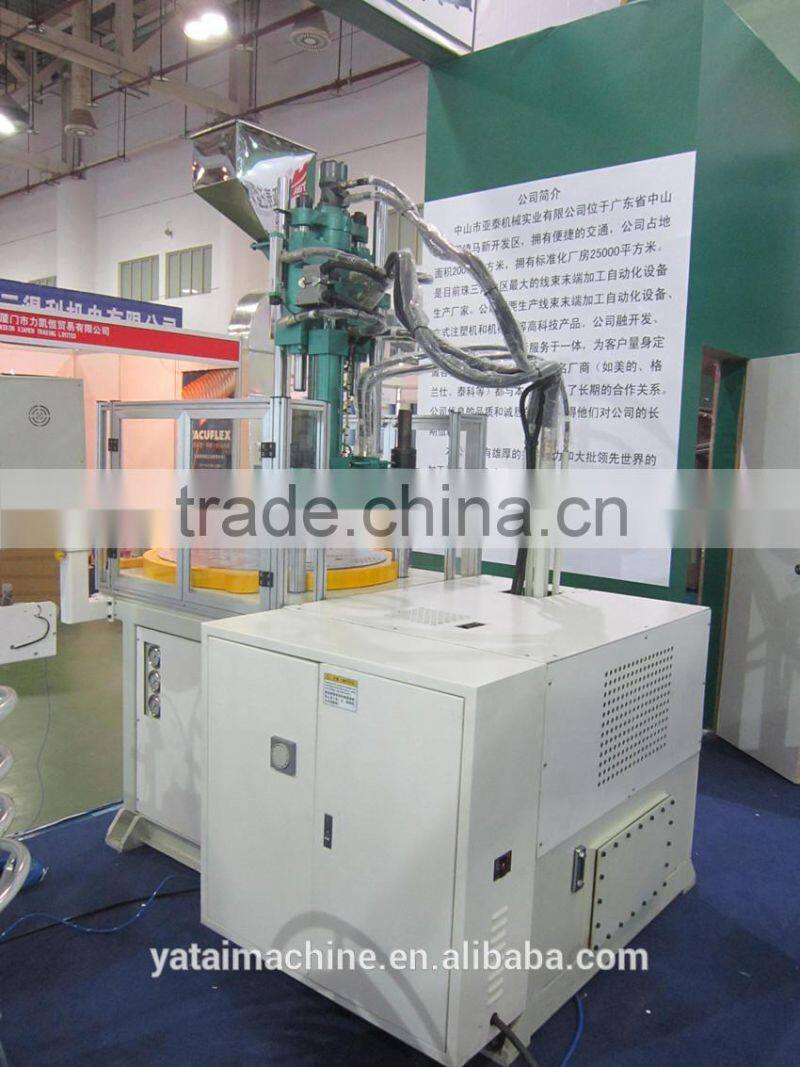

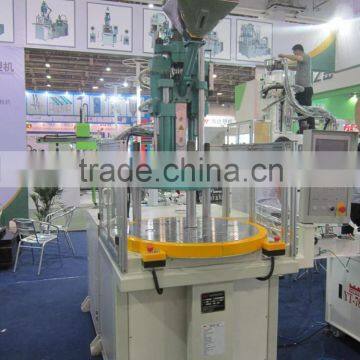

Home > Manufacturing & Processing Machinery > Plastic Machinery > Injection Molding Machine > 2 Stations Rotary Injection Molding Machine
US$ 1 - 33,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Preform Injection
Style:
Vertical
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhongshan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PVC Injection Molding MachineUS$ 1 - 8,000MOQ: 1 Set -
Beach Table Top Injection Molding MachineUS$ 1 - 8,000MOQ: 1 Set
-
Socket Plug Verticaal Injection MachineUS$ 1 - 8,000MOQ: 1 Set
-
Vertical 2 Station Plastic Injection Molding MachineUS$ 1 - 40,000MOQ: 1 Set
-
15ton Injection Molding MachineUS$ 3,200 - 3,300MOQ: 1 Set
Condition
New
Type
Preform Injection
Style
Vertical
Brand Name
Yatai
Model Number
V85R2
Place of Origin
Guangdong, China
Plastic Type
Thermosetting
Automatic
Yes
Injection Weight
106-164g
Injection Rate
86-134cm3/s
Clamping Force
85ton, 85ton
Opening Stroke
480mm
Power(W)
21.4KW
Certification
ISO9001,CE
After-sales Service Provided
Overseas service center available
Specifications

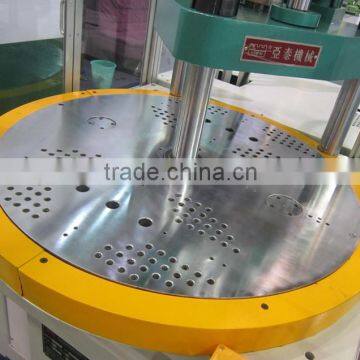

1.Rotary table.2 stations2.Servo motor drive
3.KEBA control system form Italy
Product Description
| Model No. | V85R2 | |||||
Injection Unit | Screw Diameter | mm | 32 | 36 | 40 | |
| Theoretical Injection Volume | cm3 | 113 | 142 | 176 | ||
| Injection Weight(PS) | g(oz) | 105(3.7) | 132(4.6) | 164(5.8) | ||
| Max.Injection Pressure | Mpa(kgf/cm2) | 229(2331) | 181(1842) | 146(1492) | ||
| Injection Rate | cm3/s | 86 | 109 | 134 | ||
| Injection Speed | mm/s | 107(138) | ||||
| Screw Speed Rotation | r.p.m | 0-300 | ||||
| Nozzle Out From Platens | mm | ≥45 | ||||
Clamping Unit | Clamping Force | KN(tf) | 833(85) | |||
| Clamping Stroke | mm | 250 | ||||
| Min.Mold Thickness | mm | 230(330) | ||||
| Max.Opening | mm | 480(580) | ||||
| Distance Between Tie Bars | mm | |||||
| Max.Mould Size | mm | 340*340 | ||||
| Platen/Slide Size | mm | 980 | ||||
| Ejector Distance | mm | 100 | ||||
| Ejector Force | KN(tf) | 45(4.6) | ||||
| Others | System Pressure | Mpa(kgf/cm2) | 13.7(140) | |||
| Oil Tank Capacity | L | 310 | ||||
| Electric Power | KW(HP) | 15(20) | ||||
| Heater Power | KW | 6.4 | ||||
| Machine Dimensions | L*W | mm | 2145*1772 | |||
| H | mm | 2760(3500) | ||||
| Machine Weight | tf | 4.2 | ||||
Packaging & Shipping
1. We will arrange to manufacture the second day after confirmation,we can delivery it usually after 40days
2. According to the destination,we will compare several transportation companies and select the most suitable and economic one to provide service for us
Our Services
1. Provide free guidance before you start using our rotary table injection molding machine
2. 1 year warranty
3. Free remote guidance by video chat when you have problem during use the rotary table injection molding machine
