Hot Sell Laminating Machine SAFM-800A

SAFM-800A Fully Automatic Laminating Machine

Applications:

It is used for the lamination pre-glued film and paper.

Configuration:

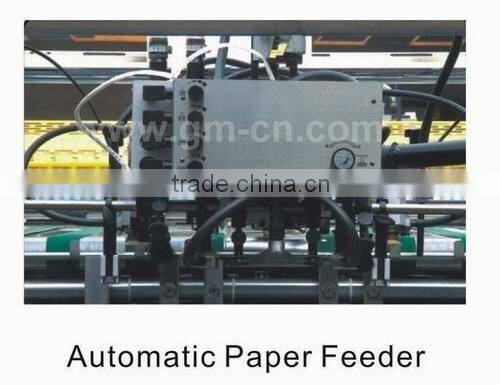

1. Automatic paper feeder adopts oil-free vacuum pump to feed paper automatically.

2. Automatic paper feeding system is equipped with no paper protector and paper break protector, which are controlled by photoelectric and mechanical systems. When no paper or paper break occurs, the machine will stop automatically for self-protection.

3. Conveying table is furnished with air aspirator and front lay etc. to guarantee paper conveying and overlap stable and regular.

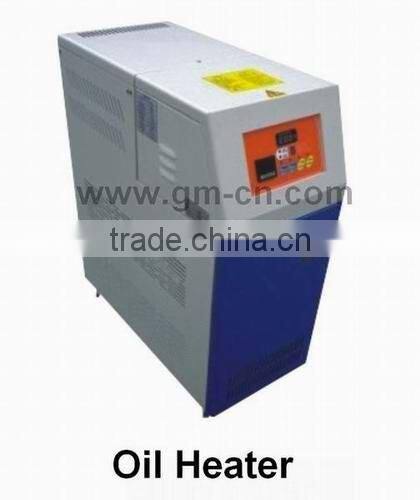

4. High precision of chrome plated heating roller is equipped with oil circulation heating system, which has excellent performance to temperature control. The laminating temperature is adjustable upon applications.

5. Pneumatic pressuring system provides automatically steady pressure to guarantee good laminating quality. The pressure is adjustable upon applications.

6. Air expansion shaft releases film, and precisionizes film release, and also makes the loading and unloading of film roll more convenient.

7. The combination of air expansion shaft and braking device can adjust film release tension and speed.

8. Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.

9. Film perforating wheel perforates film edge for the automatic cut of laminated paper.

10. Anti-curvature device: when going though the anti-curvature device, the laminated paper shall be leveled at once and wont curve again after cut.

11. Pneumatic cutting system realizes automatic paper cut.

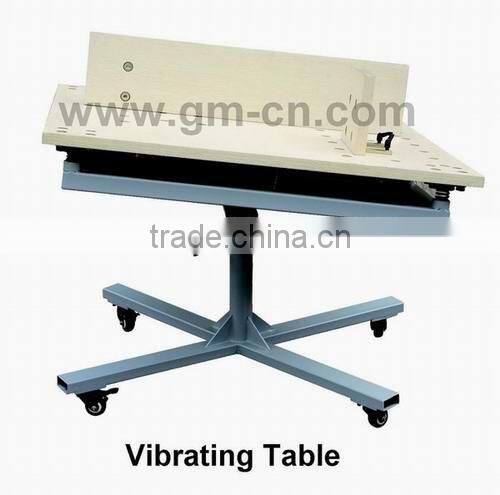

12. Vibration receiving table: cut paper is sent to vibration receiving table, and will be stacked and tidied up automatically.

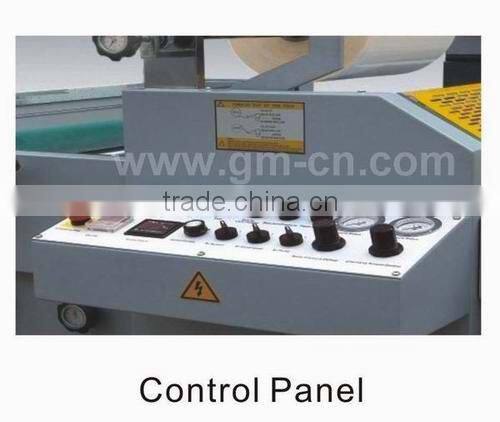

13. The machine's control panel as bellow:

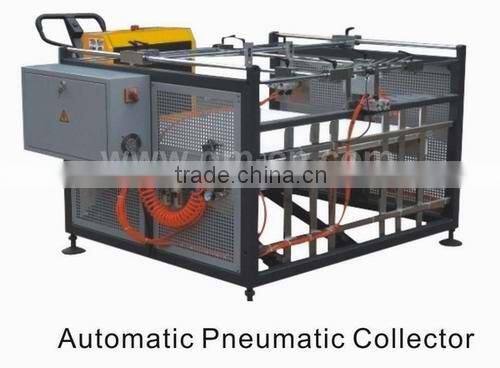

14. Upon the user's request, the vibration receiving table can be replaced by automatic pneumatic collector.

Technical Parameters:
