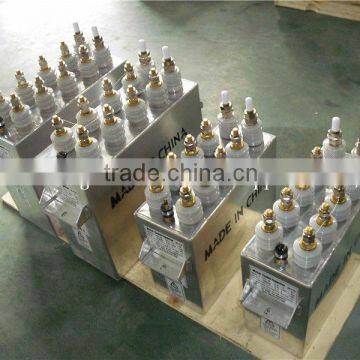

Product: Induction Melting Furnace Capacitor
Application: Widely used in power electric and electronic systems for DC supporting or filtering
Technical performance
1. Comply with Standards: JB/T8168 Pulse capacitors and direct current capacitors
2. Resistance to pressure: (Pole to pole and pole to case) 1.4UN/DC 10s
3. Capacitance Deviation:-5%~+10%
4. Capacitance tangent of the loss angle: tgδ≤0.0015.
5. Overload: It can operate under the current of 1000A continuously.
Service condition
1. Altitude less than 1000m;
2. Ambient temperature: -25°C~+45°C
3. Inlet pressure of cooling water is not exceeding 0.3MPa, input temperature is not exceeding 30°C, and rate-of-flow is no more than 6L per min. Cooling water should be soft water without impurities, PH value should be 6 ~ 9.
Specification:
|
No. |
Type |
Rated |
Groups |
(mm) Dimensions |
Weight (kg) |
Fig.No. |
||||||
|
Voltage (kV) |
Capacitance (μF) |
L | W | h | H | |||||||
| 01 | DZMJ | 0.65-1200 | S | 0.65 | 1200 | 1 | 320 | 140 | 375 | 479 | 22 | |
| 02 | DZMJ | 0.75-300 | S | 0.75 | 300 | 4 | 220 | 150 | 220 | 324 | 12 | |
| 03 | DZMJ | 0.86-1200 | S | 0.86 | 1200 | 1 | 320 | 140 | 370 | 474 | 22 | |
| 04 | DZMJ | 0.86-1600 | S | 0.86 | 1600 | 1 | 320 | 140 | 475 | 579 | 28 | |
| 05 | DZMJ | 0.86-3200 | S | 0.86 | 3200 | 1 | 440 | 140 | 675 | 779 | 51 | |
| 06 | DZMJ | 0.8-960 | S | 0.8 | 960 | 1 | 320 | 140 | 320 | 424 | 19 | |
| 07 | DZMJ | 1.2-1850 | S | 1.2 | 1850 | 1 | 440 | 140 | 575 | 679 | 44 | |
| 08 | DZMJ | 1.3-2400 | S | 1.3 | 2400 | 1 | 440 | 140 | 700 | 804 | 52 | |
*We can also request customized according to your parameters.
