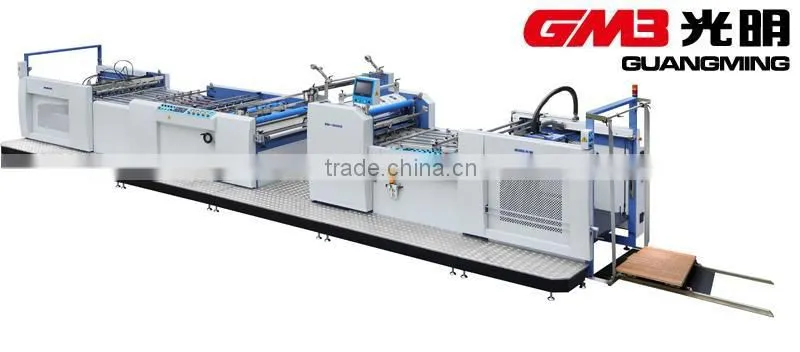

High-speed SW-1050G Automatic Laminator Machine
Features:

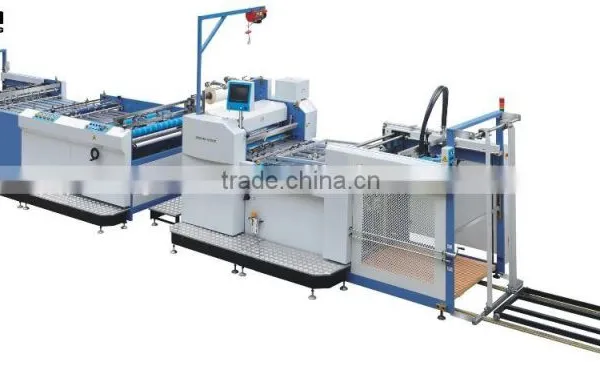

SW-1050G automatic high speed laminator is newly developed for the lamination of pre-glued film
and paper. It is fast and efficient machine,max speed can be reach 120m/min.The machine realizes
complete automation to paper feeding system, separating system ,man-machine interface system,paper collecting and electromagnetic heater.
Applications:
It suits for pre-glued film . It is widely used for magazines, paper,books, and packs for food,
medicine, cosmetics and so on.
Working Process:

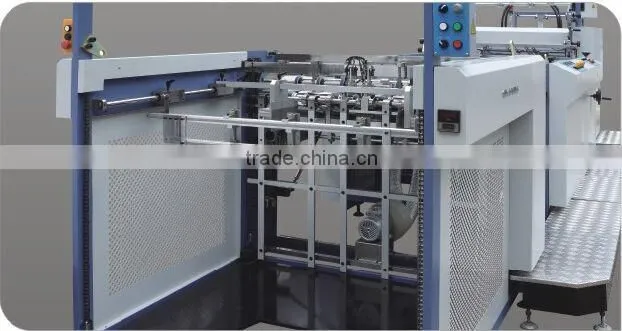

Automatic Paper Feeder (Paper feeding system):
Equipped with paper pre-stacker,servo controlled feeder and paper miss senor protector to guarantee the sequence of paper feeding .

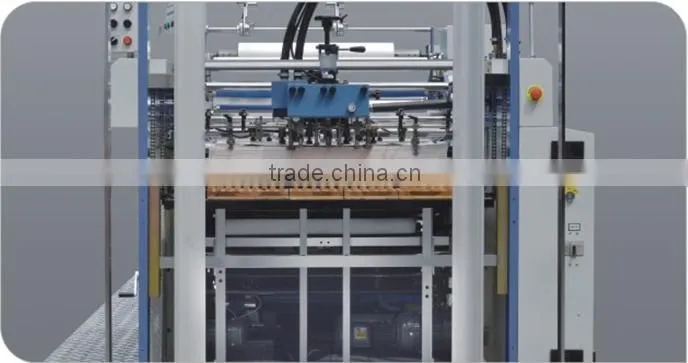

Separating System:
Equipped with flying knife,pneumatic perorating device and photoelectrical detector to separate the paper according to paper size quickly.

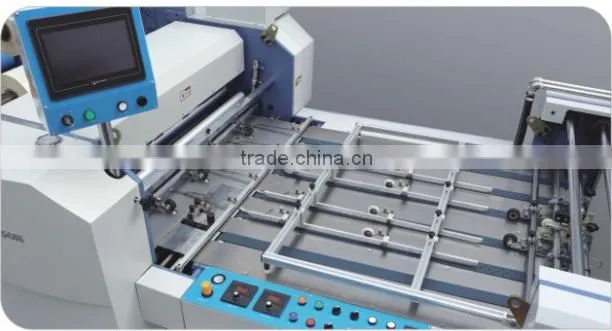

Man-Machine Interface System:
Color screen make the operation easy and convenient.Operator can check the status of machie on the color screen.

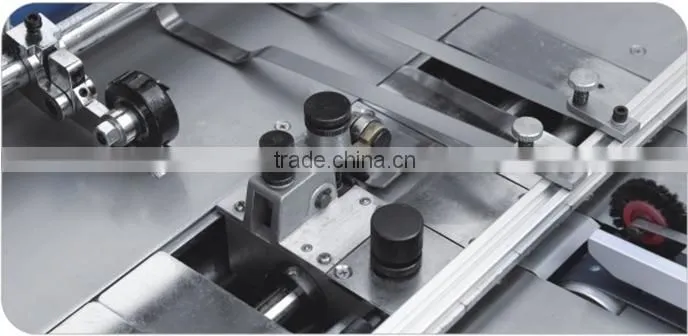

Side Lay Regulator:
Servo control and side lay to gurantee alignment of paper from side.

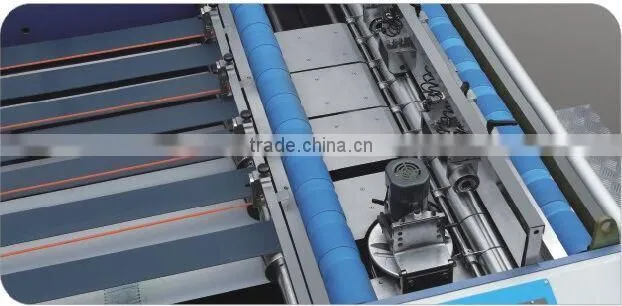

Automatic Stacker:
Automatic stacker receive the sheets quickly in order without stop the machine as well as counter the sheets.
Electronmagnetic Heater
Equip with advanced electronmagnetic heater,fast pre-heating .Energy saving.Environmental protection .
Configuration:
- Overlapping regulator :Servo control and front lay to gurantee accuracy of paper overlaping.

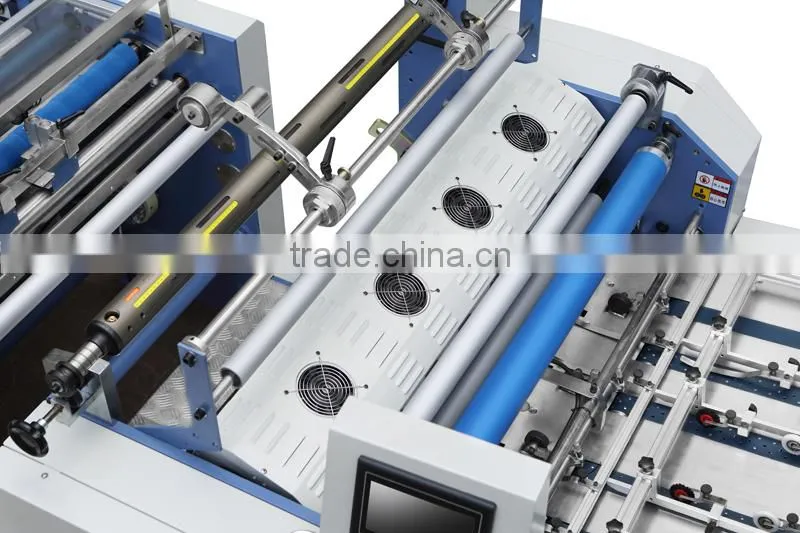

- Smart constant temperature heating roller: built-in oil heater,temperature measuring sensor and temperature stable and constant.
- Film shaft:Air shaft with dividing rule make the loading ,unloading and postioning of the film more accurate.The extension of film is controlled by pneumatic breaker.
- Electrical system:Schneider PLC inverter Ormon and other international brand parts make the machine run smoothly,easy adjust.
Technical Parameters:
| Model | SW-1050G |
| Max paper size | 1050*1250mm |
| Min paper size | 350*350mm |
| Paper thickness | 105*500g/m2 |
| Laminating Speed | 0-120m/min |
| Gross Power | 28kw |
| Total weight | 5000kg |
| Overall Dimensions | 11400*2400*1900mm |

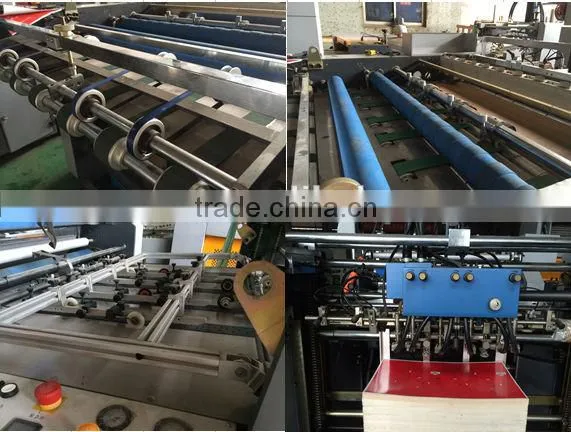

Machine:
Office:
Certificates:
Our Service:
1.Presale: product consultation and solution design can be provided.
2.Sale: spares parts can be provided at a certain discount.
3. After sale: We offer a 1-year warranty which includes maintenance and technical support for all the products. Within the warranty period, exchanges and free maintenance are provided. If any quality issues occur, please contact us for technical support via telephone, email, or any method available on our site.
If you have any questions,pls feel free to contact me .We will give you our best service.Hope we can have a chance to do business!
Welcome to visit our factoty !
- Contact:George Cang
- Mobile Phone:0086-13868825033
- Telephone:0086-577-86532992
- Fax:0086-577-86537366
- Skype:cangyihong whatsapp: 0086-13868825033 wecat:0086 18621906195
- Factory: Wenzhou Guangming Printing Machinery Co.,Ltd.
- Address:No. 105 Simingshan Road, Wenzhou Economic Technology Development Zone,Wenzhou,Zhejiang,China
- Zip:325011
