SADF-540 pre-glued film Fully Automatic Laminating sheets Machine
- 500 Set / Sets per Month
- Ningbo or Shanghai
- T/T
- Single-ended carbon fiber heat lamps 500mm 800w infrared heat lamps
- 1300w 670mm far infrared heat lamp frosted carbon fiber heat lamps
- 220v 1300w 670mm infrared carbon fiber heating lamp frosted carbon fiber heat lamps
- 400mm 600w infrared quartz lamp replacement carbon fibre heating lamp
- 400mm 600w infrared quartz heating element carbon fiber quartz tubes
- 230v 1200w infrared paint lamp infrared carbon fiber heating lamp for DTF machines
Product Details
Condition: | New | Application: | Apparel, Chemical, Commodity, Food | Packaging Type: | Case |
Packaging Material: | Wood | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 380V, customized | Power: | 15kw | Place of Origin: | Zhejiang, China |
Brand Name: | GUANGMING | Model Number: | SADF-540 | Dimension(L*W*H): | 3300x1250x1600mm |
Weight: | 1000kg | Certification: | CE ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
SADF-540 pre-glued film Fully Automatic Laminating sheets Machine
Applications:
It suits for pre-glued film only that is widely used for magazines, books, and packs for food,
medicine, cosmetics and so on.
Features:
SADF-540 is one of our fully automatic laminators newly developed upon market
needs. The most attractive features of the machine are compact structure and
humanized design. SCHNEIDER, OMRON etc international brands of electrical and photovoltaic parts equipped perfect the running stability and safety of the laminator.
The machine realizes automated operation, and suits two kinds of film, preglued film and glueless film for
paper lamination.For the laminating treatment of greeting cards, certificates, documents, book covers, packingboxes etc, this model is an excellent choice.
Working Process:
Automatic paper feeder(with no pre-stacker) ------- Laminating unit (heating and pressure roller)---- through perforating wheel (or winded directly) ----separating system-------vibrating receiving table
Configuration:
1. Automatic paper feeder adopts oil-free vacuum pump to feed paper automatically.
2. Automatic paper feeding system is equipped with no paper protector and paper break protector, which are controlled by photoelectric and mechanical systems. When no paper or paper break occurs, the machine will stop automatically for self-protection.
3. Man-machine interface system: color touch screen simplifies the machine operation. On the touch screen, as long as the operator inputs paper size, overlap length and working speed etc., the machine can realize completely automated operation. And on touch screen, working status of the machine can be checked at any time.
4. High precision of chrome plated heating roller is equipped with built-in oil heating system, which has excellent performance to temperature control. The laminating temperature is adjustable upon applications.
5. Pneumatic pressuring system provides automatically stable pressure to guarantee good laminating quality. And the pressure can also be adjusted upon requests.
6. Air expansion shaft releases film roll, and positions film roll more accurately, and also makes the loading and unloading of film roll more convenient.
7. The combination of air expansion shaft and braking device can adjust film release tension and speed.
8. Film cutter cuts film width to make it meet paper size.
9. Serrated perforating wheel perforates film edge for the automatic cut of laminated paper.
10. Anti-curvature device: when going though the anti-curvature device, the laminated paper shall be leveled at once and won’t curve again after cut.
11. Pneumatic cutting system realizes automatic paper cut.
12. After cut, the laminated paper will be sent automatically to vibrating receiving table and be put into order.
Technical Parameters:
Model No. | SADF-540 |
Max. Paper Size | 540×780mm |
Min. Paper Size | 290×290mm |
Paper Thickness | 100-500gsm |
Laminating Speed | 0-30m/min |
Gross Power | 15kw |
Overall Dimensions | 3300×1250×1600mm |
Weight | 1000kgs |

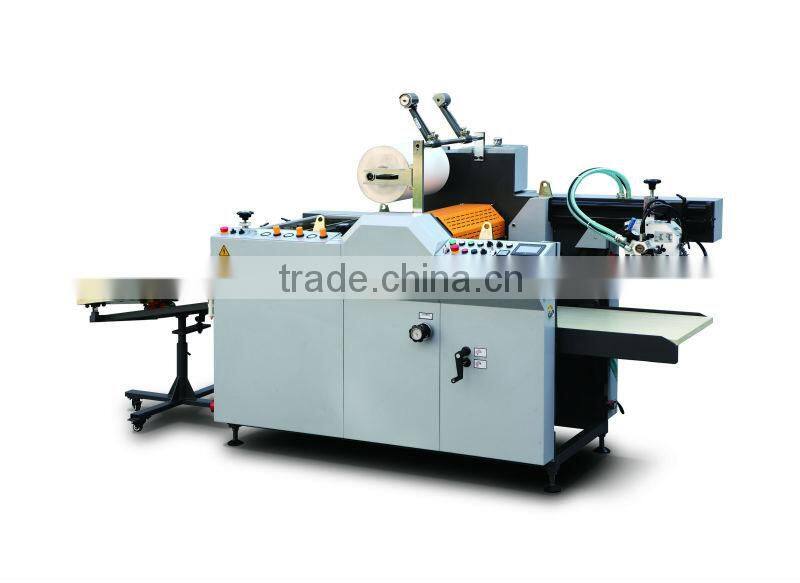

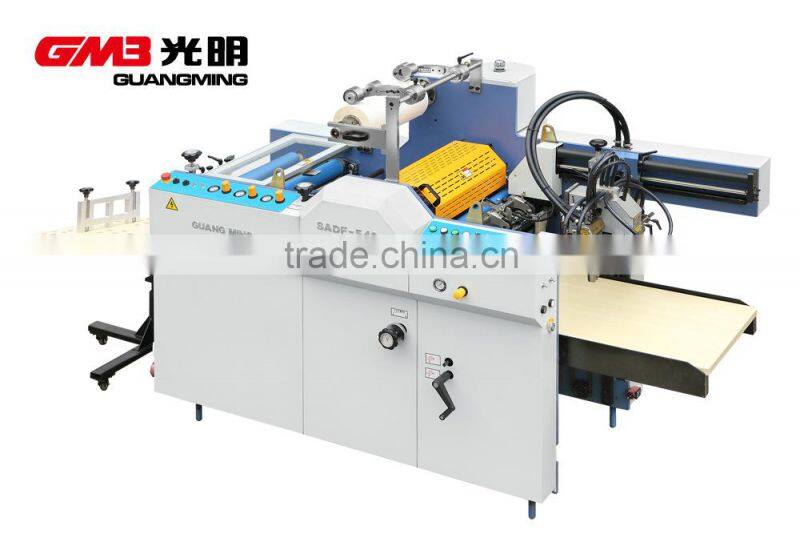

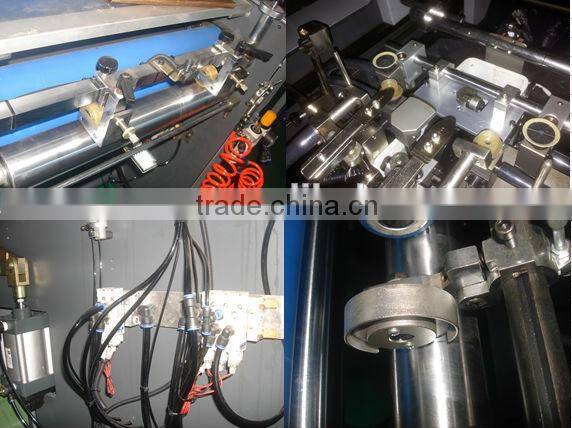

Machine:

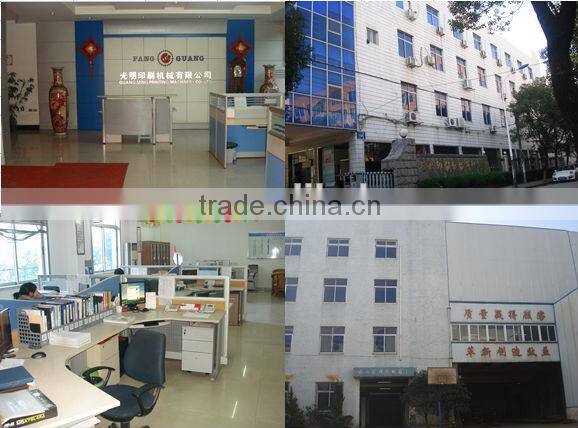

Office:
Certificates:
Our Service:
1.Presale: product consultation and solution design can be provided.
2.Sale: spares parts can be provided at a certain discount.
3. After sale: We offer a 1-year warranty which includes maintenance and technical support for all the products. Within the warranty period, exchanges and free maintenance are provided. If any quality issues occur, please contact us for technical support via telephone, email, or any method available on our site.
- Contact:George Cang
- Mobile Phone:0086-13868825033
- Telephone:0086-577-86532992
- Fax:0086-577-86537366
- Skype:cangyihong whatsapp: 0086-13868825033 wecat:0086 18621906195
- Factory: Wenzhou Guangming Printing Machinery Co.,Ltd.
- Address:No. 105 Simingshan Road, Wenzhou Economic Technology Development Zone,Wenzhou,Zhejiang,China
- Zip:325011
If you have any questions,pls feel free to contact me .We will give you our best service.Hope we can have a chance to do business!
Welcome to visit our factoty !
