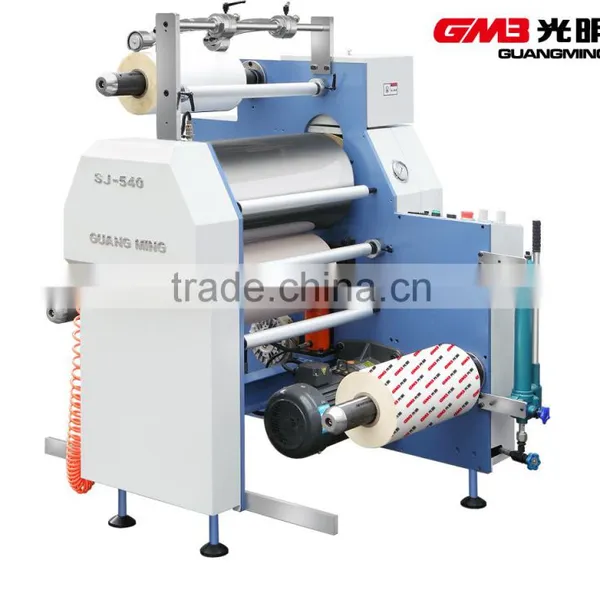

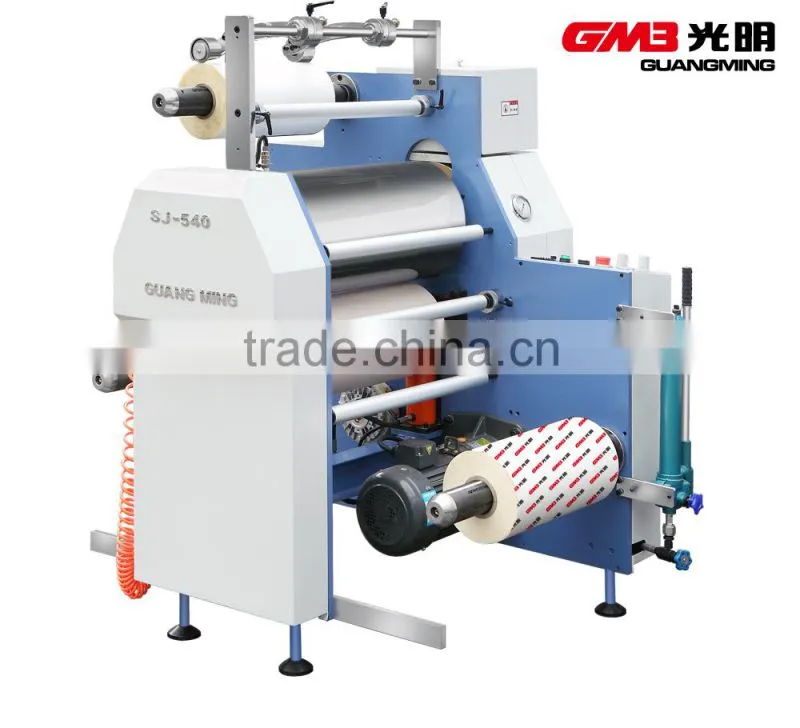

SJ-540 Roll to Roll laminating machine
Quick Details
- Condition: New
- Type: laminating machine
- Automatic Grade: Semi-Automatic
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: guangming
- Model Number: SJ-540
- Power(W): 15kw
- Dimension(L*W*H): 1350*1300*1550mm
- Weight: 820kgs

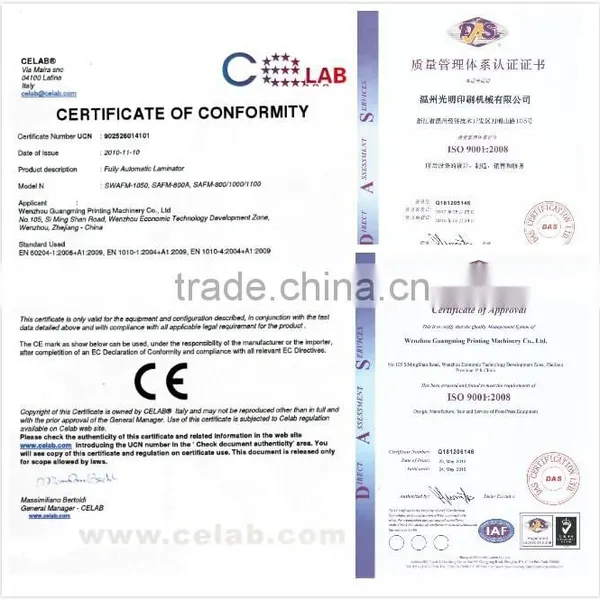

- Certification: CE Certificate
- Warranty: One Year
- After-sales Service Provided: Engineers available to service machinery overseas
Packaging & Delivery
| Packaging Details: | wooden case |
|---|---|
| Delivery Detail: | 7 working days |
Features:
SJ-540 Roll to Roll laminating machine is a small laminator that is designed and manufactured upon the
market needs. The machine is a good assistant for label printing.
Applications:
It suits for only pre-glued film lamination. It is widely used for label, magazines, books, and packs for
food, medicine, cosmetics and so on.
Working Process:
1) Manual paper feeding table
2) Laminating unit (heating and pressure roller)
3) Through perforating wheel (or winded directly)
Configuration:
1. Suits roll to roll laminating.
2. Equipped with oil built-in heating system, saving energy and consistance of temperature.
3. Equipped bigger roller,laminating quicker.
4. Oil pressuring system gurantees laminating quality.
5. The air expansion shaft with dividing rule makes operation of feeding paper, collecting paper and loading and uploading of film easier.
Technical Parameters
Model No. |
SJ-540 |
Max. Laminating Width |
540mm |
Laminating Temperature |
60-120°C |
Paper Thickness |
80-500g |
Max. Laminating Speed |
0-50m/min |
Gross Power |
15kw |
Total Weight |
820kgs |
Overall Dimensions |
1350×1300×1550mm |
