Application
• Widely used indoor/outdoor advertising sign, channel letter & signs with non-waterproof requirements
• Ideal for small channel letter & lighting box with depth about 5-10cm.
• Edge lighting of transparent diffused materials
• large area back lighting
• Emergency / rescue signs
Feature
• Each module contain 3 5050 SMD LEDs. Has 160° wide viewing angle
• High intensity of each module, suitable for big & medium-sized LOGO & signage
• Perfect heat diffusion could prolong chips' lifespan
• each strip is not more than 30 pieces if series connection is adopted
• with hole on both ends, can be fixed by screw
• Input:DC12V
• IP rate:IP65
• lifespan:50,000hrs
| Product Name: | high brightness 3 5050 12 volt leds lights for advertisement |
| Part No.: | OP-5LSM7416-3* |
| LED Type: | 5050 SMD |
| LED Qty: | 3 PCS |
| Input Voltage: | DC12V |
| Power: | 0.72W |

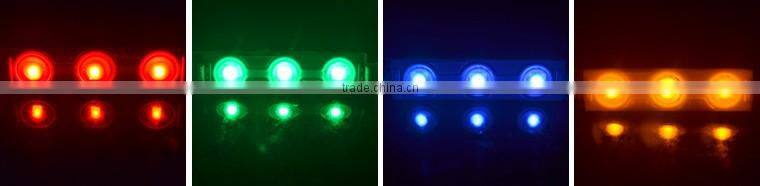

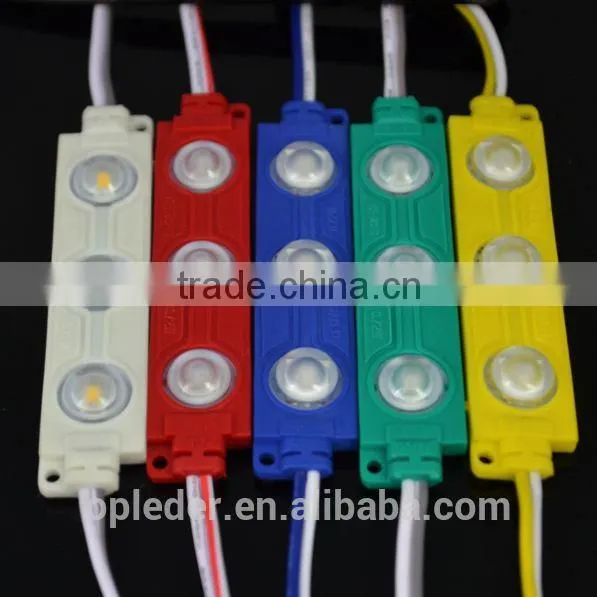

| Emitting Color: | red/green/blue/yellow/white |
| Brightness (LM): | RBY:20~25LM; GW:60~65LM |
| IP rate: | IP65 |
| Material: | Anti-static,Anti-UV,PVC+PC lens |
| Wire: | 20AWG |
| Shell material: | PVC plastic |
| viewing angle | 160 ° |
| Working Temperature: | -20℃ ~ +60℃ |
| Storage Temperature: | -30℃ ~ +60℃ |
| Life time: | 50000hrs |
| Storage Environment: | Indoor ventilation, Air should be no corrosive gas, and avoid direct sunlight |
Install method:
Accessories you might to use during installation:
1. LED Power supply
2. LED controller and amplifier:
3. Fast connection for AC wire and DC wire:
| Packing | 100pcs/innerbag,1000pcs/carton |
| Weight | 11.5kg/carton |
| Carton size | 46*30*30cm |
