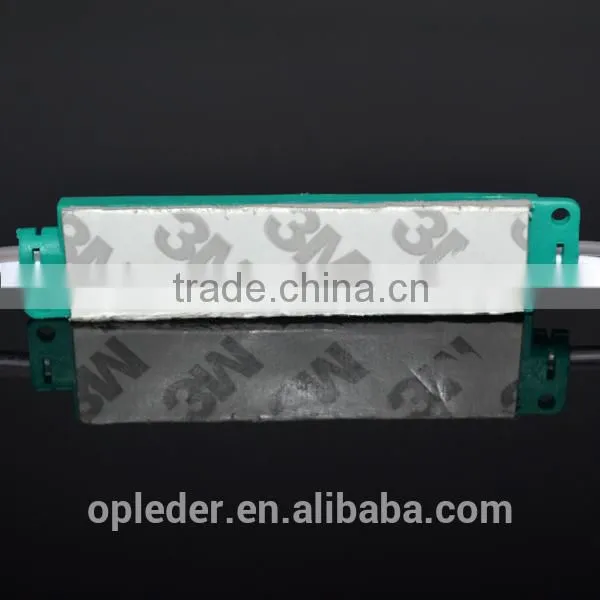

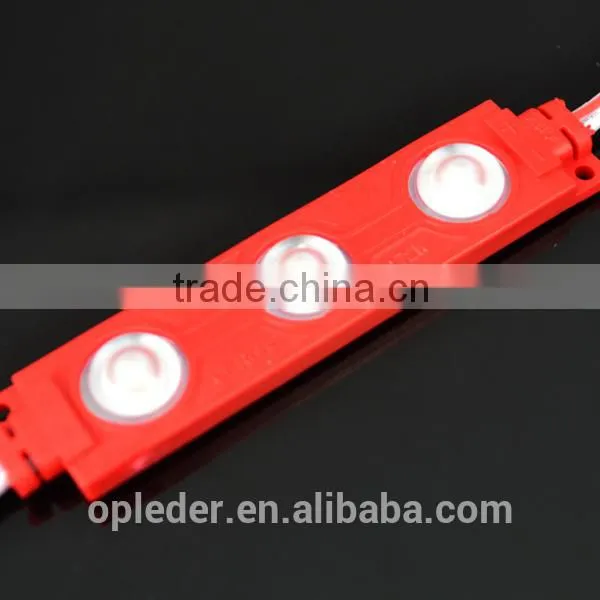

High Brightness 3 5050 12 Volt Leds Lights for Advertisement
US$ 0.28 - 0.3
MOQ: 5000 Pieces
Key Specifications
Get Latest Price
Model Number:
OP-5LSM7416-3*
Chip Material:
InGaN
Emitting Color:
Other, red/green/blue/yellow/white
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Dc12v Waterproof 3 5050 Led Light for Channel LettersUS$ 0.28 - 0.3MOQ: 3000 Pieces -
Shenzhen Factory 3 5050 12v Led Light With 3 Years WarrantyUS$ 0.28 - 0.30MOQ: 3000 Pieces
-
Dc12v IP65 3 5050 Led Lights Made in ChinaUS$ 0.28 - 0.3MOQ: 3000 Pieces
-
Shenzhen Factory CE ROHS 3 5050 Led Lights ModuleUS$ 0.28 - 0.30MOQ: 3000 Pieces
-
3 Yeas Warranty 3 5050 Led Lighting Made In ChinaUS$ 0.1 - 0.3MOQ: 5000 Pieces
Model Number
OP-5LSM7416-3*
Chip Material
InGaN
Emitting Color
Other, red/green/blue/yellow/white
Luminous Intensity
55~60lm
Luminous Flux(lm)
55~60lm
Optical Attenuation(%)
3
Power
Other, 0.72w
Power Dissipation
0.72
Color Rendering Index(Ra)
65
Color Temperature
red/green/blue/yellow/white
Operating Temperature(℃)
-20, +60
Storage Temperature(℃)
-30, +60
Place of Origin
Guangdong, China
Brand Name
OPLED
Certification
CE
Detailed Images
Product Description
Application
• Widely used indoor/outdoor advertising sign, channel letter & signs with non-waterproof requirements
• Ideal for small channel letter & lighting box with depth about 5-10cm.
• Edge lighting of transparent diffused materials
• large area back lighting
• Emergency / rescue signs
Feature
• Each module contain 3 5050 SMD LEDs. Has 160° wide viewing angle
• High intensity of each module, suitable for big & medium-sized LOGO & signage
• Perfect heat diffusion could prolong chips' lifespan
• each strip is not more than 30 pieces if series connection is adopted
• with hole on both ends, can be fixed by screw
• Input:DC12V
• IP rate:IP65
• lifespan:50,000hrs
Product Parameter
| Product Name: | high brightness 3 5050 12 volt leds lights for advertisement |
| Part No.: | OP-5LSM7416-3* |
| LED Type: | 5050 SMD |
| LED Qty: | 3 PCS |
| Input Voltage: | DC12V |
| Power: | 0.72W |
| Emitting Color: | red/green/blue/yellow/white |
| Brightness (LM): | RBY:20~25LM; GW:60~65LM |
| IP rate: | IP65 |
| Material: | Anti-static,Anti-UV,PVC+PC lens |
| Wire: | 20AWG |
| Shell material: | PVC plastic |
| viewing angle | 160 ° |
| Working Temperature: | -20℃ ~ +60℃ |
| Storage Temperature: | -30℃ ~ +60℃ |
| Life time: | 50000hrs |
| Storage Environment: | Indoor ventilation, Air should be no corrosive gas, and avoid direct sunlight |
Product drawing
How to install?
Install method:
Accessories you might to use during installation:
1. LED Power supply
2. LED controller and amplifier:
3. Fast connection for AC wire and DC wire:
Packaging
| Packing | 100pcs/innerbag,1000pcs/carton |
| Weight | 11.5kg/carton |
| Carton size | 46*30*30cm |
Certifications
Factory overviewing
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2012
Factory Size
Below 1,000 square meters
Total Employees
11 - 50 People
