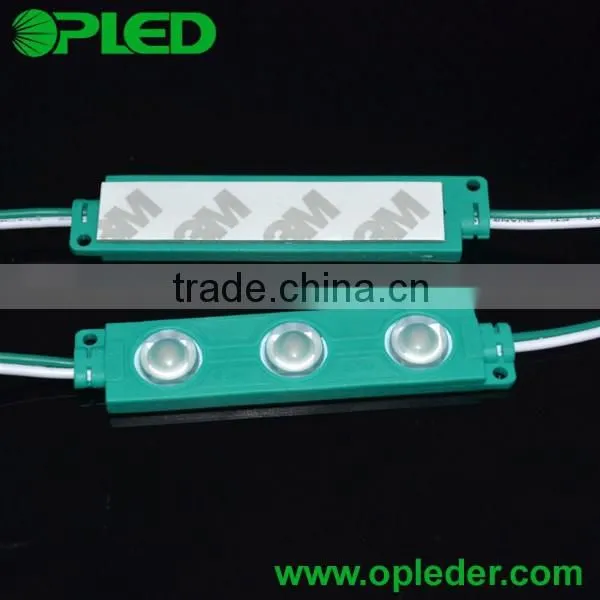

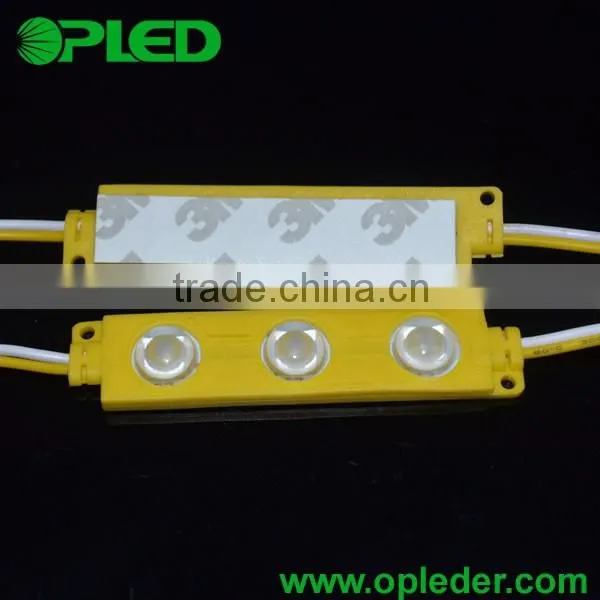

Shenzhen factory waterproof smd 3 5050 led module with 160 degree lens LED module

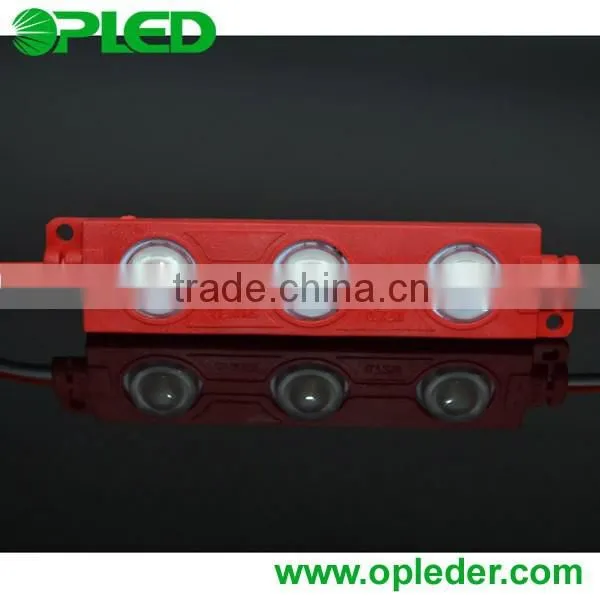

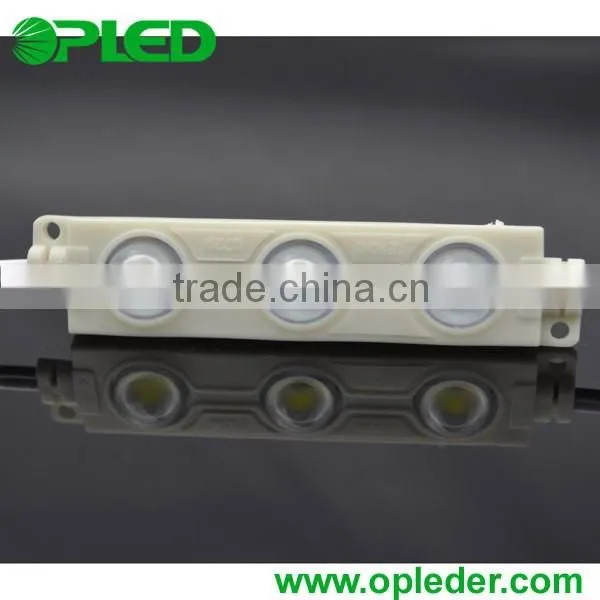

3 5050 LED module with 160 degree lens for illumination letters
3 5050 LENS LED module:
3 5730 LENS LED module:
High Power LED Module:
MINI Size LED module:
Each 5050 LED module contain 3 5050 SMD LEDs. Has 160° wide viewing angle
High intensity of each LED module, suitable for big & medium-sized LOGO & signage
Perfect heat diffusion could prolong chips' lifespan

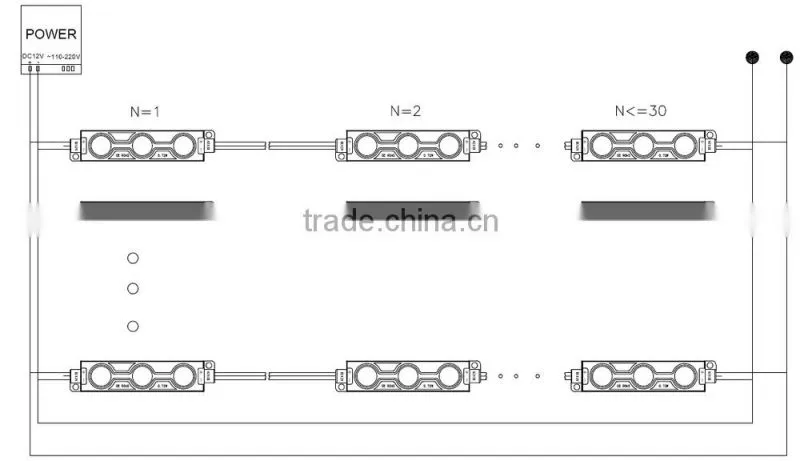

each strip is not more than 30 pieces if series connection is adopted
with hole on both ends, can be fixed by screw
Input:DC12V
IP rate:IP65
lifespan:50,000hrs
Widely used indoor/outdoor advertising sign, channel letter & signs
Edge lighting of transparent diffused materials
Ideal for channel letter & lighting box with depth about 5-10cm.
large area back lighting
Emergency / rescue signs
Prodcut Name: |
3 5050 LENS LED Module |
||||
Part No.: |
OP-5LSM7416-3R |
OP-5LSM7416-3Y |
OP-5LSM7416-3B |
OP-5LSM7416-3G |
OP-5LSM7416-3W |
Color: |
red |
yellow |
blue |
green |
pure white:6000-6500K |
Lumen: |
20-25LM |
20-25LM |
20-25LM |
60-65LM |
60-65LM |
Size: |
74*15.8*7.7mm |
||||
LED Type: |
3pcs SMD5050 with 3chips |
||||
Working Voltage |
DC12V |
||||
Current/Piece |
≤60mA |
||||
Power/Piece: |
≤0.72W |
||||
Viewing Angle: |
160° |
||||
Quantity/string: |
20pcs |
||||
Length/string |
3100mm±50mm |
||||
Unit to cut: |
each piece can cut separately |
||||
Material: |
Anti-static,Anti-UV,PVC+PC lens |
||||
Fix Method: |

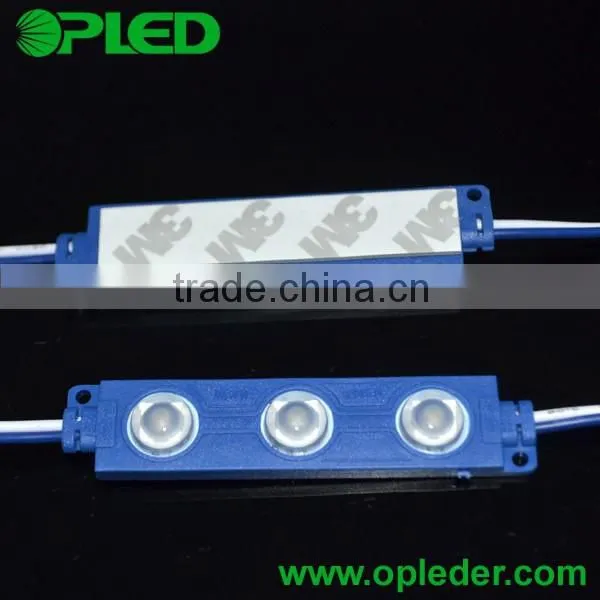

M3*15 Screw / 3M tape |
||||

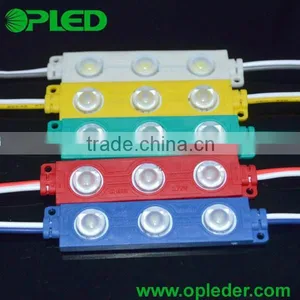

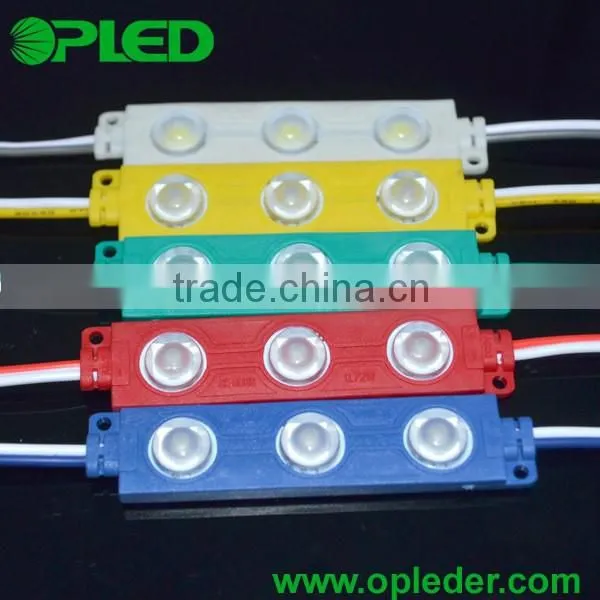

Appearance Color: |
red/yellow/blue/green/white |
||||
IP rate: |
IP65 |
||||
Life time: |
50000hrs |
||||
Certificate: |
CE/ROHS |
||||
Working Temperature: |
-20℃ ~ +60℃ |
||||
Storage Temperature: |
-30℃ ~ +60℃ |
||||
Storage Enviroment: |
Indoor ventilation,Air should be no corrosive gas,and avoid direct sunlight |
||||

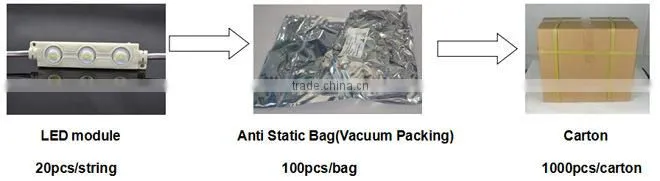

Packing Details:
| Qty/carton | 1000pcs/carton |
| Carton Size | 46*30*30CM |
| Carton Weight | 11.5KG |
about us

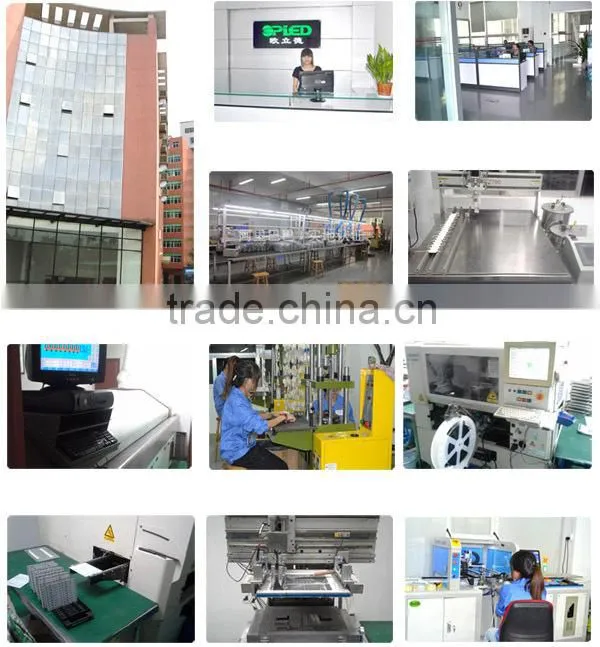

Shenzhen Opled Technology Co., Ltd is a high-tech & service-oriented enterprise dedicated to the development, manufacture and supply of LED Lighting products. Our products are widely applied to advertising signs, channel letters, light boxes and decorations. Our objective is "high stability and consistency, increase the installation efficiency, lower installation cost and after-sales cost". We will become your top supplier in LED lighting field.
