0.72W Waterproof Injection Led Module Korea for Channel Letters

0.72W Waterproof Injection Led Module Korea for Channel Letters thumbnail-1
0.72W Waterproof Injection Led Module Korea for Channel Letters thumbnail-2
0.72W Waterproof Injection Led Module Korea for Channel Letters thumbnail-3
0.72W Waterproof Injection Led Module Korea for Channel Letters thumbnail-4
0.72W Waterproof Injection Led Module Korea for Channel Letters thumbnail-5
0.72W Waterproof Injection Led Module Korea for Channel Letters photo-1
0.72W Waterproof Injection Led Module Korea for Channel Letters photo-2
0.72W Waterproof Injection Led Module Korea for Channel Letters photo-3
0.72W Waterproof Injection Led Module Korea for Channel Letters photo-4
0.72W Waterproof Injection Led Module Korea for Channel Letters photo-5
US$ 0.3 - 0.45 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Model Number:
5ISM6819-3
Chip Material:
InGaN
Emitting Color:
Other, Cool White, red, yellow, blue, green, white, RGB
Contact Supplier Request Quote Chat Now
Shenzhen OPLED Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number 5ISM6819-3
Chip Material InGaN
Emitting Color Other, Cool White, red, yellow, blue, green, white, RGB
Luminous Intensity 48-54lm
Luminous Flux(lm) 48-54lm
Optical Attenuation(%) 3
Power Other, 0.72w
Power Dissipation 0.72w
Color Rendering Index(Ra) 80
Color Temperature 10000k
Operating Temperature(℃) -20, 60
Storage Temperature(℃) -35, 80
Place of Origin Guangdong, China
Brand Name OPLED
Certification CE

0.72W waterproof injection led module korea for channel letters



Detailed Product Description-led module korea

  1. Model number:led injection module+ OP-5ISM6819-3
  2. Size: led injection module +68.2*19.5*5.7mm
  3. Material: led injection module +Plastic
  4. IP rate: led injection module +IP67
  5. Certification: led injection module +CE/Rohs
  6. Application: led injection module + back light for sign



Quick Detail- led module korea-:

  • 3pcs 5050smd led back light
  • Part No.: OP-5ISM6819-3
  • Working Voltage:DC12V
  • Power: 0.72W/pcs
  • Available color Red/yellow/blue/green/white/warm white
  • Size:68.2*19.5*5.7mm
  • IP rate: IP67
  • Viewing angle:120°
  • Lumen:60-66lm
  • Warranty: 2 years warranty
  • Quick delivery: 5-7days
  • Lifetime:80,000hrs
  • Certificate: CE,Rohs
  • Application: Back lighting for advertising signs,channel letters,light boxes,etc.



Description - led module korea :

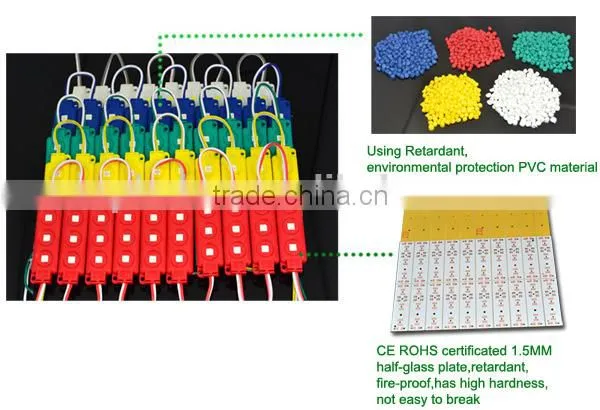

• Each module contains 3 SMD LEDs. Has wide viewing angle
• Super thin, only 4mm thick

• High intensity of each module, suitable for big & medium-sized LOGO & signage
• Perfect heat diffusion could prolong chips' lifespan
• each strip is not more than 30 pieces if series connection is adopted
• with hole on both ends, can be fixed by screw
• Input: DC12V
• IP rate: IP67
• lifespan: 80,000hrs





Applications - led module korea :



• Widely used indoor/outdoor advertising sign, channel letter & signs with non-waterproof requirements

• Ideal for small channel letter & lighting box with depth about 5-8cm.
• Edge lighting of transparent diffused materials
• large area back lighting
• Emergency / rescue signs





0.72W waterproof injection led module korea for channel letters

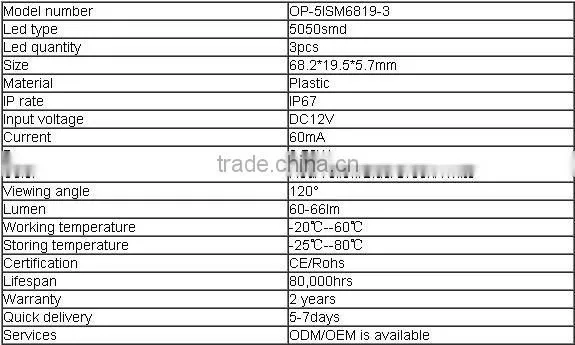

Specifications  -  led module korea :



0.72W waterproof injection led module korea for channel letters

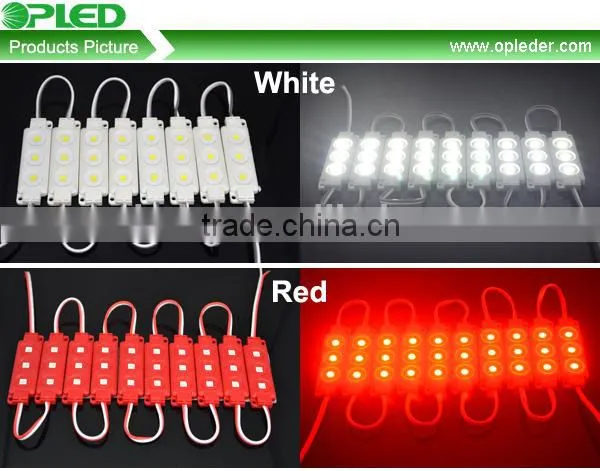

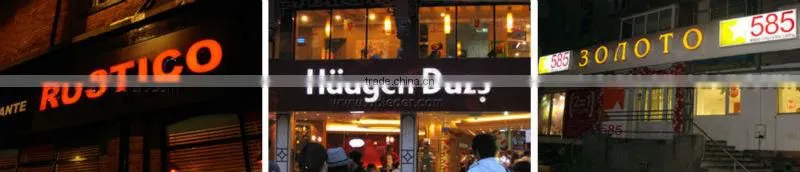

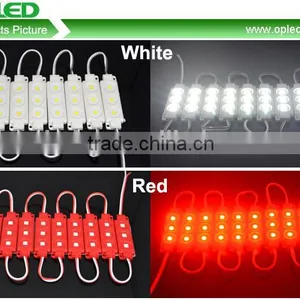

Lighting pictures - led module korea :



0.72W waterproof injection led module korea for channel letters

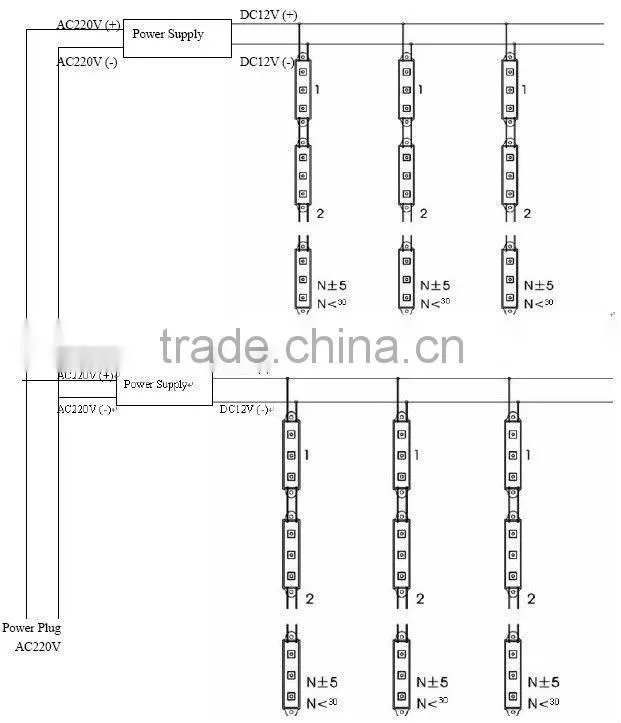

Installation Instruction -  led module korea:



0.72W waterproof injection led module korea for channel letters







Packing details -led module korea :



0.72W waterproof injection led module korea for channel letters

0.72W waterproof injection led module korea for channel letters

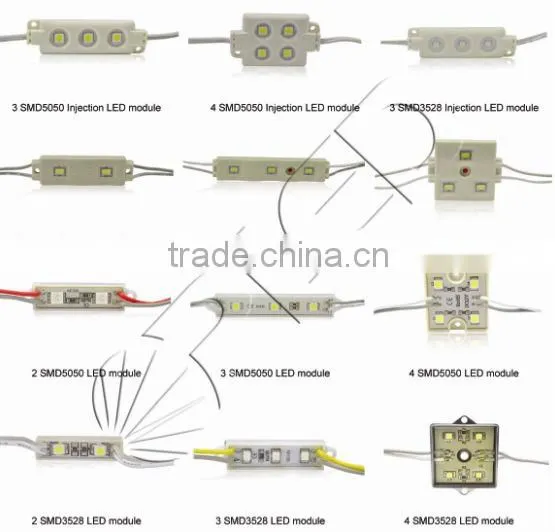

Related products- :led module korea

0.72W waterproof injection led module korea for channel letters

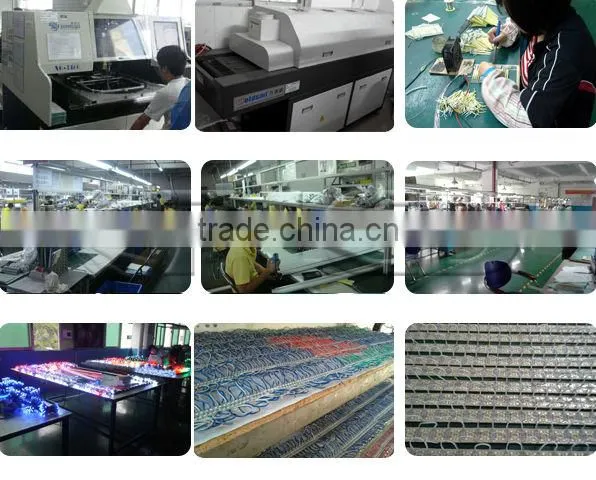

Production View--led module korea:



0.72W waterproof injection led module korea for channel letters





Customer Feedback-led module korea:



0.72W waterproof injection led module korea for channel letters







Team View --led module korea:

 0.72W waterproof injection led module korea for channel letters



0.72W waterproof injection led module korea for channel letters

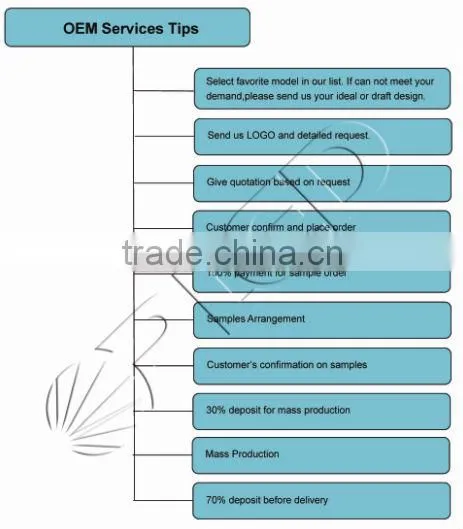

OEM Sevices Tips -led module korea :



0.72W waterproof injection led module korea for channel letters





FAQ --led module korea:



Q1: Can I have samples to test?

A: Yes,we are pleased to supply samples to test and check quality,mixed sample order is available. Please note, free samples is not acceptable.

Q2: Do you have any MOQ limited?

A: Our MOQ EXW is 5pcs, Our MOQ FOB is 100pcs.

Q3: What’s the lead time?

A: Sample :1-5days.

   Mass production: 7-10days.

Q4:How do you ship the goods and how long does it take?

A: We usually ship by DHL,UPS,FEDEX,TNT. It usually takes 3-5days to arrive.

By air,by sea are also acceptable.

Q5: Do you offer guarantee for your products?

A: Yes, we offer two years guarantee for the products.

Q6: Do you accept drop shipping

A: Yes, it is available.
