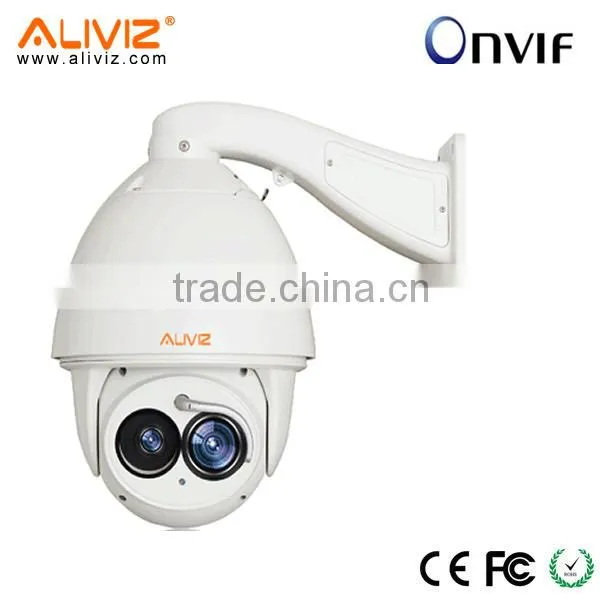

2014 NEW!! 30X Laser IP PTZ Camera 2MP 1080P 30X Laser IP PTZ camera IP PTZ Auto-tracking

Specifications

1.3MP Outdoor 20X IP Outdoor PTZ Camera
Laser Surveillance for 300M

1.3MP Network IP PTZ Camera with auto-tracking function

Application:

It can be widely used in airport, port, bank, school, traffic surveillance and etc.

Order No. :

AS-IP8820-HS-W (wall bracket)

AS-IP8820-HS-D ( Ceiling Bracket)

AS-IP8820-HS-WB (Wall bracket with Power supply box)



Auto-Tracking function with zoom in

The Dome will automatically zoom in and track the moving object according to the user’s setup via OSD. The sensitive of moving object range could set up as higher/middle/lower range.

AS-IP8820-HS Features



IR Distance

l  Minimum Illumination 0.2 Lux.

l  Adopt high performance Laser light, low power consumption, IR distance 300-350M

l  Constant current circuit design, IR lights enjoy 60,000 hours life-time.



PTZ Function
• Stepless speed changes, auto zoom/speed matching
• Pan 0.01~360o/S, Tilt 0.01o~120o/S, Preset: 400o/S (high speed IR speed dome)
• Auto object track with zoom in/out and motion detection (Auto Track Model)
• Timing actions for 7 days of programmable schedule
• Built-in Semi-conductor heater & digital temperature sensor
• PWM cooling fan vari-speed temperature control
• Reserved network interface and space for network module
• Pan Tilt accuracy +/- 0.1o, 256preset positions
• 8 cruising tracks, each cruising track has 32 presets
• 4 pattern tours,10 Mins memory, 500 programmable instructions
• 8 auto scan with use-defined left and right boundaries and settable scan speed
• Alarm triggering: the alarm can trigger preset, auto scan, cruising and pattern tours functions
• Soft Address Function: the use can set up the dome address without uninstall the dome

PTZ Motor
• Delicate stepping motor, stable, sensitive and accurate
• 360° Endless Pan and 90° Tilt range (auto-flip) without blind area
• Stepless speed change, auto zoom/speed matching
• Near / far IR Light auto matches camera zoom in/out

Zoom Module

l  support auto iris, auto-focus, AWB, BLC

l  support ultralow illumination, 0.05Lux/F1.4 (color), 0.01Lux/F1.4 (B/W), 0Lux with IR

l  support 3DNR, D-WDR

l  effective pixel is 1.3MP (960P)

l  30X Optical and 12X Digital



Network Function

l  Adopt high-performance platform, stable and reliable performance

l  Support Ethernet control

l  Can view video by IE browser and Client software

l  Supports NAS storage, Video can continue transmit from break network, support Max. 8pcs NAS disks

l  Support dual-stream, H.264/MJPEG compression



IP67 Weatherproof
• 6 Inch High die-cast alloy aluminum construction
• High Precision Mould with high heat conductivity
• Fully enclosed isolation design for heat sink
• Nanometer Dustproof, waterproof and fog-proof lens

Build in Air Duct Ventilation Technology

Could work at the temperature from -40degree +60degree

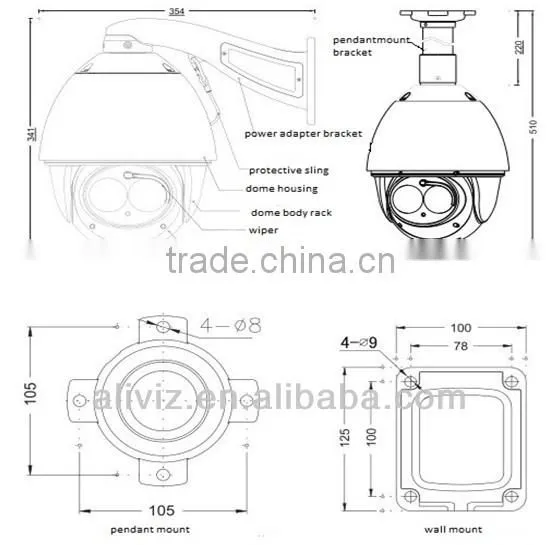

Accessory

Easy to setup input port                                              Wall Mount with Power Box for easy installation in project
