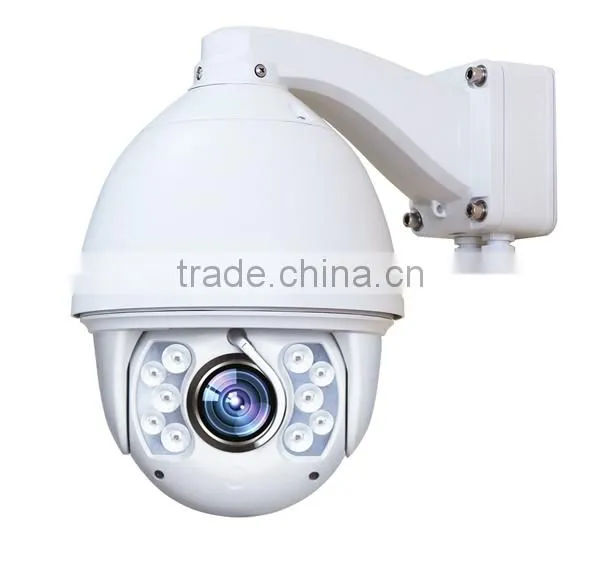

20X 1080P Megapixel IP PTZ Camera with Auto-tracking and IR180M
Introduction
IR Distance
l Minimum Illumination 0.2 Lux.
l Adopt high performance Germany IR Array LEDS, low power consumption, IR distance 200m.
l Constant current circuit design, IR lights enjoy 30,000 hours life-time.
PTZ Function
• Stepless speed changes, auto zoom/speed matching
• Pan 0.01~360o/S, Tilt 0.01o~120o/S, Preset: 400o/S (high speed IR speed dome)
• Auto object track with zoom in/out and motion detection (Auto Track Model)
• Timing actions for 7 days of programmable schedule
• Built-in Semi-conductor heater & digital temperature sensor
• PWM cooling fan vari-speed temperature control
• Reserved network interface and space for network module
• Pan Tilt accuracy +/- 0.1o, 256preset positions
• 8 cruising tracks, each cruising track has 32 presets
• 4 pattern tours,10 Mins memory, 500 programmable instructions
• 8 auto scan with use-defined left and right boundaries and settable scan speed
• Alarm triggering: the alarm can trigger preset, auto scan, cruising and pattern tours functions
• Soft Address Function: the use can set up the dome address without uninstall the dome
PTZ Motor
• Delicate stepping motor, stable, sensitive and accurate
• 360° Endless Pan and 90° Tilt range (auto-flip) without blind area
• Stepless speed change, auto zoom/speed matching
• Near / far IR Light auto matches camera zoom in/out
Zoom Module
l support auto iris, auto-focus, AWB, BLC
l support ultralow illumination, 0.05Lux/F1.4 (color), 0.01Lux/F1.4 (B/W), 0Lux with IR
l support 3DNR, D-WDR
l effective pixel is 2MP (1080P)
l 20X Optical and 12X Digital
Network Function
l adopt high-performance platform, stable and reliable performance
l support Ethernet control
l can view video by IE browser and Client software
l Supports NAS storage, Video can continue transmit from break network, support Max. 8pcs NAS disks
l support 3-level user authorization management, authorized user & password, HTTPS encryption and IEEE 802.1x network access control
l support dual-stream, H.264/MJPEG compression, multi-level video quality configuration, real-time video output in 1080P
IP67 Weatherproof
• 6 Inch High die-cast alloy aluminum construction
• High Precision Mould with high heat conductivity
• Fully enclosed isolation design for heat sink
• Nanometer Dustproof, waterproof and fog-proof lens
Key & special Technology
1/ Video Analysis Light-Adjustment technology
2/ Auto-Tracking function with zoom in
3/ Motion Detection (Video Analysis)
4/ Aluminum Wiper for rainy day surveillance
5/ Fast Installation with power box
6/ Heater and Fan function
Specification
Model No. |
AS-IP8420-A |
|
Zoom module |
Image sensor |
1/2.8" Pro Type Exmor Cmos |
Effective pixel |
2.0 Megapixels,HD1920x1080@30fps |
|
Minimum |
Color: 0.05Lux @ (F1.4,AGC ON), B/W: 0.01Lux @(F1.4,AGC ON),0 Lux with IR |
|
White balance |
auto / manual / auto-tracking /outdoor/indoor/fluorescent lamp/sodium lamp |
|
Gain control |
auto/manual |
|
SNR |
More than 50dB |
|
Noise reduction |
3D&2D |
|
BLC |
ON/OFF |
|
WDR |
Support |
|
Shutter |
1/1-1/10,000s |
|
Day/night mode |
Auto ICR color to black |
|
Focus mode |
Auto /semi-auto /manual |
|
Focal length |
4.7- 94mm,20x optical |
|
Zoom speed |
About 3 sec. (optical, wide angele-telescope) |
|
Horizontal |
55.4-3.2 degrees ( wide angel-telescope) |
|
Close-up |
10-1000mm( wide angel-telescope) |
|
f-number |
F1.4-F3.5 |
|
Function |
IR distance |
200M IR |
IR angle |
adjustable |
|
Pan speed |
0.01°-360°/S |
|
Tilt speed |
0.01°-120°/S |
|
Tilt range |
-10°-90°, auto-flip 180° |
|
Manual speed |
High, medium, low (adjustable) |
|
Proportional Zoom |
Support |
|
Number of Preset |
256 presets |
|
Patrol |
8 patrols, up to 32 presets per patrol |
|
Pattern |
8 scans with settable left and right boundaries |
|
Scan between two presets |
support |
|
Park Action |
presets/pattern/patrol/scan between two presets/ auto |
|
Area-limit |
support |
|
Network |
Max. Resolution |
1920X1080@30fps |
Frame rate |
30 FPS(1920x1080), 25 FPS(1280×720); |
|
Video compression |
H.264/MJPEG |
|
Network protocol |
TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPOE,NTP,UPNP,SNMP,FTP,802.1x,QoS,HTTPS,IPv6(SIP,SRTP),ONVIF |
|
Preview video simultaneously |
Max. 6 channels |
|
Dual-stream |
Support |
|
User permission |
Max. 32 users (3-level: administrator, operator, only browse ) |
|
Safe mode |
Authorized user & password, and MAC address binding; |
|
Network interface |
Built-in RJ45 port,support 10M/100M |
|
API |
Support open API, ONVIF |
|
Client |
Support iVMS-4200 PCNVR |
|
Brower |
Support IE7, IE8, IE9, Chrome8+, Fireforx3.5+, Safari5+ ,and google brower |
|
Input/output |
Menu |
Chinese/English |
Others |
PTZ control protocol |
Network |
Wiper |
Support wiper to clear lens automatically through software control |
|
Power Supply |
DC 12V |
|
Power Consumption |
MAX. 10W (day); MAX. 30W (night) |
|
Working Temperature/Humidity |
-40degree +60degree, ≤90%RH( frostless ) |
|
Protection Grade |
TVS4000V lightning protection, surge protection and voltage transient protection, weather proof: IP67 |
|
Package size (mm) |
341×228×510 |
|
Weight (Kg) |
7KG |
|
Size mm
