YM Hydraulic Cathead
US$ 1,000 - 20,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
GM
Model Number:
HCH
Payment & Shipping
Payment Methods:
Port of Shipment:
Main port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jiangsu, China
Brand Name
GM
Model Number
HCH
Type
Other
Machine Type
Drilling Equipment
Certification
API
Material
Stainless Steel
Processing Type
Forging
Use
Well Drilling
Specifications
1,YM hydraulic cathead2,It has 5t,8t,10t,16t by pull to select
3,According to API 8A
4,Suitabel to tighten or loosen

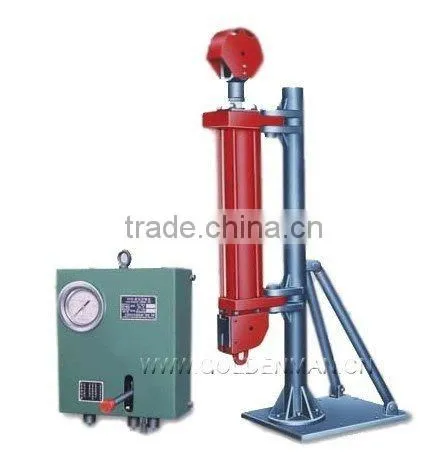

Hydraulic Cathead
The YM hydraulic cathead is suitable to make up and break out by companying with Suspension Tong.
Operation is stable and pull may be adjusted whenever necessary.
It has its series with four specifications of 5t, 8t, 10t, 16t by pull to select.
It is designed and manufactured according to Specification for Drilling and Production Hoisting Equipment.
Technical parameters:
Model |
YM-16 |
YM-10 |
YM-8 |
YM-5 |
|
Rated pressure |
MPa |
16 |
16 |
16 |
16 |
psi |
2320 |
2320 |
2320 |
2320 |
|
Rated flow |
L/min |
120 |
120 |
120 |
120 |
gpm |
31.7 |
31.7 |
31.7 |
31.7 |
|
Normal pull stroke |
mm |
1620 |
1650 |
1400 |
1700 |
in |
64 |
65 |
55 |
67 |
|
Rated pull |
kN |
160 |
100 |
80 |
50 |
US ton |
17.6 |
11.0 |
8.8 |
5.5 |
|
Overall dimensions |
mm |
2450*270*650 |
2342*1280*650 |
2280*1280*650 |
2232*1172*650 |
in |
96*63*26 |
92*50*26 |
90*50*26 |
88*46*26 |
|
Weight |
kg |
420 |
345 |
305 |
288 |
lb |
926 |
761 |
673 |
635 |
|
