Home > Manufacturing & Processing Machinery > Mining Machinery > Mining Machinery Parts > YZBF-120LD Air-cooled Hydraulic Power Units

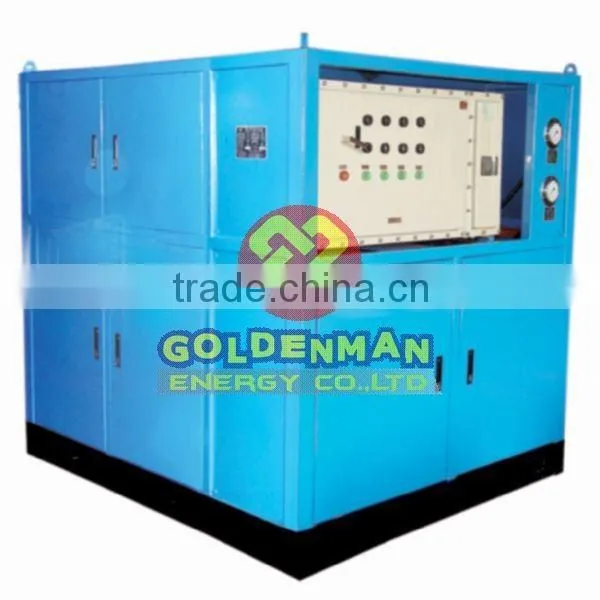

YZBF-120LD Air-cooled Hydraulic Power Units

US$ 5,000 - 50,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

Model Number:

YZBF-120LD

Contact Supplier Request Quote Chat Now

Goldenman Petroleum Equipment Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Main port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name GM

Model Number YZBF-120LD

Type Other

Machine Type Drilling Equipment

Certification API

Material Carbon Steel

Processing Type Casting

Use Well Drilling

Specifications

1,YZBF-120LD Air-cooled hydraulic power units
2,Rated flow:80/120 L/min
3,Max. pressure:21.5/14Mpa
4,Drive power:37Kw

1,YZBF-120LD Air-cooled hydraulic power units

Features:

1,YZB series of air-cooled (water-cooled) hydraulic power unit supplies hydraulic power for drill equipments in onshore and offshore, especially suitable for hot area in the desert and for continuous working situation.

2,It features small structure, easy operation, wide adjustable range, good heating and radiating.

3,All electric apparatus are explosion-proof.

Technical parameters:

Model		YZBF-120LD	YZBF-120LD-*	YZBS-120LD	YZBS-120LD-*
Rated flow	L/min	80/120	120	120, &40	120
Rated flow	gpm	21/31.7	31.7	main :31.7, secondary:10.6	31.7
Max. pressure	MPa	21.5/14	20	20	20
Max. pressure	psi	3120/2030	2900	2900	2900
Rated pressure	MPa		16	16	16
Rated pressure	psi		2320	2320	2320
Available capacity	L	600	900	1000	900
Available capacity	gal	158.5	238	264	238
Drive power	kW	37	37	main45,secondary :11	37
Drive power	hp	49.6	49.6	main:60.3,secondary :15	49.6
Fan motor power	kW	0.37x2	0.37x2
Fan motor power	hp	0.5x2	0.5x2
Heating power	kW	2 x3
Heating power	hp	2 x4.02
Radiation area	m²	40	40	8 water cooled	10 water cooled
Radiation area	Ft²	430	430	86.1water cooled	107.6water cooled
Size	mm	1650x1300x1600	1950x1450x1750	1900x1700x1850	1750x1350x1750
Size	in	65x51x63	77x57x69	75x67x73	69x53x69
Weight	kg	1600	2400	2800	2400
Weight	lb	3527	5290	6173	5290
