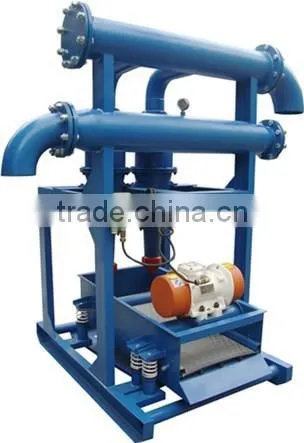

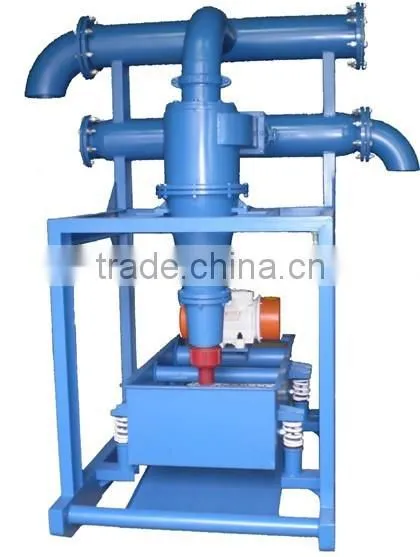

Double Hydrocyclone Desander
As a solids control equipment of the second stage in drilling operation, desander is used to remove harmful solid particles of 40-74µm in drilling liquid.Suspending particles can be separated from the liquid under the centrifugal acceleration, by use of working principle of centrifugal subsidence.
At present time, six types,ZQJ300×2,ZQJ250×2, ZQJ200×2 and ZQJ300×1, ZQJ250×1, ZQJ200×1are available. The former applies to over 3000-meter-long drills, and the latter applies to small drills of less than 3000 meters and service rig.
Model |
ZQJ300×2 |
ZQJ250×2 |
ZQJ200×2 |
|
Hydrocyclone diameter |
300mm |
250mm |
200mm |
Working pressure |
0.2~0.45MPa |
0.2~0.45MPa |
0.2~0.45MPa |
Capacity |
240 m3/h |
200 m3/h |
160 m3/h |
Screen size |
1240×585 mm |
1240×585 mm |
1240×585 mm |
Screen spec |
120-200 |
120-200 |
120-200 |
Inlet diameter |
6″ |
6″ |
3″ |
Outlet diameter |
8″ |
8″ |
6″ |
Motor power |
0.5 kW |
0.5 kW |
0.5 kW |
Weight |
780 kg |
740 kg |
700 kg |
Overall dimensions |
1630×2018×2280mm |
1630×2018×2215mm |
1630×1875×2045mm |
Export packing or according clients demand
We also can supply the follows products :
1 |
tubular |
API5D drill pipe,API7 Drill collar, API 5CT coupling |
2 |
well control system |
BOP stack upto 15000 psi, choke &kill manifold ,control box for manifold ,choke &kill hose etc, Bop closing unit, high test unit |
3 |
High pressure fluid control products |
Chiksan swivel joint ,plug valve,pup joints ,hammer union etc |
4 |
down hole tools |
Drilling jar, stabilizer. Reamer ,casing scraper etc |
5 |
Rotary and handling tools |
manual tong, elevator, casing spider/elevator, rotary slip,hydraulic power tong |
| 1 | Founded |
2006 |
| 2 | Address |
Dongying ,Shandong |
| 3 | Main products |
Tubular( API5D drill pipe,API7 Drill collar, API 5CT coupling); well control system( BOP stack upto 15000 psi, choke &kill manifold ,control box for manifold ,choke &kill hose etc, Bop closing unit, high test unit); High pressure fluid control products( Chiksan swivel joint ,plug valve,pup joints ,hammer union etc); down hole tools( Drilling jar, stabilizer. Reamer ,casing scraper etc); Rotary and handling tools( manual tong, elevator, casing spider/elevator, rotary slip, hydraulic power tong) |
| 4 | Export |
North America; south America; Eastern Europe; Southeast Asia; Africa; Mid East; Eastern Asia; Southern Europe; South Asia |
Why us GM(Goldenman)?
GM strongly believe that we offer a unique opportunity to the market by being able to offer equipment locally, with innovative pricing and terms of business which we believe separates us from the competition.
