API 8ATraveling block
- 1500 Set / Sets per Month
- Xingang Tianjin
- T/T Credit Card
- The 3NB-250/6-15 reciprocating mud pump provides washout fluid to the borehole during core drilling with the three-cylinder plunger
- Coal mine tunnel drilling rig ZLJ350 head can be turned
- China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
- 100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
- HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
- 50m Depth Core Drilling Rig Portable Diamond in Mountain
Product Details
Condition: | New | Type: | Rotary Drilling Rig | Power Type: | Other |
Place of Origin: | Shandong, China | Brand Name: | GM | Model Number: | YC |
Usage: | Other, Other, Oil Well | Voltage: | Customized | Power(W): | non |
Dimension(L*W*H): | non | Weight: | non | Certification: | API |
Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

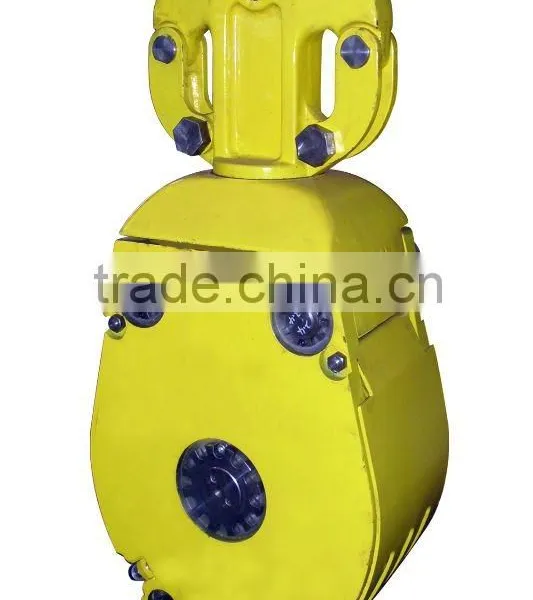

1.Drilling rig traveling blocks is one of the lifting equipments for petroleum drilling rig and workover rig with the integral design,which can shorten the length between traveling block and hook, perfectly meeting the traveling space for lifting system.
2.Drilling rig traveling blocks can be in accordance with Spec 8C PSL1.
3.The advanced heat treatment processes such as carburetion, etc. is used on some crucial driving components with high strength and long service life.
4.The sheave grooves are intermediate frequency quenched so as to provide surface hardness and extend service life ofsheaves.
Model | YG40 | YG50 | YG70 | YG110 |
Max. static load lb(kN) | 90000(400) | 112500(500) | 157500(700) | 247500(1100) |
OD of sheaves in.(mm) | 20.4(518) | 22.6(575) | 24(605) | 24(605) |
No. of sheaves | 3 | 3 | 4 | 3 |
Dia. of wirelines in.(mm) | 7/8(22) | 7/8(22) | 7/8(22) | 1(26) |
Weight lb(kg) | 308(682) | 356(785) | 634(1397) | 646(1424) |
Overall dimensions (mm) |
(2138×540×445) |
(2220×602×445) |
(1844×692×540) |
(2334×673×562) |
Model | YG150 | YG180 | YG200 | YG350 |
Max. static load lb(kN) | 337500(1500) | 405000(1800) | 450000(2000) | 787500(3500) |
OD of sheaves in.(mm) | 30(760) | 42(1060) | 43.3(1100) | 44(1118) |
No. of sheaves | 4 | 5 | 5 | 5 |
Dia. of wirelines in.(mm) | 1(26) 1-1/8(29) | 1-1/8(29) | 1-1/4(32) | 1-1/4(32) |
Weight lb(kg) | 1276(2180) | 2336(5146) | 3323(7320) | 2206(4860) |
Overall dimensions in .(mm) | (2768×830×711) | (3469×1110×768) | (3964×1200×915) | (3600×1218×812) |
