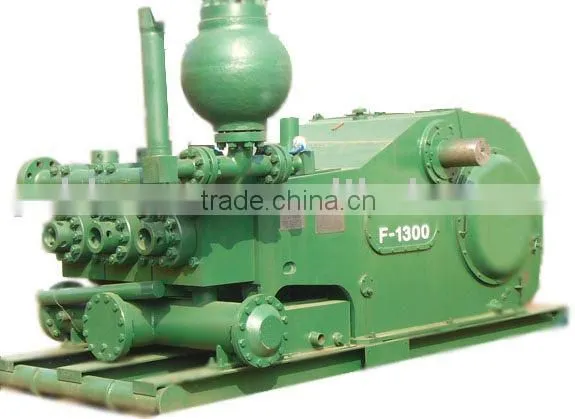

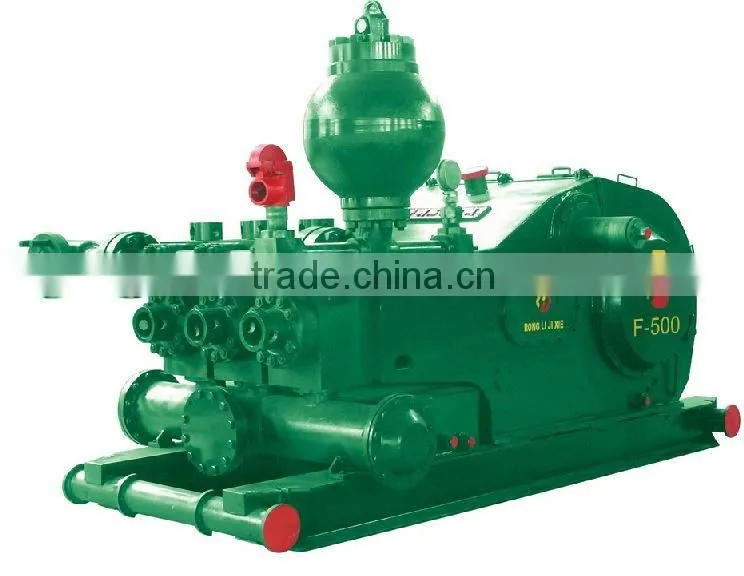

F series mud pumps:1). the excellent operation performance with the firm
2). compact structure and small volume.
the instruction for F series mud pumps
1 F series mud pumps has the excellent operation performance with the firm and compact
structure and small volume.
2 It is adopt to the high pumping pressure and large capacity requied by the oilfield drilling.
F series mud pump has a long stroke,so with less stroke rate it's suction efficient and the life
of the expendable parts are improved a lot.
3 With the advanced structure the pulsation dampener makes the suction pipe get the most
satisfatory buffer effect.
At the power end the F series pump employs the pressure lubrication system and the flash lubrication system.It prolongs the service life of the power end a lot.
F series mud pump parameters
| Model | F-500 | F-800 | F-1000 | F-1300 | F-1600 |
| Type | Triplex single acting piston | Triplex single acting piston | Triplex single acting piston | Triplex single acting piston | Triplex single acting piston |
| Max. Liner size x stroke | 170 x 191mm (6-3/4" x 7-1/2") |
170 x 229mm (6-3/4" x 9") |
170 x 254mm (6-3/4" x 10") |
180 x 305mm (7" x 12") |
180 x 305mm(7" x 12") |
| Strokes Rating | 165r/min | 150r/min | 140r/min | 120r/min | 120r/min |
| Power Rating | 373kW(500HP) | 596kW(800HP) | 746kW(1000HP) | 969kW(1300HP) | 1193kW(1600HP) |
| Gear Type | Herringbone | Herringbone | Herringbone | Herringbone | Herringbone |
| Gear Ratio | 4.286:1 | 4.185:1 | 4.207:1 | 4.206:1 | 4.206:1 |
| Lubrication | Pressure & Splash | Pressure & Splash | Pressure & Splash | Pressure & Splash | Pressure & Splash |
| Suction Inlet | 8" Flange (203mm Approx) |
10" Flange (254mm Approx) |
12" Flange (305mm Approx) |
12" Flange (305mm Approx) |
12"Flange (305mm Approx) |
| Discharge Outlet | 4" Flange, 5000Psi139.7mm(5-1/2") | 5" Flange, 5000Psi | 5" Flange, 5000Psi | 5" Flange, 5000Psi | 5" Flange, 5000Psi |
| Pinion Shaft Dia. | 139.7mm(5-1/2") | 177.8mm(7") | 196.9mm(7-3/4") | 215.9mm(8 1/2") | 215.9mm(8 1/2") |
| Key | 31.75 x 31.75mm (1-1/4" x 1-1/4") |
44.45 x 44.45mm (1-3/4" x 1-3/4") |
50.8 x 50.8mm (2" x 2") |
50.8 x 50.8mm (2" x 2") |
50.8 x 50.8mm(2" x 2") |
| Valve Pots | Valve-Over-Valve, AP1#5 | Valve-Over-Valve, AP1#6 | Valve-Over-Valve, AP1#6 | Valve-Over-Valve, AP1#7 | Valve-Over-Valve, AP1#7 |
| Approx. Weight | 9770kg(21540lb) | 14500kg(31970lb) | 1879kg(41420lb) | 24572kg(54170lb) | 24791kg(54660lb) |
2 3NB series mud pump instruction:
3NB mud pumps,which are used to circulate drilling fluids,cleaning bottom of the hole,carry the drill cuttings out of the hole,cool,clean and lubricate the bit,and support the wall in drilling operation in oil and gas field,are a kind of horizontal medium-speed triplex single-acting piston pump.It is especially suited to high press- ure jet drilling for increasing penetration rate,and it can also supply flowing drilling fluids for downhole motors to drive the downhole drilling machines and downhole tools.3NB series mud pumps are composed of the power end and the fluid end.The power end includes the following parts such as:frame,a drive shaft,a driven shaft,a transmission shaft of lubricating oil pump,and a lubricating system.The fluid end includes the following parts such as:valve pots,liners and pistons,high pressure manifolds, suction manifolds.
3NB mud pumps series are 3NB500, 3NB800, 3NB1000, 3NB1300, 3NB1600
