Contact Platform Support
Help CenterQJ 5 Air Winches
US$ 1,000 - 10,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
GM, GM
Model Number:
QJ series
Payment & Shipping
Payment Methods:
Port of Shipment:
main port of China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shandong, China
Brand Name
GM, GM
Model Number
QJ series
Power Source
Pneumatic
Application
Boat
Specifications
1 air winches produced under API Spec 7k2 air pressure: 72-130psi
3 max pull:5-50KN

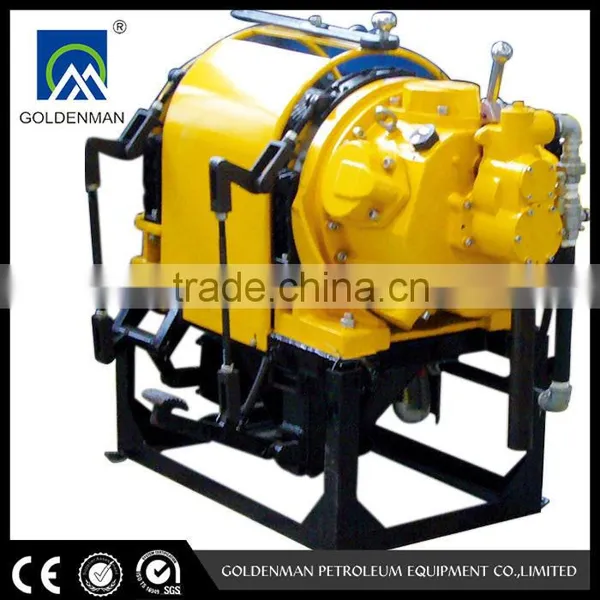

QJ series of air winches
Technical parameters:
Model |
QJ-0.5* |
QJL-0.5* |
QJ-1* |
QJ-3 |
QJ-5** |
|
Air pressure |
MPa |
0.5-0.9 |
0.5-0.9 |
0.5-0.9 |
0.5-0.9 |
0.5-0.9 |
psi |
72-130 |
72-130 |
72-130 |
72-130 |
72-130 |
|
Max. pull |
kN |
5 |
5 |
10 |
30 |
50 |
US ton |
0.55 |
0.55 |
1.1 |
3.3 |
5.5 |
|
Max. rope speed |
m/min |
12 |
12 |
24 |
20 |
35 |
ft/min |
39.3 |
39.3 |
78.7 |
65.6 |
114.8 |
|
Rope diameter |
mm |
8 |
8 |
11 |
15.875 |
15.875 |
in |
5/16 |
5/16 |
7/16 |
5/8 |
5/8 |
|
Rope capacity |
m |
120 |
40 |
100 |
200 |
70 |
ft |
394 |
131 |
328 |
656 |
230 |
|
Overall dimensions |
mm |
675*343*460 |
490*295*370 |
740*397*542 |
1530*745*955 |
1254*900*989 |
in |
27*14*18 |
19*12*15 |
29*16*21 |
60*29*38 |
50*36*40 |
|
Weight |
kg |
117 |
45 |
162 |
685 |
418 |
lb |
228 |
99 |
357 |
1412 |
920 |
|
Note: Models marked with * may be connected to Long-distance control device. | ||||||
Model marked with ** may be connected with Auto-brake device. | ||||||
