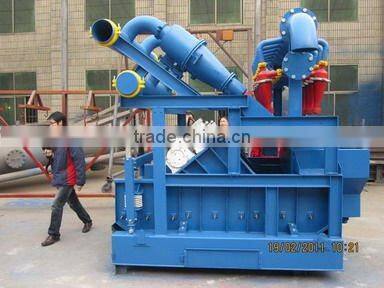

API 13C Drilling Screen Shale Shaker
- China Main Port
- Money Gram
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | gm, GM | |
| Model Number | gm10092, DSS | Type | Other, Casing head | |
| Certification | API |
Product Description
Specifications
Shale shaker:1. Vibrating strength: <=7.0g
2.Double amplitude: 5.5-6.0mm
3.Treating capacity: 80-140 cubic meter per hour

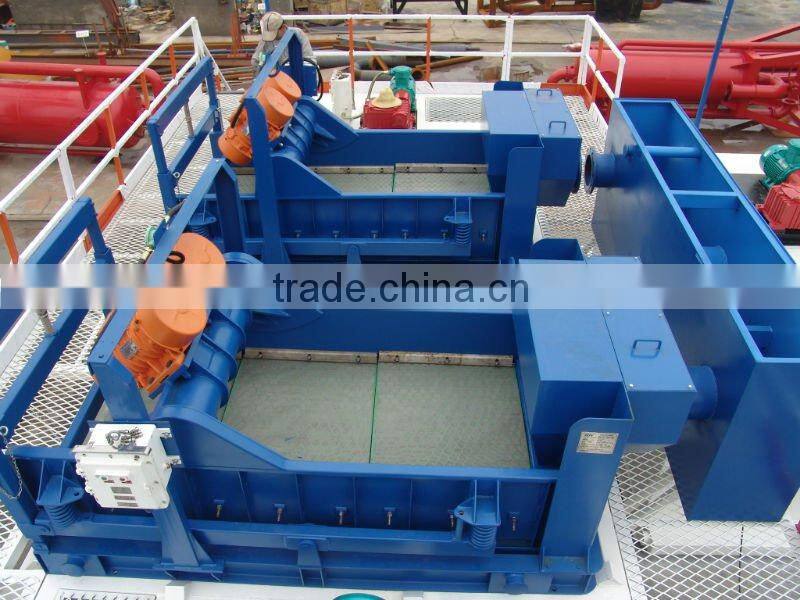

Drilling screen shale shaker
Detailed Product Description :
1, Built on API RP 13C, with the certificate of authority to use the official API monogram.
3, The motor is 2.5 KW explosion-proof motor.
| FC-313 | GX-1 | GX-II |
Amplitude of Vibration (P-P value) | 5 | 5 | 5 |
Excited Rotation Velocity (RPM) | 1,450 | 1,420 | 1,420 |
Type of Vibration | Linear | Linear | Linear |
Area of Screen (mm2) | SC36-30 | 4-1053*697 | 3-1053*697 |
Max. Handling Capacity (GPM) | 695.4 | 768.6 | 732 |
S230-3 special track shale shaker is used in the drilling liquid first phase purification in petroleum exploration and exploitation. The relative position between the vibrator rotation center and the shaker basket centroid leads to a special vibration track that ensures good screening efficiency, quick disposal and prolonged screen life. It has three types:S230-3, S230-3×2 and 230-3×3 that can cope with all kinds of the drilling rigs and drilling liquid circulation systems made in China.
| S230-3 | S230-3X2 | S230-3X3 |
Amplitude | A≥2 mm | ||
Rotating Speed of exciting vibrator(rpm) | 1068, 1252 with double-speed pulley | ||
Projective Index | G=4.8 when n=1068 r/min G=5.9 when n=1252 r/min | ||
G Force P | P=33 kN when n=1068 r/min P=41 kN when n=1252 r/min | ||
Area of Single Screen() | 2.3 | 4.6 | 6.9 |

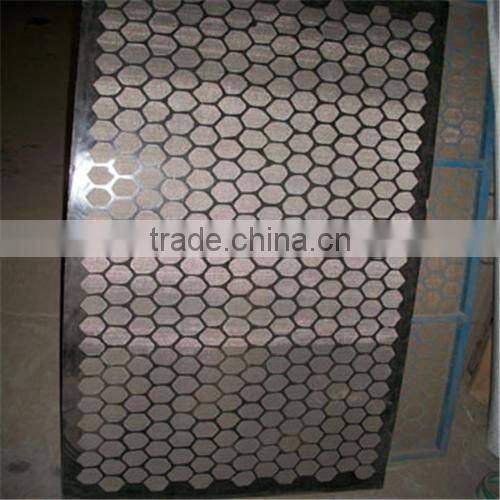

Screen Angle | 1st 0°,2nd 5°, Screen API 20, 40, 60, 80,100 Mesh | ||
Handling Capacity of Single Screen | Q≥501/s when drilling liqiud clone velocity≤40 Second | ||
Motor | Model Y112M-4, Rotation Rate 1440rpm,Power 4kW | ||
Overall Dimension(mm) | 2900x1850x1320 | 4200x2675x1340 | 4200x2675x1340 |
Weight(Kg) | 1588 | 3323 | 4570 |
S250-2 Balanced Elliptical Motion Shale Shaker is designed for various mud conditions with MARTIN Vibrator. Its shaking track is balanced elliptical, which is the most advanced in the world with features of quick disposal, high capacity, good screening efficiency with prolonged screen life, and easy to install and maintain. It has two structure models:S250-2 and S250-2×2.
