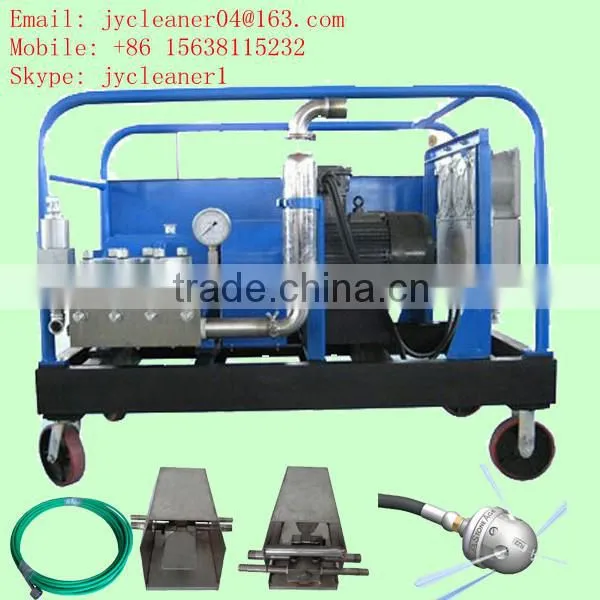

high pressure water jet cleaning machine steel plate cleaning machine
- 200 Set / Sets per Month
- qingdao tianjin shanghai
- Credit Card
- high pressure tank cleaning equipment oil tank cleaning
- professional cleaning equipment high places cleaning equipment
- high pressure chemical cleaning machine chemical cleaning for boilers
- high pressure water pressure cleaning machine sugar refinery machine cleaning equipment
- boat hull cleaning high pressure cleaning machine ship hull cleaning
- condenser tube cleaning equipment condenser cleaning
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | GY |
Model Number: | GYB-3 | Feature: | Critical Cleaning / Residue Free, Rust / Corrosion Inhibitor | Fuel: | Electric |
Certification: | CE | Use: | Descaling / Stripping | Cleaning Process: | Cold Water Cleaning |
Cleaning Type: | High Pressure Cleaner | Industry Used: | Pharmaceutical Cleaning | Material: | Metal / Coil |
Power(W): | 110 KW | Dimension(L*W*H): | 2.3*1.5*1.6m | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
wooden package
Product Description
Specifications
steel plate cleaning machineure:441-1470psi;
2.Water flow: 50lpm ~ 130 lpm;
high pressure water jet cleaning machine steel plate cleaning machine
Specifications:
Max pressure: 1000bar
Water flow: 40 lpm~ 70 lpm
Engine: electric motor drive or diesel engine, power: 75 kw~ 110 kw
Electric-powered: Typically used indoors because there are no fumes and they are quieter.
Diesel-powered: Self-contained and portable so they can be used in the field (no electric cords); all you need is water.
Main Features:
1.For the machine, pump is use the tech. of Germany WOMA.
2.Pressure is stable and reliable, easy to be adjust.
3.It is installed with a high-pressure alarm and high-temperature alarm for water conservation.
4.The high pressure gun is use the stainless steel material, Max pressure 1500bar
5.Has two filter, for inlet water filter out. Could be filter out the tiny particles from the inlet water. Good for long-working life of the pump.
6.Has explosion-proof system, could explosion-proof if you use this machine on power plant.
7.With a high-pressure alarm and high-temperature alarm for water conservation.
8.Could be used on starch factory, steel mill, chemical plant, power plant, for cleaning and maintenance.
Applications:
1.Many area industrial cleaning purpose, heat exchanger tube cleaning, condenser tube cleaning, pipe cleaning, reactor tank cleaning, filter screen cleaning, boil cleaning, tank cleaning, etc…
2.Pipe pressure test, valve / hose pressure test, hydro pressure test, etc
3.Water injection
4.Cement plant pipe cleaning, grease remove from the equipment surface, fouling layer removal
5.Construction industry, car/truck cleaning, mixing drum/tank cleaning, tar/cement/agglutinant cleaning, etc…
6.Food processing plant, mixing tank cleaning, grease/ fouling layer / residual removal, evaporator/boil cleaning, etc
7.Shipyard rust removal, paint removal, ship hull cleaning, boat surface cleaning, dirt removal, sea creatures remove from the hull bottom.
8.Metallurgy plant, heat exchanger tube cleaning, boil, feed tank, warehouse dirt cleaning, descale removal…
9.Machine producing plant, volume / pipe / tank / rust / oxide skin cleaning…
Technical parameter:
Speed of motor ( r/min) | 1480 | Stroke (mm) | 66 | ||
Reduction ratio(i) | 2.761 | Speed of pump (r/min) | 536 | ||
Power (KW) | 75 | 90 | 110 | Plunger diameter (mm) | |
Nominal flow | Rated discharge pressure(Bar) | ||||
m³/h | L/min |
| |||
3 | 50 | 750 | 900 | 1000 | 24 |
3.6 | 60 | 600 | 750 | 900 | 26 |
4.2 | 70 | 600 | 700 | 800 | 28 |
4.8 | 80 | 450 | 550 | 700 | 30 |
5.4 | 90 | 400 | 450 | 550 | 32 |
6 | 105 | 350 | 450 | 550 | 35 |
7.8 | 130 | 300 | 350 | 450 | 40 |
This products could be made according to customer’s request.
If you would like more information, please do not hesitate to contact us . We will reply to you as soon as possible.
Contact information:
Name: Sarah
Skype: jycleaner1
Mobile: +86 15638115232
Company Profile
Our company is located in Henan Province, China. We are professional in the design, manufacture and production of high pressure cleaning machine, water blaster, high pressure pump, etc.
Our cleaning machine can be applied in both industrial and family cleaning, such as shipyard, power plant, starch factory, etc. which are used for pipe cleaning, pressure test, shipyard rust remove, paint remove, building surface cleaning, concrete cutting, etc.
Our company has years of research and experience in first-class design technology, excellent assembly line and good quality control system. Our products are welcomed by customers from all over the world.
We sincerely look forward to cooperating with new and old clients.
