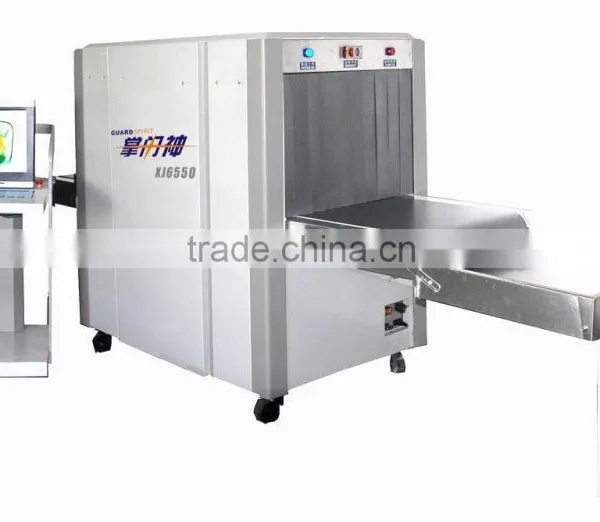

Help CenterX-ray Machine Luggage Scanner XJ6550
Related Products
-
Small Parcel/luggage X Ray Scanner MachineNegotiableMOQ: 1 Unit -
X-ray Security Inspection Machine 19 Inch LCD Screen XJ5335NegotiableMOQ: 1 Unit
-
X-ray Detector Security Inspection XJ5335NegotiableMOQ: 1 Unit
-
X Ray Machine Baggage Security Inspection ScannerNegotiableMOQ: 1 Unit
-
Luggage Security Inspection X-ray Machine for Airport/train Stations XJ8065NegotiableMOQ: 1 Unit
Shenzhen Xinyuantong Electronics Co., Ltd.
Shenzhen Xinyuantong Electronics Co., Ltd.was established in 2000 with the registered capital of RMB 31.5 million, the total business space is 12,000 m2, there are more than 260 employees, including 120 research, engineering and technical personnel; we are one professional high-tech company which provide the solutions to the public safety, and provide the complete production and integration services.
The Company is committed to the technical development and research of “GuardSpirit” series of security products, the developed products have been granted by 28 national patents, and have formed five categories of products including the metal detectors, X-ray baggage scanners, test products for radioactive materials, vehicle chassis inspection products, EOD and anti-explosion products.
Our Company has been committed in the business of access security, security equipments and services for 14 years, and during the period, we have provided safety and security services for hundreds of large-scale events, meetings, exhibitions, political and legal departments, railways, highways, ports and other places, including 26th Summer Universiade Shenzhen 2011, World Expo 2010 Shanghai, 16th Asian Games Guangzhou 2010, 14th FINA World Championship -Shanghai 2011, 24th Winter Universiade Harbin 2009, Olympic Games Beijing 2008, Wuhan-Guangzhou high-speed railway, Beijing-Shanghai high-speed railway and other key events and projects.
| X-ray machine luggage scanner XJ6550 DATA SHEET | |
| Model | XJ6550 |
| X-ray Sensor | Dual Energy L-shaped photodiode array detector |
| Dampproof | Advanced protecting technique to make the machine more durable |
| Grey Level | 16384(14bit) |
| Tunnel Size | 650*500 mm |
| Conveyor Type | Belt conveyor |
| Conveyor Speed | 0.2-0.23 m/s |
| Conveyor Max.Load. | 170kg |
| Dose per Inspection | <1.2μGY |
| Radiation Leakage | <0.1μG/h |
| Film Safety. | √ |
| Resolution | 0.0787mm |
| Penetration | 40mm steel |
| Beam Direction | From bottom |
| Anode Voltage | 100-160kv |
| Anode Current | 0.4-1.2mA |
| Beam Divergence | 80° |
| Cooling | sealed oil cooling + 100% Dutycycle |
| Monitor | 19 inch LCD screen |
| Storage Temperature | -20°C~+70°C |
| Storage Humidity | 10%~95% |
| Operating Temperature | -10°C~+45°C |
| Operating Voltage | 220VAC(+10%~-15%),50Hz±3Hz |
| Power | Standby :220W;Working:550W |
| Weight | 650KG |
| Size | 2400*1090*1440mm |
| IMAGE FUNCTION | |
| Real Time Storage Image | 100,000 pictures |
| Zoom & Zones | 32/64 times enlargement |
| Image Search | Search images according to stored time |
| Image Display | B/W,pseudo color image |
| Alarm | √ |
| Review | √ |
| Density Enhancement | √ |
| Negative/posiyive image | √ |
| Light/Dark Enhancement | √ |
| Inorganic/Organic Stripping | √ |
| Grey Scanning | √ |
| Edge Enhancement | √ |
| One Key Power Off | √ |
| System Self-diagnostic | √ |
| System Status Display | √ |
| Automactic Count | √ |
| Date/Time Display | √ |
| Rush Stop Protection | √ |
| Dangerous Alarm | √ |
| System Failure Alarm | √ |
| Operator Management | Log-in with administrator password |
dimension:
240*109*144cm *1 package, 95*63*116cm *1 package
Total two packages,gross weight 650KG.
