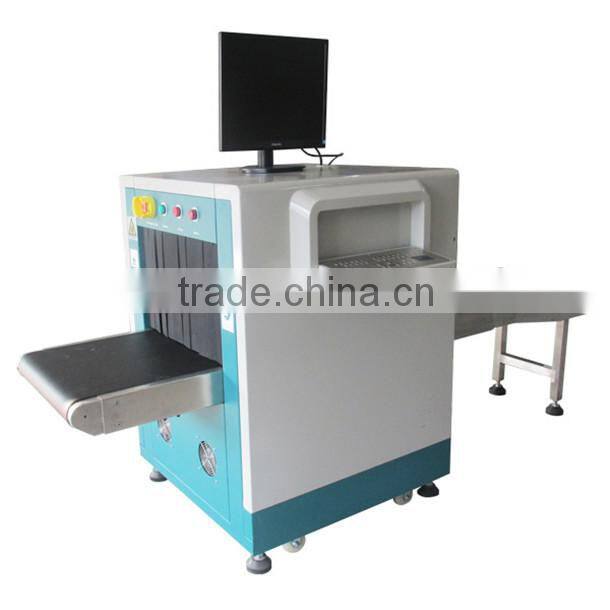

X-RAY BAGGAGE INSPECTION SYSTEM XJ5335
SPECIFICATION
Tunnel Size:530(W)*350(H)mm
Conveyor Speed:0.2m/s
Conveyor Max. Load:50kg
Penetration:34 mm steel
Resolution:Diameter 0.09mm metal wire
Radiation Leakage:Less than 1.0uGY/h (at a distance of 5cm from external housing)
Dose Per Inspection:≤1.2μGy,ISO1600 film security certification. Complying with published international standards
X-ray Sensor:Dual Energy L-shaped photodiode array detector
X-ray Anode Voltage:140Kv
X-ray current:0.7 mA
Monitor:17 inch LCD screen
Hard Disk:160G
Memory:1.0G
Image Grey Level:65536(16 Bits)
Image Presentation:B/W, pseudo color,
Image Disposal Function:image recall, penetration and edge enhancement, negative image, inorganic and organic stripping
Image Storage:10000pictures real time storage
Image Max. Resolution:1024*768pixel
Select Region and Enlarge:Magnification Times 2,4,8
Operating Voltage:220VAC±10%V
Operating Temperature:0°C~45°C
Storage Temperature:-40°C~+70°C
Relative Humidity:10%~95% (Non-condensing)
Gross weight:100KG
Shenzhen Xinyuantong Electronics Co., Ltd.
Shenzhen Xinyuantong Electronics Co., Ltd.was established in 2000 with the registered capital of RMB 31.5 million, the total business space is 12,000 m2, there are more than 260 employees, including 120 research, engineering and technical personnel; we are one professional high-tech company which provide the solutions to the public safety, and provide the complete production and integration services.
The Company is committed to the technical development and research of “GuardSpirit” series of security products, the developed products have been granted by 28 national patents, and have formed five categories of products including the metal detectors, X-ray baggage scanners, test products for radioactive materials, vehicle chassis inspection products, EOD and anti-explosion products.
Our Company has been committed in the business of access security, security equipments and services for 14 years, and during the period, we have provided safety and security services for hundreds of large-scale events, meetings, exhibitions, political and legal departments, railways, highways, ports and other places, including 26th Summer Universiade Shenzhen 2011, World Expo 2010 Shanghai, 16th Asian Games Guangzhou 2010, 14th FINA World Championship -Shanghai 2011, 24th Winter Universiade Harbin 2009, Olympic Games Beijing 2008, Wuhan-Guangzhou high-speed railway, Beijing-Shanghai high-speed railway and other key events and projects.
