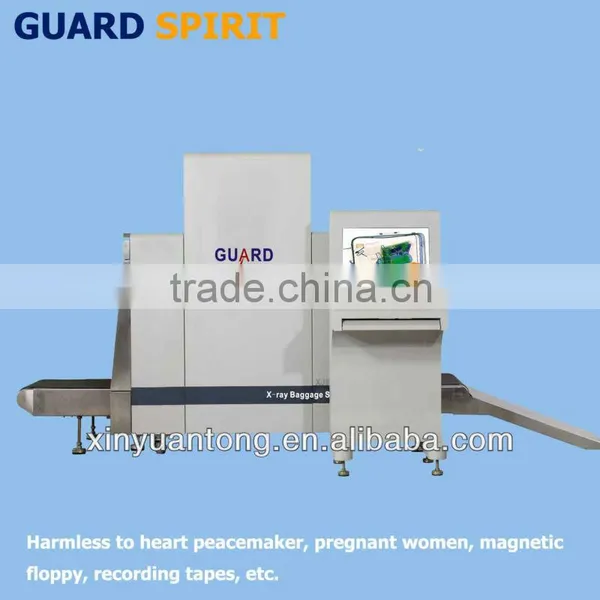

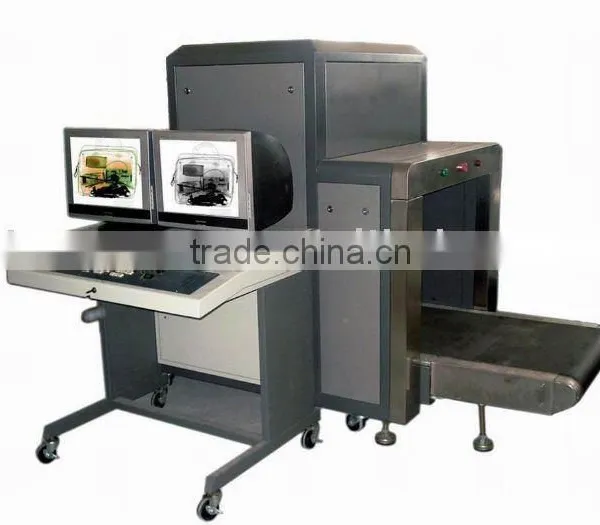

High quality x-ray scanner luggage inspection Surveillance systems XJ8065
Features:
*High resolution images
*Simple User-friendly operation
*Strong Image storage capacity
*Automatic Self-diagnostic maintenance system
*One Key shutdown control
Parameter:
*Tunnel Size:800mm(W)*650mm(H)
*Load Weight:150Kgs
*Conveyor Speed:0.2-0.23m/s
*Radiation Leakage:0.54 μG/h
*Penetration:34mm steel
*X-ray resolution:40WAG
X-Ray Generator:
*X-ray beam direction:From Top
*Beam Divergence:80°
*Tube Voltage:80-160Kv
*Electronic Current:0.2-1.25mA
*Cooling:Sealed oil cooling + 100% Dutycycle
Image Function:
*X-ray Converter Arrangement:Dual Energy L-shaped photodiode array detector
*Inorganic/Organic Stripping:Organic substances display in Orange, Inorganic
substances display in blue, mixtures display in green
*Maximum Image Resolution:1024*768
*Image Storage:100,000pcs
*Image Display Color:Black/White & Color
*Grey Level:65536
*Zone & Zoom:1-9 image zones, 2,4,8 times zooming
*Other Function:Alarm, Review, Density Enhancement, Negative/positive image,
Light/Dark Enhancement, automatic count, One Key Power Off, Working status display, Date & time display, Rush Stop Protection,
Dangerous Alarm, System Failure Alarm etc.
Working Environment:
*Work Temperature & Humidity:0°C~+45°C/ 20%~95%(Non Cooling),
-10°C~+45°C/ 5%~95%(Optional)
*Storage Temperature & Humidity: -40°C~70°C/ 5%~95%(Non Cooling)
*Power:220VAC(+10%~-15%,,50Hz±3Hz)
About us
Shenzhen Xinyuantong Electronics Co., Ltd. and Shenzhen GUARDSPIRIT Metal Detector R&D Center professionally develop, produce, sell, manage and service“GUARDSPIRIT” security products and its facilities. It is a high-end new technology enterprise. Shenzhen Xinyuantong Electronics Co., Ltd. was founded in July, 2000.The Registered brand “GUARDSPIRIT” has been well accepted in the market and the results have been tremendous. Due to the incessant efforts on research and development for 6 continuous years, we have been able to develop 21 different variants of metal detectors and 5 model x-ray baggage inspection machine. They are now on sale throughout the country, and the demand for exports has also gone up significantly year on year. Shenzhen Xinyuantong Electronics Co., Ltd has achieved the status of the leader in Security Equipment in China, and is clearly established as the Number One in the Walk-through Metal Detector and X ray bagagge scanner segment.
Shenzhen Xinyuantong Electronics Co., Ltd products are mainly supply for Airports, Railway Stations, Places of Vital Installations, Theatres, Places of Recreation, Jails, Courtrooms, Highly Restricted Government Buildings, Large Corporate Houses and Factories, Places of Worship and all other zones where security is a key area of thrust.
