High Pressure Large Diameter UHMWPE Steel Composite Pipe
US$ 100 - 150
MOQ: 50 Meters
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Buoy&Pipe
Material:
UHMWPE / steel
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Plastic-steel Composite PipeUS$ 100 - 500MOQ: 100 Meters -
Large Diameter Steel-Plastic Composite Pipeline With Flanging ConnectionUS$ 100 - 500MOQ: 100 Meters
-
1200MM Plastic-steel Composite PipeUS$ 100 - 600MOQ: 100 Meters
-
Composite Pipeline for Dredging and MiningUS$ 100 - 500MOQ: 100 Meters
-
Plastic-steel Composite PipeUS$ 100 - 500MOQ: 100 Meters
Place of Origin
Shandong, China
Brand Name
Buoy&Pipe
Material
UHMWPE / steel
Outer Diameter
OD20mm-DN1200mm
Length
6m~12m
Thickness
Customised
Standard
ISO9001/14001/18001
Color
Customized
High pressure large diameter UHMWPE steel composite pipe
Product Description
High pressure large diameter UHMWPE steel composite pipe specifications:
What is UHMWPE steel composite pipe?
•UHMWPE-steel composite pipe also named high wear resistant PE-steel composite pipe, it is combined by carbon steel pipeline and UHMWPE pipeline through special technical method, and the diameter of the composite pipe is available from DN200~DN1200.
Dimension of the UHMWPE -steel composite pipe:
Specification(mm) |
UHMWPE wall thickness mm
|
steel pipe wall thicknessmm |
Pressure MPa |
200 |
10.0 |
6.0 |
6.0 |
250 |
10.0 |
6.0 |
5.0 |
300 |
10.0 |
6.0 |
5.0 |
350 |
15.0 |
6.0 |
4.0 |
400 |
15.0 |
8.0 |
4.0 |
450 |
15.0 |
8.0 |
3.5 |
500 |
15.0 |
8.0 |
3.0 |
550 |
15.0 |
8.0 |
3.0 |
600 |
15.0 |
10.0 |
3.0 |
650 |
20.0 |
10.0 |
3.0 |
700 |
20.0 |
10.0 |
3.0 |
750 |
20.0 |
10.0 |
2.5 |
800 |
20.0 |
10.0 |
2.5 |
850 |
20.0 |
12.0 |
3.0 |
900 |
20.0 |
12.0 |
2.5 |
1000 |
25.0 |
12.0 |
2.5 |
1200 |
25.0 |
12.0 |
2.0 |
production flow
| The production flow of the High pressure large diameter UHMWPE steel composite pipe : |
First, Produce the UHMWPE pipeline:
The UHMWPE pipes are continually extruded by special extruders and moulds. Here is the brief introduction of
UHMWPE pipe production:
1. The UHMWPE powder will be melted together with a small amount of paraffin, carbon black in high temperature
2. Different pipes with different diameter and wall thickness will need to make different moulds.
3. the length of the UHMWPE pipes could be cut according to customers requirements
4. The color of UHMWPE pipes is the original color of the raw material, and it is specially processed during production.
Second:Composite the UHMWPE pipe and steel pipe together
With special equipment, infix the UHMWPE to steel pipe, make sure there is not gap between UHMWPE pipe and steel pipe

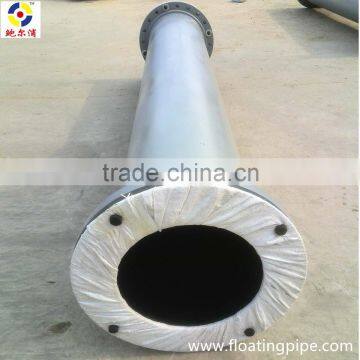

Third, Flange the UHMWPE pipe on the two side
Advantages:
| Advantages of the UHMWPE steel composite pipe: |
•1, Bear high pressure, the UHMWPE -steel composite pipe can bear pressure from 5~8 Mpa.
•2,High wear resistant ability, amoung all the plastic materials, UHMWPE is the best one for wear resistant ability, cause its average molecular weight is above 1.5million, while the HDPE material is only 0.3~0.5 million, and by test the UHMWPE pipeline is 4 times wear resistant than HDPE pipeline.By lining the UHMWPE pipeline in side the steel pipe, which can increse 6 times wear resistant ability.
•3,Low water resistant, low friction coefficient, non scaling, save fuel engine cost, because the roughness of the UHMWPE pipeline is only 0.00022, while HDPE is 0.01 and steel is 0.1. By lining the UHMWPE Pipeline inside the steel pipeline, the whole pipeline will save at least 20% fuel engine cost.
•4.Anti corrosion, the inner UHMWPE pipe with very stable chemical property, it is anti corrosion from strong acid, alkali, salt, water, sewage, soil corrosion, which increase the using life of the whole pipeline perfectly.
