1200MM Plastic-steel Composite Pipe :
Company: Shandong Buoy&Pipe Industry Co.,Ltd
Business type: Manufacturer
Products: UHMWPE pipes&UHMWPE Navigation Aids
Employees: about 200 employees, professional R&D team, professional engineers& installation team
Production Lines: 25 lines, with annual production capacity of 10,000 metric tons
UHMWPE Pipes Sizes: 6’‘, 8’‘,10’‘, 12’‘,14’‘, 16’‘, 18’‘,20’‘,24’‘,26’‘,28’‘,30’‘.
UHMWPE Navigation Buoy Size: CMB1.0M, CMB1.2M, CMB1.5M, CMB1.8M, CMB2.1M, CMB2.4M, CMB3.0M
Q: Why should you use UHMWPE Dredge pipes?
A: Because it will save your time and money!
Q: How can UHMWPE pipes do this?
A:UHMWPE Piping Advantages:
Q: Why should you choose Shandong Buoy&Pipe Industry Co.,Ltd
A: a)Professional: we have more than 10 years experiences in UHMWPE field, with professional R&D team, and technology team
b) Increasing Production Capacity: with 25 production lines, annual production capacity could reach more than 20,000 metric tons, with various specifications ranging from 77mm to 1200mm, or customized.
c) Honest: we are committed to supply the best UHMWPE pipes with 100% virgin material for customers.
What is UHMWPE?
Ultra-high molecular weight polyethylene (UHMWPE) is a new kind of engineering
thermoplastics with more than 3 million viscosity-average molecular weight. Ultra-high molecular weight polyethylene pipe has superior performance over conventional HDPE pipe such as very high wear resistance, impact resistance, excellent resistance to internal pressure strength, resistance to environmental stress cracking, intrinsically self-lubricating, anti-adhesion, low temperature resistance and excellent chemical resistance.
Molecular Weight Comparison between UHMWPE&HDPE: The higher molecular weight, the better wear resistance .
Material;Ultra high molecular weight polyethylene material,
3.5 million to 9.2 million(Ticona GUR material)
Production Lines: 25, with annual production capacity of
20,000 metric tons

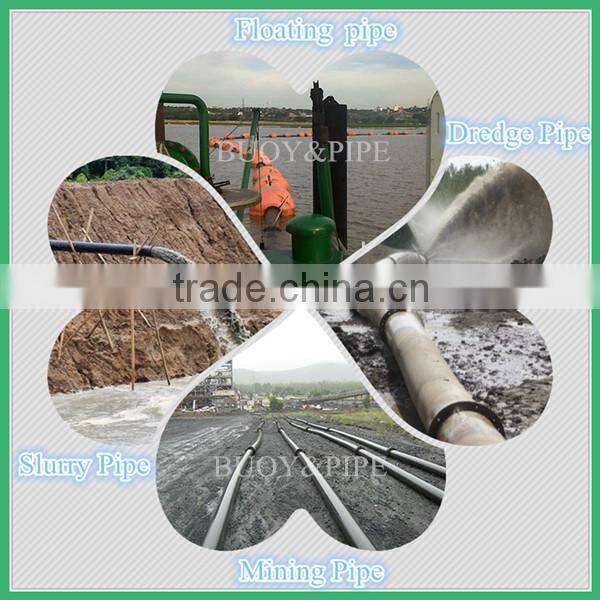

UHMWPE Pipe Applications:
UHMWPE Pipe Specifications:

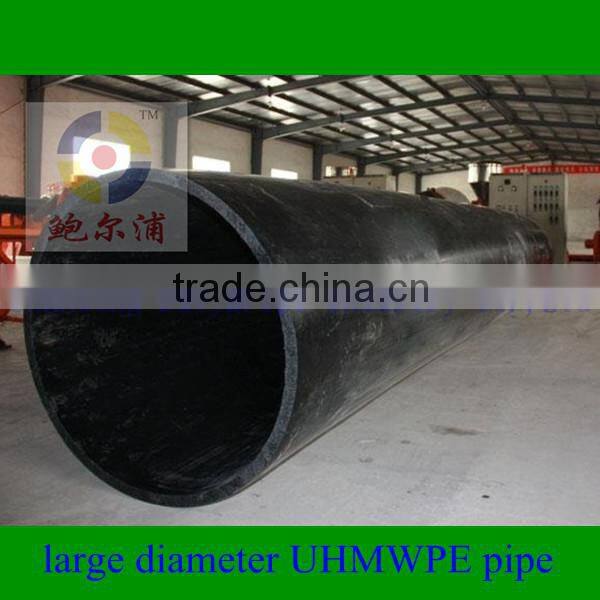

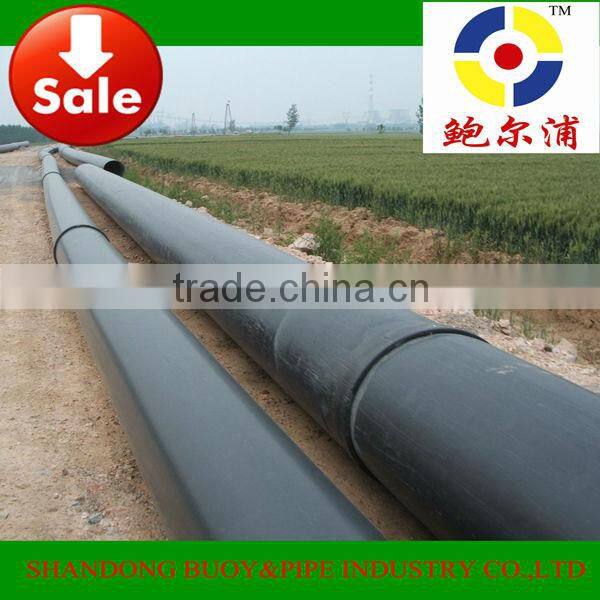

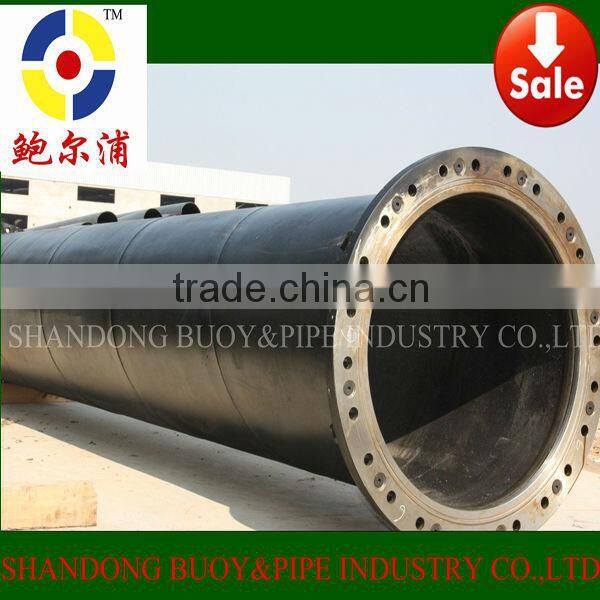

Large Diameter UHMWPE Plastic Pipe Images:
Advantages of UHMWPE Pipes:
Longer Life
With a wear resistance 4 to 7 greater than Q235 Steel or 10 times that of HDPE (PE100) pipes under the same operating conditions, UHMWPE Pipe will give you far superior life under most operating conditions. UHMWPE is an inexpensive alternative to metals and ceramics
Non-Scaling
Because of its very smooth surface and self-lubricating properties, UHMWPE Pipe has far superior anti-scaling properties to any other pipeline on the market today. A non-stick factor that leads to its strength in the marine industry, preventing barnacle formation.
Lower Maintenance Costs, Less Maintenance Time, Less Downtime, Less Loss of Production
The far superior collaboration of wear resistance and weight reduction (0.93 SG) means the time between pipe replacements and/or rotations can be increased whilst simultaneously reducing installation management constraints of lifting gear and excavation requirements.
Reduced Pumping Costs
Along with the benefits mentioned above, UHMWPE Pipes also offer significant cost savings through increased pumping efficiency. With a surface roughness of 0.00022mm UHMWPE Pipe is extremely smooth and has resultant properties superior to PTFE (Teflon). Quantifying by example UHMWPE has a friction coefficient of 0.05, compared to 0.28 for HDPE or 0.58 for Steel (ISO 8295). This means less friction, less pressure loss and greatly reduced energy inputs to deliver the same result.
Chemical and Corrosion Resistance
With chemical resistance second only to PTFE (Teflon), UHMWPE pipe will offer superior life to other pipeline products in acidic or corrosive applications under 85 degrees C.
Lower Installation Costs
UHMW PE Pipe is connected by flanges and fastened by bolts and nuts.It has merits of quick connection,easy to dismantle,high strength,good tightness,etc.There is no need to do corrosion proof and rare trouble spots in the pipeline.It saves a lot of installation and maintenance cost and increases benefits.
Lower Maintenance Costs
The superior wear resistance enables the UHMWPE pipes to have longer service life than steel pipes, and effectively reduce the rollover times for the UHMWPE pipelines, which minimize the maintenance costs for the project.
Packaging: by poly bag or wooden box according to customers requirement
Shipping: by containers
