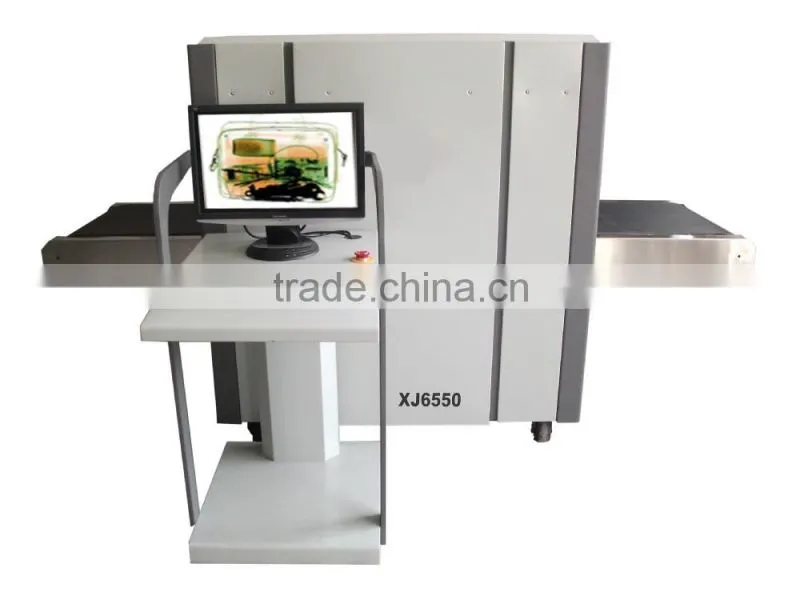

Metro Station Security X-ray luggage scanner XJ6550
Features:
*High resolution images
*Simple User-friendly operation
*Strong Image storage capacity
*Automatic Self-diagnostic maintenance system
*One Key shutdown control
Parameter:
*Tunnel Size……………650mm(W)*500mm(H)
*Load Weight…….........150Kgs
*Conveyor Speed……..0.2-0.23m/s
*Radiation Leakage…..0.57 μG/h
*Penetration…………..34mm steel
*X-ray resolution…...40AWG
X-Ray Generator:
*X-ray Beam Direction………From bottom
*Beam Divergence……….. …80°
*Tube Voltage………………..80-160Kv
*Electronic Current…………0.2-1.25mA
*Cooling……………………Sealed oil cooling + 100% Dutycycle
Image Function:
*X-ray Converter Arrangement…. Dual Energy L-shaped photodiode array detector
*Inorganic/Organic Stripping…… ..Organic substances display in Orange, Inorganic
substances display in blue, mixtures display in green
*Maximum Image Resolution……..1024*768
*Image Storage……………………100,000pcs
*Image Display Color………………Black/White & Color
*Grey Level………………………..65536
*Zone & Zoom…………………... .1-9 image zones, 2,4,8 times zooming
*Other Function……………………Alarm, Review, Density Enhancement, Negative/positive image,Light/Dark Enhancement, automatic count, One Key Power Off, Working status display, Date & time display, Rush Stop Protection, Dangerous Alarm, System Failure Alarm etc…
Working Environment:
*Work Temperature & Humidity…. …0°C~+45°C/ 20%~95%(Non Cooling),
-10°C~+45°C/ 5%~95%(Optional)
*Storage Temperature & Humidity….-40°C~70°C/ 5%~95%(Non Cooling)
*Power………………………………….220VAC(+10%~-15%,,50Hz±3Hz)
