XJ8065 X-ray baggage scanner

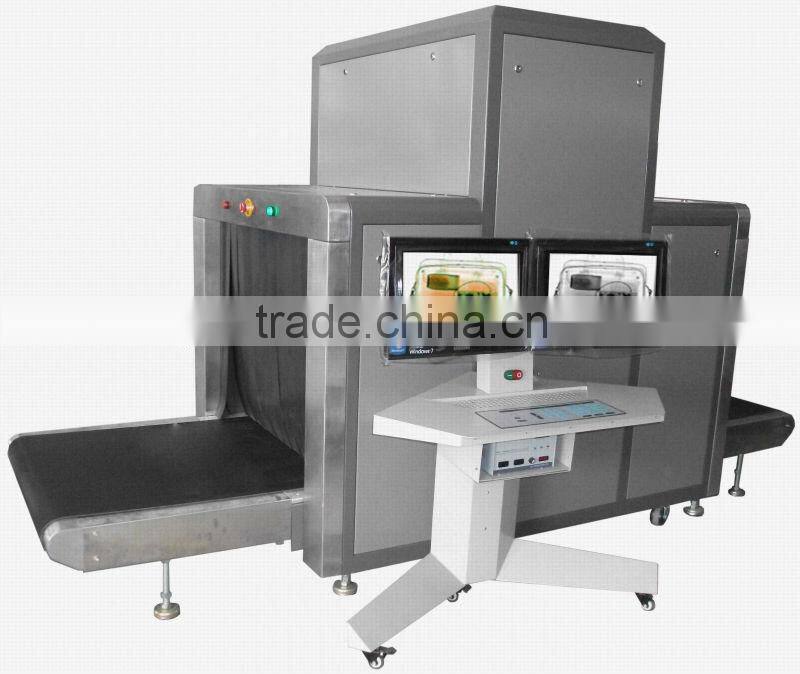

(1)Picture of X-ray baggage scanner
(2 Monitor also can make)
General Specifications
Tunnel Size : 800(W)×650(H)mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 200 kg
Single inspection dosage: < 1.5μGy
Wire Resolution: 0.101mm metal line
Steel Penetration: 34MM
Film Safety: For ISO 1600
X-RAY GENERATOR
Orientation: Downward
Tube Current:0.4~0.7MA(adjustable)
Anode Voltage:100~160KV(adjustable)
Angle:60°
Generator cooling/working periods:
Sealed oil bath with forced air/100%
OPERATING ENVIRONMENT
Storage Temperature: -20oC to 60oC
Operating Temperature:0oC to 45oC
Relative Humidity:
20 to 95% non-condensing
System Power:220 VAC (±10%) 50±3HZ
Power wastage:1.0 KW (Max)
Noise<65DB
X-RAY Sensor:
L-shaped array detector 24bit
Multi-energy: High/low energy: Switch from high energy to low energy
Color material identification: Organic objects in orange, inorganic objects in blue,
mixture in green
Assist to detect drug and explosive powder

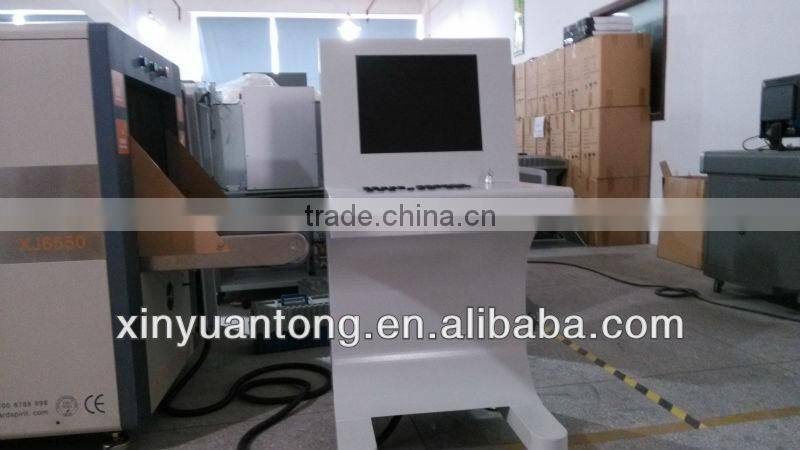

Product show
