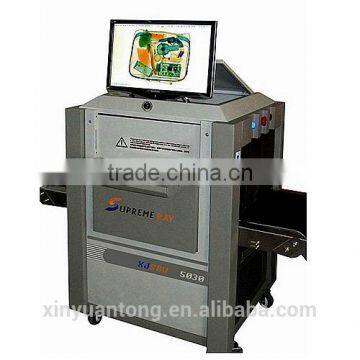

XJ5030 X-ray Image System

General Specifications

Tunnel Size : 500(W)×300(H)mm

Conveyor Speed: 0.22m/s

Conveyor Max Load: 150 kg

Single inspection dosage: < 1.32μGy

Wire Resolution: 0.0787mm metal line

Steel Penetration: 12MM

Film Safety: For ISO 1600

X-RAY GENERATOR

Orientation: Upward

Tube Current:0.4~0.7MA(adjustable)

Anode Voltage:80KV(adjustable)

Angle:60°

Generator cooling/working periods:

Sealed oil bath with forced air/100%

OPERATING ENVIRONMENT

Storage Temperature: -20oC to 60oC

Operating Temperature:0oC to 45oC

Relative Humidity:

20 to 95% non-condensing

System Power:220 VAC (±10%) 50±3HZ

Power wastage:1.0 KW (Max)

Noise<65DB

X-RAY Sensor:

L-shaped array detector

24bit

Single energy

Image Performance System:

Display: High-resolution 19 inch color LCD display

Color quality: 24-Bit real colors based on materials

Edge enhancement: Object contour edge is more distinct

Super image enhancement: Image detail is more distinct

High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly

Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.

Magnifier:                         Partial magnifying function

Brightening/dimming:       Increase/Decrease brightness of image

Image recurrence:              Display the previous twenty images and process any one of them

Image restoration:             Restore image to initial status

Image storage:                   Real-time store any image and process it in operation status

Special features:

Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time

Safety ray: Ray is transmitted under automatic control, avoiding the error

One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient

Eagle eye: Capable of expediently observing the magnifying area

Self-diagnosis function: Give message automatically if malfunction for prompt maintenance

For transportation of x-ray luggage scanner, we use  plywood wooden box

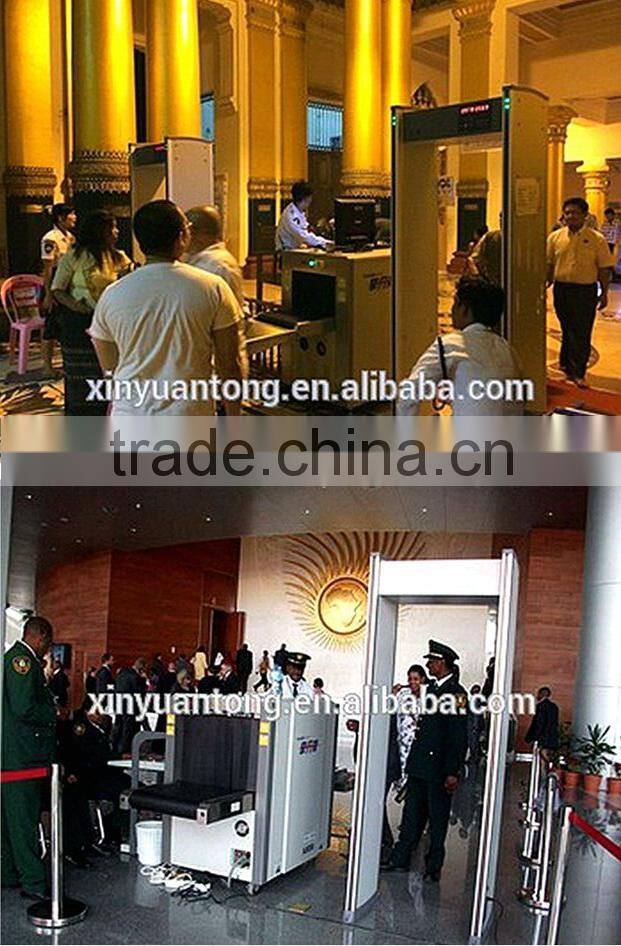

 Application

Airports, railway stations, banks, courts, Embassies, Jail, Entertainment places, Gymnasiums, Exhibition Center etc.
