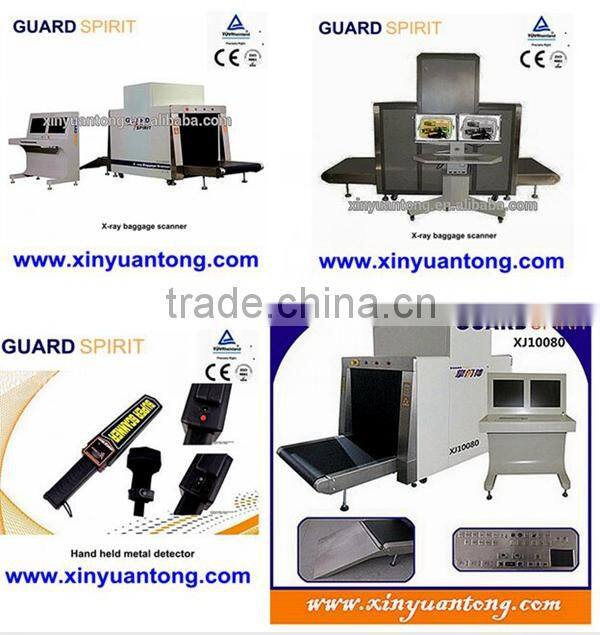

XJ10080 GUARD SPIRIT 2015 hot model X-ray Inspection System

General Specifications

Tunnel Size : 1000(W)×800(H)mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 230 kg
Single inspection dosage: < 1.5μGy
Leakage radiation: <0.2μGy/h
Wire Resolution: 38AWG
Steel Penetration: 38MM armor plate
Film Safety: For ISO 1600

X-Ray Generator
Orientation: Downward
Tube Current:0.4~0.7MA(adjustable)
Anode Voltage:100~160KV(adjustable)
Angle: 60°
Generator cooling/working periods:
Sealed oil bath with forced air/100%

Operating Environment
Storage Temperature: -20oC to 60oC
Operating Temperature: 0oC to 45oC
Relative Humidity:
20 to 95% non-condensing
System Power: 220 VAC (±10%) 50±3HZ
Power wastage: 1.0 KW (Max)
Noise<58DB

X-Rray Sensor:
L-shaped array detector 24bit

Image Performance System:
Display: High-resolution 19 inch color LCD display
Color quality: 24-Bit real colors based on materials
Edge enhancement: Object contour edge is more distinct
Super image enhancement: Image detail is more distinct
High penetration display: Increase the contrast of bright area in image to make the area that is easy to

penetrate appear more clearly
Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.
Magnifier: Partial magnifying function
Brightening/dimming: Increase/Decrease brightness of image
Image recurrence: Display the previous twenty images and process any one of them
Image restoration: Restore image to initial status
Image storage: Real-time store any image and process it in operation status

Multi-energy: High/low energy: Switch from high energy to low energy
Color material identification: Organic objects in orange, inorganic objects in blue,
mixture in green
Assist to detect drug and explosive powder

Special features:
Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time
Safety ray: Ray is transmitted under automatic control, avoiding the error
One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
Eagle eye: Capable of expediently observing the magnifying area
Self-diagnosis function: Give message automatically if malfunction for prompt maintenance

For transportation of x-ray luggage scanner, we use  plywood wooden box

 Application

Airports, railway stations, banks, courts, Embassies, Jail, Entertainment places, Gymnasiums, Exhibition Center etc.

Our Company (Shenzhen Xinyuantong Electronics Co., Ltd., hereinafter “Company”) was established in 2000 with the registered capital of RMB 31.5 million, the total business space is 12,000 m2, there are more than 260 employees, including 120 research, engineering and technical personnel; we are one professional high-tech company which provides the solutions to the public safety, and provides the complete production and integration services.
