Discharge Pipe price

Specifications

Discharge pipe price:
Wear resistance
corrosive resistance
light in weight
fuel saving

Name: Discharge Pipe price





Advantages of UHMWPE discharge pipe:





Longer Life







With a wear resistance 4 to 7 greater than Q235 Steel or 10 times that of HDPE (PE100) pipes under the same operating conditions, UHMWPE Pipe will give you far superior life under most operating conditions.







Lower Maintenance Costs, Less Maintenance Time, Less Downtime, Less Loss of Production







The far superior collaboration of wear resistance and weight reduction (0.93 SG) means the time between pipe replacements and/or rotations can be increased whilst simultaneously reducing installation management constraints of lifting gear and excavation requirements.







Reduced Pumping Costs







Along with the benefits mentioned above, UHMWPE Pipes also offer significant cost savings through increased pumping efficiency. With a surface roughness of 0.00022mm UHMWPE Pipe is extremely smooth and has resultant properties superior to PTFE (Teflon). Quantifying by example UHMWPE has a friction coefficient of 0.05, compared to 0.28 for HDPE or 0.58 for Steel (ISO 8295).







This means less friction, less pressure loss and greatly reduced energy inputs to deliver the same result.







Chemical and Corrosion Resistance







With chemical resistance second only to PTFE (Teflon), UHMWPE pipe will offer superior life to other pipeline products in acidic or corrosive applications under 85 degrees C.







Lower Installation Costs







The strength of UHMWPE pipes can offer many savings in installation costs:











• High compressive strength means reduced size or eliminating excavations (greater than 1.5x that of HDPE)
• Combination of strength and flexibility (>250% tensile elongation) means concrete bases are not required on wetlands and difficult terrain
• High strength and flexibility provides greater protection against damage due to ground subsidence, earthquakes or other unexpected movement and loading of the pipeline
• Can be laid directly on the seabed









Application of UHMWPE discharge pipes:





1. Dredging Industry: Floating dredge pipe for river channel/sea shore/lake/pond, sand suction/slurry dredge



2. Mining industry: mine powder, mine slurry, mine tailings, mine waste rock delivery



3. Sea engineering: Sea water desalinization, bunder dredging



4. Chemical industry: mud and corrosive medium with slag delivery



5. Gas & Oil Industry: Crud oil,petroleum and natural gas transport

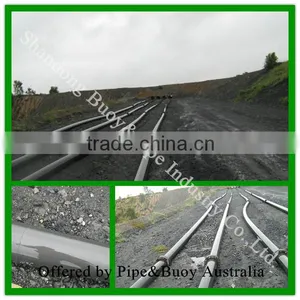

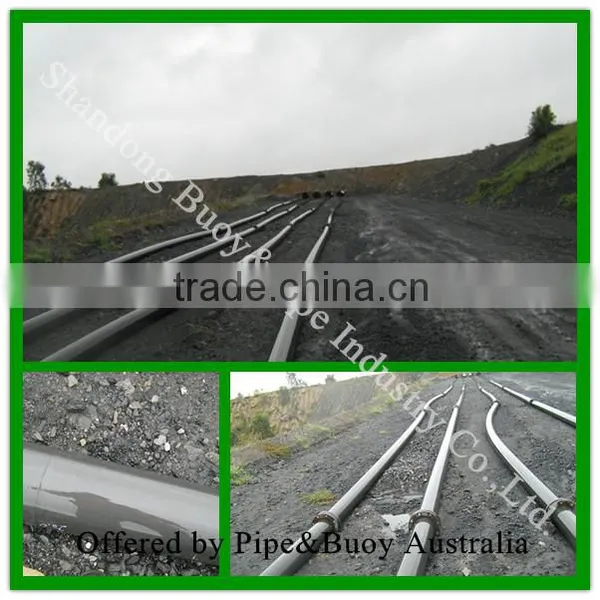

UHMWPE pipes have been widely used in Mine Tailings Discharge, Sand & Slurry Dredging,  Chemical Industry, Gas & Oil field etc.



 UHMWPE Pipe Specifications:









About our company:



About our pipes:



Materials:



UHMWPE Pipe Production Lines:





UHMWPE Pipe Production:





Quality Control:





 Certificate of our pipes:



Contact  with us:





Our Mission:







Completely specifications and high level service timely for you.



Larger production capability and shorter lead time for you.



Superior Quality and competitive price for you.



And OEM is also permitted for you.











 Feel free to call ‘ 86-189 6356 5106 ’, our professional pipeline solution for you to solve any technical problems.
