Help CenterWater/oil/mud/cement Discharging UHMWPE Pipe
Related Products
water/oil/mud/cement discharging UHMWPE pipe
Advantages of water/oil/mud/cement discharging UHMWPE pipe:
Longer Service Life
With a wear resistance 4 to 7 greater than Q235 Steel or 10 times that of HDPE (PE100) pipes under the same operating conditions, UHMWPE Pipe will give you far superior life under most operating conditions. UHMWPE is an inexpensive alternative to metals and ceramics.
Non-Scaling
Because of its very smooth surface and self-lubricating properties, UHMWPE Pipe has far superior anti-scaling properties to any other pipeline on the market today. A non-stick factor that leads to its strength in the marine industry, preventing barnacle formation.
Lower Maintenance Costs, Less Maintenance Time, Less Downtime, Less Loss of Production
The far superior collaboration of wear resistance and weight reduction (0.93 SG) means the time between pipe replacements and/or rotations can be increased whilst simultaneously reducing installation management constraints of lifting gear and excavation requirements.
Reduced Pumping Costs
Along with the benefits mentioned above, UHMWPE Pipes also offer significant cost savings through increased pumping efficiency. With a surface roughness of 0.00022mm UHMWPE Pipe is extremely smooth and has resultant properties superior to PTFE (Teflon). Quantifying by example UHMWPE has a friction coefficient of 0.05, compared to 0.28 for HDPE or 0.58 for Steel (ISO 8295). This means less friction, less pressure loss and greatly reduced energy inputs to deliver the same result.
Chemical and Corrosion Resistance
With chemical resistance second only to PTFE (Teflon), UHMWPE pipe will offer superior life to other pipeline products in acidic or corrosive applications under 85 degrees C.
Lower Installation Costs

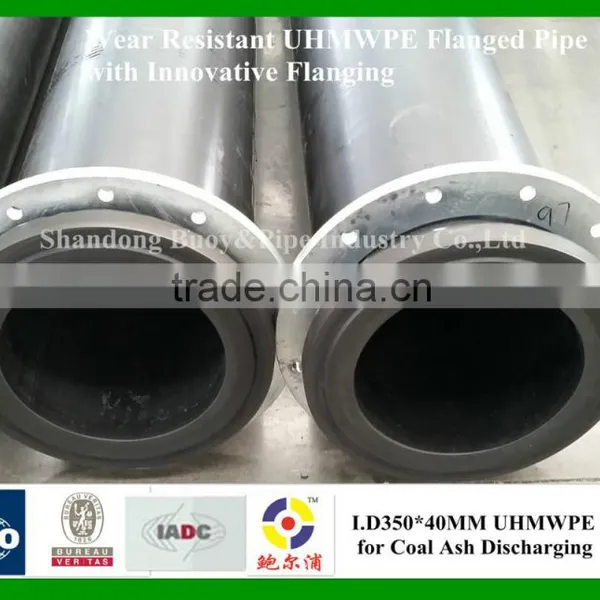

UHMW PE Pipe is connected by flanges and fastened by bolts and nuts.It has merits of quick connection,easy to dismantle,high strength,good tightness,etc.There is no need to do corrosion proof and rare trouble spots in the pipeline.It saves a lot of installation and maintenance cost and increases benefits.
Lower Maintenance Costs
The superior wear resistance enables the UHMWPE pipes to have longer service life than steel pipes, and effectively reduce the rollover times for the UHMWPE pipelines, which minimize the maintenance costs for the project.
Company: Shandong Buoy&Pipe Industry Co.,Ltd
Business type: Manufacturer
Products: UHMWPE pipes&UHMWPE Navigation Aids
Employees: about 200 employees, professional R&D team, professional engineers& installation team

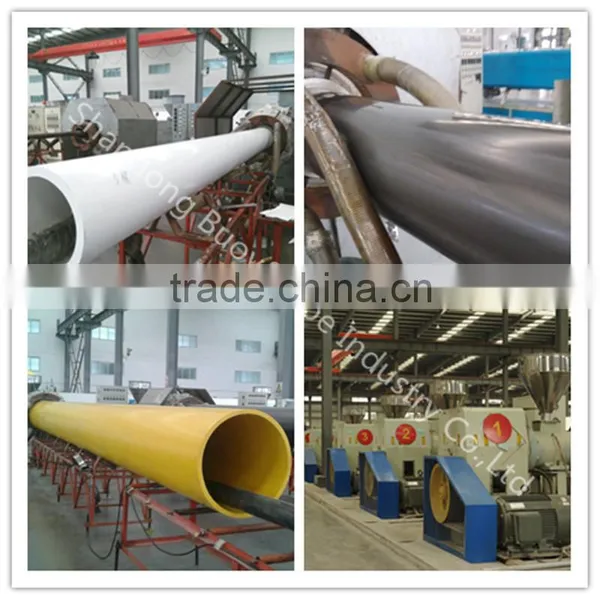

Production Lines: 25 lines, with annual production capacity of 10,000 metric tons
water/oil/mud/cement discharging UHMWPE pipe : Inner Diameter 77mm to 1200mm, can be customized.
UHMWPE Navigation Buoy Size: CMB800 CMB1200 CMB1500 CMB1800 CMB2100 CMB2400 CMB3050 CMB3500
What is UHMWPE?
Ultra-high molecular weight polyethylene (UHMWPE) is a new kind of engineering
thermoplastics with more than 3 million viscosity-average molecular weight. Ultra-high molecular weight polyethylene pipe has superior performance over conventional HDPE pipe such as very high wear resistance, impact resistance, excellent resistance to internal pressure strength, resistance to environmental stress cracking, intrinsically self-lubricating, anti-adhesion, low temperature resistance and excellent chemical resistance.

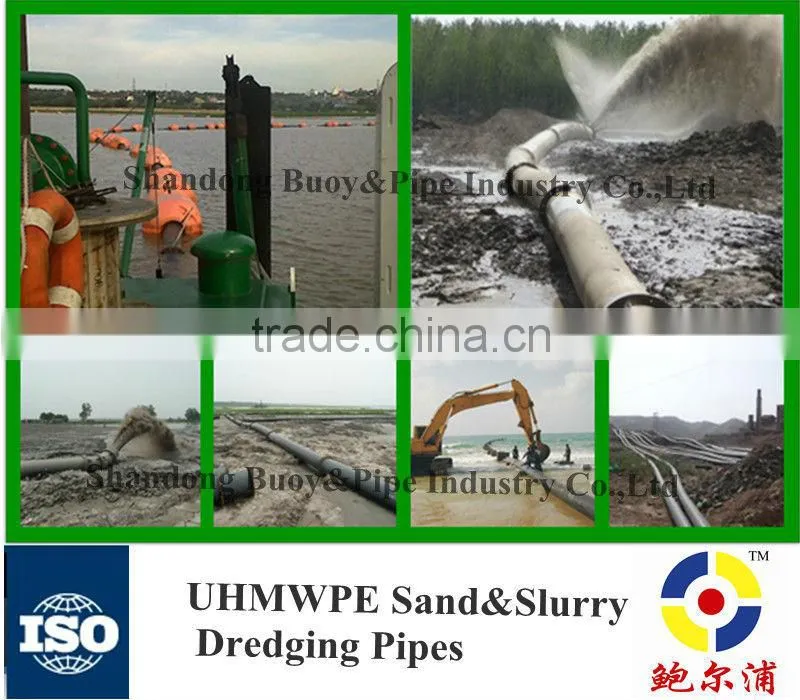

water/oil/mud/cement discharging UHMWPE pipes Showed in the Projects as Below:
