CMB UHMWPE Mooring Buoy Characteristics:
Company: Shandong Buoy&Pipe Industry Co.,Ltd
Business type: Manufacturer
Products: UHMWPE pipesUHMWPE Navigation AidsUHMWPE plates
Employees: about 200 employees, professional R&D team, professional engineers& installation team
Production Lines: 25 lines, with annual production capacity of 10,000 metric tons
UHMWPE Pipes Sizes: inner diameter from 77mm to 1200mm, with different wall thicknesses, all the pipes can be customized according to the specified project.
UHMWPE Navigation Buoy Size: CMB1.0M, CMB1.2M, CMB1.5M, CMB1.8M, CMB2.1M, CMB2.4M, CMB3.0M
Certificates:

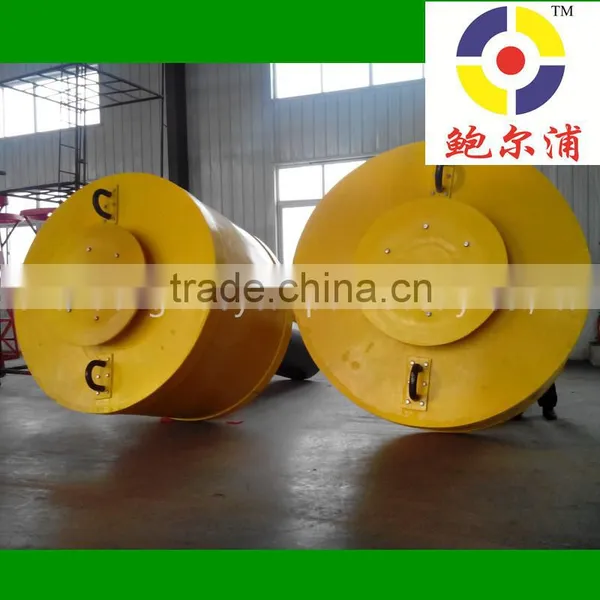

BUOY&PIPE UHMWPE Mooring Buoy:
A mooring buoy is used to moor or fix vessels, with accessories to suit. A bridle chain, short chain, half chain, long chain as well as connection shackles, end shackles, swivel shackles can all be used to help secure a vessel and/or equipment.
Specifications of BUOY&PIPE UHMWPE Mooring Buoy:
| Model | Diameter(mm) | Buoying Depth(m) | Freeboard(mm) | Focal Plane Height(mm) | Net Weight(kg) | Height(mm) | Reserve Buoyancy(kg) |
| CMB800 | 800 | 2-10 | 450 |
1580 | 195 | 2628 | 230 |
| CMB1200 | 1200 | 3-15 | 510 | 2040 | 550 | 3380 | 570 |
| CMB1500 | 1500 | 4-20 | 632 | 2524 | 681 | 4300 | 1012 |
| CMB1800 | 1800 | 6-30 | 722 | 3031 | 1686 | 5134 | 1546 |
| CMB2100 | 2100 | 8-40 | 800 | 3518 | 1900 | 5757 | 2450 |
| CMB2400 | 2400 | 10-50 | 920 | 4040 | 2973 | 6930 | 4015 |
| CMB3050 | 3050 | 15-60 | 1114 | 5164 | 3490 | 7610 | 7646 |
| CMB3500 | 3500 | 20-70 | 1240 | 6090 | 3863 | 8520 | 11380 |
Structure of BUOY&PIPE UHMWPE Mooring Buoy:

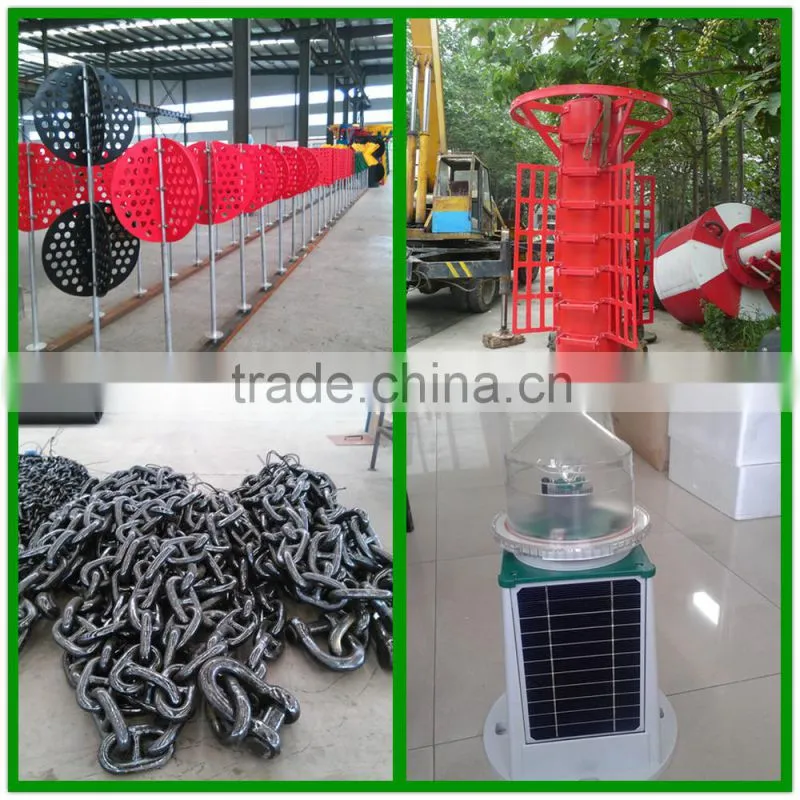

Accessories of BUOY&PIPE UHMWPE Mooring Buoy:
What is UHMWPE?
Ultra-high molecular weight polyethylene (UHMWPE) is a new kind of engineering thermoplastics with more than 3 million viscosity-average molecular weight. Ultra-high molecular weight polyethylene pipe has superior performance over conventional HDPE pipe such as much high wear resistance, impact resistance, excellent resistance to internal pressure strength, resistance to environmental stress cracking, intrinsically self-lubricating, anti-adhesion, low temperature resistance and excellent chemical resistance.
Plastic(Ultra PE) Marine Navigation Mark Buoy in Deployment Showed in the Photos as Below:
For more technical information please contact with us:
