Automatic Breakfast Cereals Making Machinery
- 60 Set / Sets per Month
- qing dao
- T/T
-
mobile soft serve ice cream machine
-
2015 Commercial snack machine hot dog machine hot dog making machine on sale
-
2015 high quality popcorn machine A commercial popcorn and cotton candy machine
-
2015 high quality popcorn machine A industrial popcorn maker Aimee Liu
-
delicious commercial popcorn making machine A high quality popcorn maker gas heating mode
-
2015 high quality popcorn machine A
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | SBN |
Model Number: | SLG70/85 Corn Flakes Machinery | Application: | Other, Breakfast Cereals Making Machinery | Voltage: | 380v/415v depend on local voltage |
Power(W): | 110-220kw | Weight: | 10T | Dimension(L*W*H): | 48.5*4*5m |
Certification: | CE SGS BV | Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Industrial Breakfast Cereals Making Machine
1.Introduction of Breakfast Cereals Making Machine
Breakfast cereals processing machinery has the following advantages:widely adoption of materials, diversiform final products, easy producing craft, fully automatic and so on. One mold can take one new kinds of final products,such as flower shape,ring shape,nail shape,star shape,ball shape etc, so it is developing fast and easy. It is fully automatic with mixing materials, extrusion, shaping, drying,spraying sugar etc.
2.Equipment List of Breakfast Cereals Making Machine
Mixer→ Screw conveyor→Twin screw extruder→ Air conveyor→ Three layer dryer→Hoister→Melting Machine→Sugar Sprayer→ Air compressor→Roller→Uphill Oven →Cooling conveyor
3.Photos of Breakfast Cereals for your reference
4.Die and Mould of Breakfast Cereals Production
With the following mould,we can get different shape breakfast cereals
5.Technical Parameters of Breakfast Cereals Making Machine
Model Parameter | SLG 65-III Breakfast cereals processing line | SLG70-II Breakfast cereals processing line | SLG85-II Breakfast cereals processing line |
Installed Capacity | 150KVA | 220KVA | 280KVA |
Power | 80KW | 90KW | 180KW |
Output | 150-160KG/H | 240-260KG/H | 500-600KG/H |
Dimension | 18*2*4m | 22*2*4m | 26*2*5m |

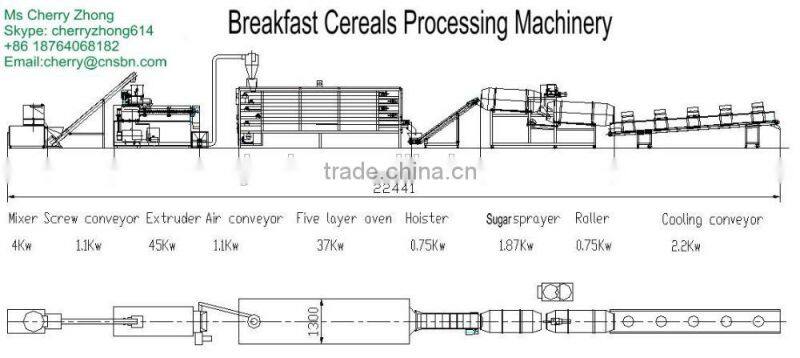

6.Flow chart of Breakfast Cereals Making Machine

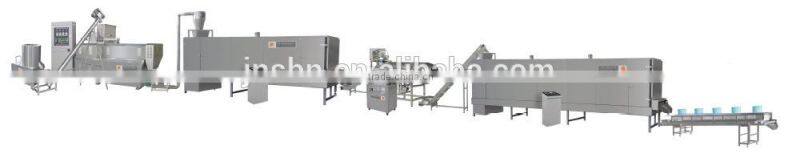

7.Machine photos of Breakfast Cereals Making Machine
For the Breakfast Cereals Production,they need the Mixer machine,Twin Screw Extruder,Drying Oven,Spraying sugar and Flavoring machine etc.
Details for Breakfast Cereals Making Machinery
Twin screw extruder adopts the extrusion technology.
After the cereals is extruded, the products will become bigger, puffy texture, crisp taste, starch form, increasing the water dissolve, easy to absorb by human, thus, it is popular in the world.
Twin screw extruder has the following part:
feeding system, extrusion system, cutting system, heating system, lubricating system, driving system, control system
Packing & shipping for Breakfast Cereals Making Machinery
Packing: Inside plastic bag, outside wooden case
(Based on the customers' need adopt the wooden case or wooden pellets, etc.).
Transportation: shipping, train, express or upon clients' demands.
Inspection system for Breakfast Cereals Making Machinery
All the spare parts are made in professional factory.
The spare parts are tested by quality inspector before installing the machine. automatic Pasta maker machine
The finished extruder machine will be running for half day before delivery to guarantee the machine can run smoothly after installed in customers factory.
rAll this strict inspection system are setted to guarantee the machine quality.
Professional services for Breakfast Cereals Making Machinery
a. We can keep product design in the same level with internationally
advanced technology consistently.
b. We have high diathesis staff and excellent processing equipment, and
quality control runs through the whole production process from parts stock
to the beginning of production.
c. We can guarantee customers superior quality machines up to design r
equirements and perfect working state.
d. Our technicians can also provide all kinds of relevant technology to
make the food production clean, healthy and safe.
e. We will dispatch our technicians to your factory to guide you installation
and commissioning work and training your operator.
f. We provide 1 year complete Guarantee and life-time maintenance service.
