Specifications
Corrugated EPS Polyurethane Foam Cold Room Composite Panel1.Wall and Cold room panel
2. Insulation
3.ISO9001

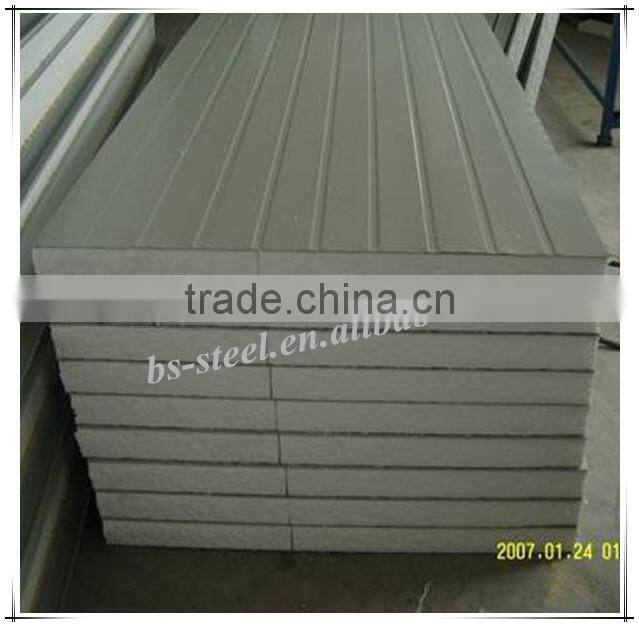

Corrugated EPS Polyurethane Foam Cold Room Composite Panel
1. Specifications of products
| Product Name | Corrugated EPS Polyurethane Foam Cold Room Composite Panel |
| Steel Thickness | 0.3mm-0.7mm |
| Panel Thikness | 40mm,50mm,60mm,75mm,100mm |
| Panel Effective Width | 950mm, 970mm |
| Length | According to customer' s request, less than 12m |
| Materials | PPGI steel and EPS foam |
| Structure | three layers: (1)upper layer is color steel sheet, (2)the inner layer is EPS foam (3)the bottom layer is color steel sheet |
| EPS Foam Density | 10-12kg/m3 |
| Color of Steel Plates | All RAL color |
| Parts | Eccentric hook for easy connect one by one Film covering in order to protect the steel of panels |
| lifetime | 8~10 years |
| Character |
Light in weight, heat insulation and waterproof,environmental
|
| Usage |
various roofs and walls referring to the coldroom,storages, and etc.
|
2. Detailes of products
1. Excellent behavior in the corrosive and moisture enviroment.
2. Thermally efficient rigid foam insulation used as the core material of sandwich panel. Excellent behavior in the corrosive and moisture enviroment.
3.Strong and light weight materials suitable for the construction as it's ease of installation and labor cost saving.
4. Excellent high temperature stablity and low temperature application
Is it fire resistant? | PU sandwich panel is fire resistant, but EPS is not. |
Is it sound-proof? | Both of PU and EPS sandwich panel are sound - proof. |
What is the density of the PU/EPS? | Normally EPS is 12kg/m3, and PU is 38kg/m3. |
What thickness of the PU/EPS can you provide? | Typically are 50mm, 75mm, and 100mm of EPS sandwich panel, 40mm, 50mm, 60mm, 75mm and 100mm of PU sandwich panel. |
What is the width of the sandwich panel? | EPS sandwich panel: 970mm for roof, and 950mm for wall. PU sandwich panel: 950mm and 1000mm for both roof and wall. |
Is the PU injected or glued? | Glued |
How to load would be most efficient? | Make the sandwich panel to be full length of the container. |
How to pack? | In order to well loaded to save the space, normally it is without packing. |
What is the delivery time? | 15 days. |
3. Appilacation
Contruction: sandwich panel for wall is referring to the Steel house, suburban housing, villa, kindergarten, model house for apartment, commercial building, remodeling of old structures, warehouse, steel structure house, workshop, work plant, airport, cold storage, mobile house, etc.
4. Product Show
5. Factory and Company Show
