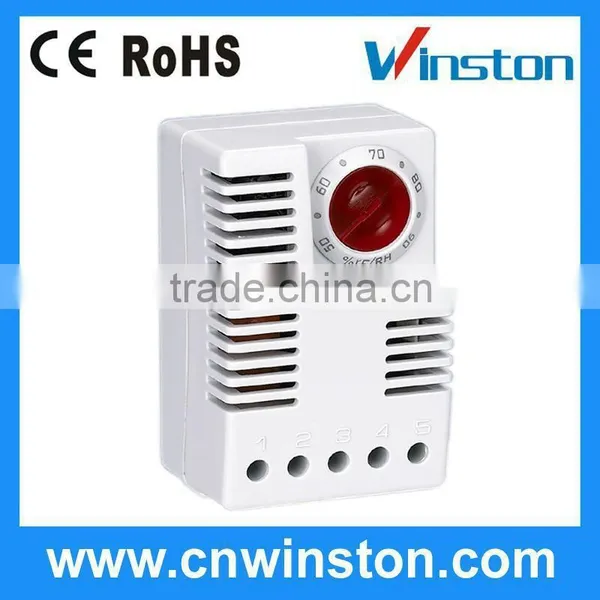

ETF 012 Electronic Hygrothermostat/Temperature and Humidity Controller
US$ 14 - 20
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
WINSTON/OEM
Model Number:
ETF 012
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ZR011 Dual Temperature With CEUS$ 5.73 - 7.55MOQ: 10 Pieces -
Factory Outlet Winston High Quality Fan and Heater Temperature Controller ZR011US$ 6 - 7MOQ: 1 Piece
-
ZR011 Factory Outlet Winston High Quality Fan and Heater Thermostat With CEUS$ 5.73 - 7MOQ: 10 Pieces
-
Factory Outlet Winston High Quality Incubator Chicken Eggs Temperature ZR011US$ 6 - 7MOQ: 1 Piece
-
Factory Outlet Winston High Quality Temperature Controller Thermostat ZR011US$ 6 - 7MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
WINSTON/OEM
Model Number
ETF 012
Usage
Industrial
Theory
Temperature Controller
Accuracy
100%
Temperature Range
0 to +60°C +32 to +140°F, 0 to +60°C +32 to +140°F

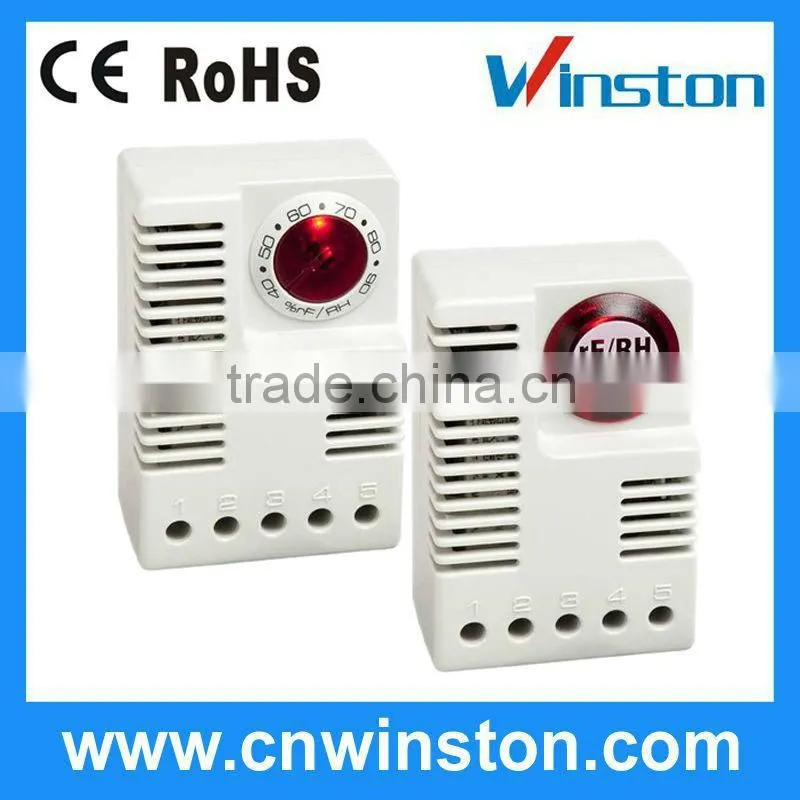

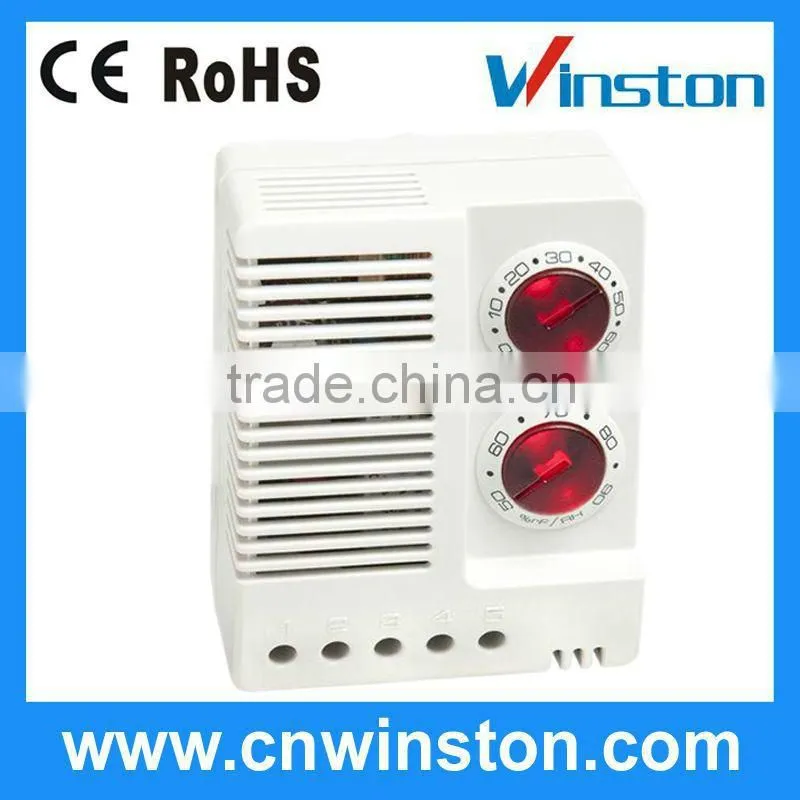

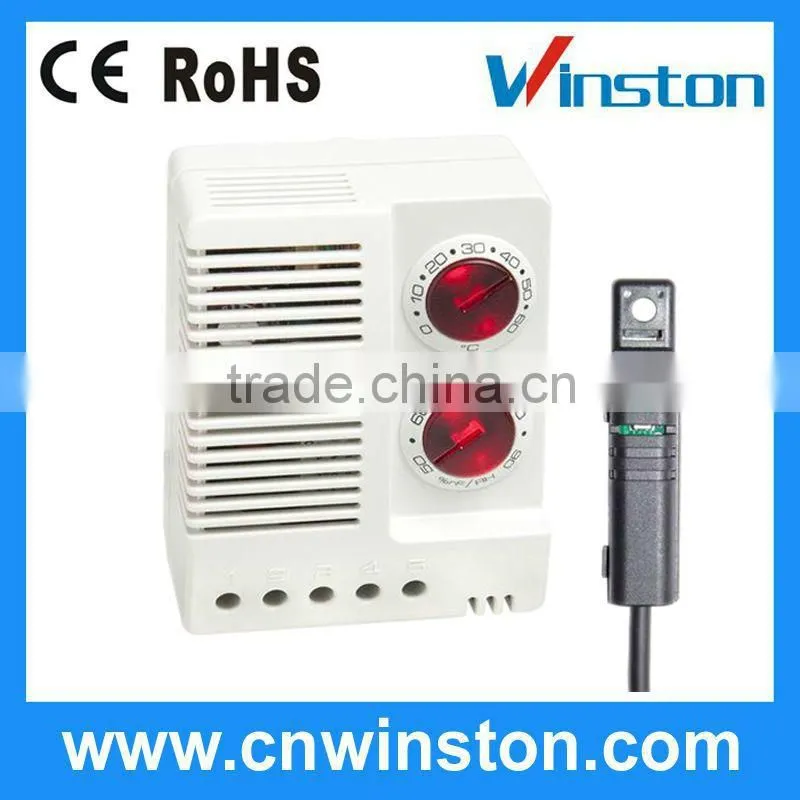

ETF 012 Electronic Hygrothermostat/Temperature and humidity controller
Specifications
ETF 012 Electronic Hygrothermostat
Temperature and humidity adjustable
LED display
High switching capacity
Clip fixing
ETF 012 Electronic Hygrothermostat/Temperature and humidity control
Product Description
- Efficient temperature & humidity control
- Wide adjustment ranges
- High switching capacity
- Optical function displays (LED)
- DIN rail mountable
The ETF 012 senses the ambient temperature and relative air humidity. Depending on which
contact combination is chosen, it then turns on or off a connected device if either the tempera-
ture is below or the humidity is above the set point. The integrated LED in each adjustment knob
is lit when indicating the active function.
Technic data
| Switch difference (temperature) | 2K (± 1K tolerance) at 25°C/77°F (50% RH) |
| Switch difference (humidity) | 4% RH (± 1% tolerance) at 25°C/77°F (50% RH) |
| Reaction time (humidity) | 5 sec. |
| Contact type | change-over contact (relay) |
| Service life | NC: 50,000 cycles |
| NO: 100,000 cycles | |
| Max. Switching capacity (Relay output) | NC: 240VAC, 6 (1) A |
| NO: 240VAC, 8 (1.6) A | |
| NC: 120VAC, 6 (1) A | |
| NO: 120VAC, 8 (1.6) A | |
| 24VDC, 4A | |
| Optical indicator | LED |
| Connection | 5-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm², stranded wire (with wire end ferrule) 1.5mm² |
| Mounting | clip for 35mm DIN rail, EN60715 |
| Casing | plastic according to UL94 V-0, light grey |
| Dimensions | 77 x 60 x 43mm |
| Weight | approx. 0.2kg |
| Fitting position | vertical |
| Operating/Storage temperature | 0 to +60°C (+32 to +140°F) / -20 to +80°C (-4 to +176°F) |
| Operating / Storage humidity | max. 90 % RH (non-condensing) |
| Protection type | IP20 |
| Art. No. | Operating voltage | Setting range temperature | Setting range humidity | Approval |
| 01230.0-00 | 230VAC, 50/60Hz | 0 to +60°C | 50 to 90% RH | VDE + UL File No. E164102 |
| 01230.9-00 | 120VAC, 50/60Hz | +32 to +140°F | 50 to 90% RH | UL File No. E164102 |
| 01230.0-01 | 230VAC 50/60HZ | +32 to +140°F | 50 to 90% RH | UL File No. E164102 |
| 01230.9-01 | 120VAC, 50/60Hz | 0 to +60°C | 50 to 90% RH | UL File No. E164102 |
Size
4.Example of connection:
