JD1 series 220v dc motor slip device speed controller

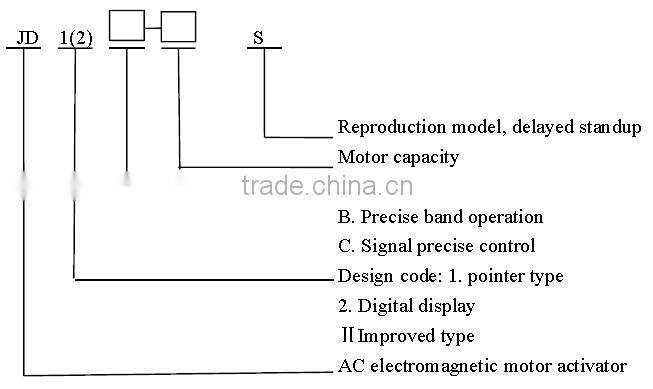

Model and implication
Working conditions
1. A latitude not exceeding 1000m
2. Ambient temperature:-5℃~40℃
3. Relativen humidity not more than 90%(below20℃)
4. Frequency range: 10Hz~150Hz, the maxi vibration not more than 0.5g
5. Voltage fluctuation<10% rating operating is guaranteed
6. The working place shall have no conductive gas.
Adjustment and commissioning
The adjustment and commissioning of JD1A and JD1B

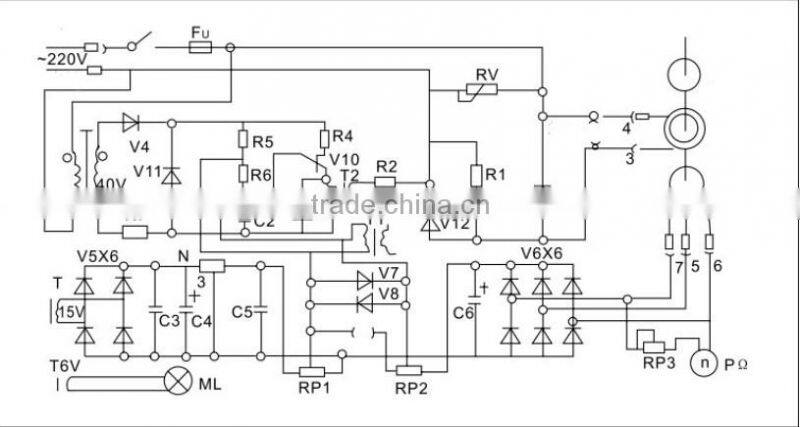

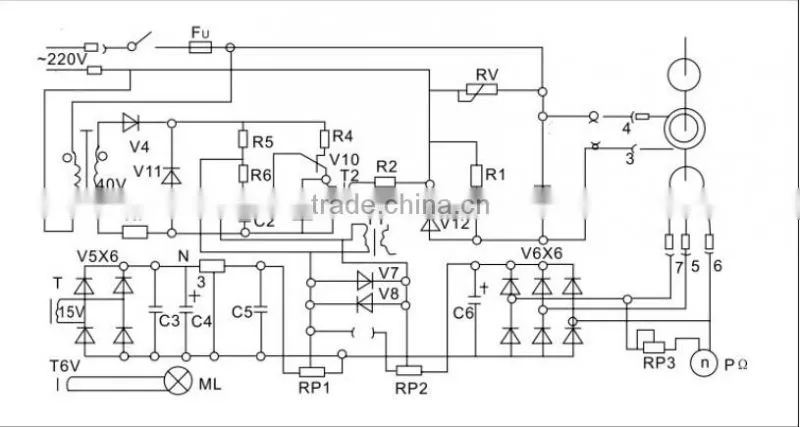

1 Wiring according to pic.1, output plugs 3 and 4 connected to clutch coil or to the load of
Illuminating lamps and output terminal connected with 100W above DC voltmeter
2 Switch on power supply ,indication lamp lighting the output of Potentiometer WI for speed regulation sjall have 0-90V jumping voltage, so when opening circuit ,we think working will be okay
1. The calibration of tachometer, due the voltage has some difference in each measured motor, consequently the value displaying in tachometer: shall be revised according to actual rotate speed, when clutch up to the specified speed, use additional axial tachometer or digital tachometer to measure the actual rotate speed .When measured value is different from the value displayed in pointer tachometer .Please adjust the potentiometer for “rotate speed calibration”.
2. Highest speed setting: twist the speed potentiometer to maxi in clockwise .And regulate the regulate the feedback potentiometer; make the motor work under highest rotate speed.
3. During running, if periodical sway occur, interchange output terminals 3 and 4.As to JD1B,it Shall adjust the ratio potentiometer W in circuit board ,to coordinate with mechanical inertia ,
Realize better steadiness.
It Shall adjust the ratio potentiometer W in circuit board ,to coordinate with mechanical inertia.
Realize better steadiness.
Structure and wiring
JD1A, JD1B type Electromagnetic motor activator has the molded case structure, up to LP5X
Protection grade, it can be panel insertion mounting ,wire income from bottom.

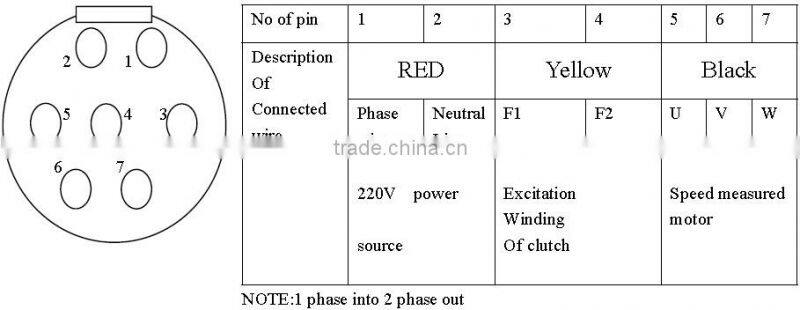

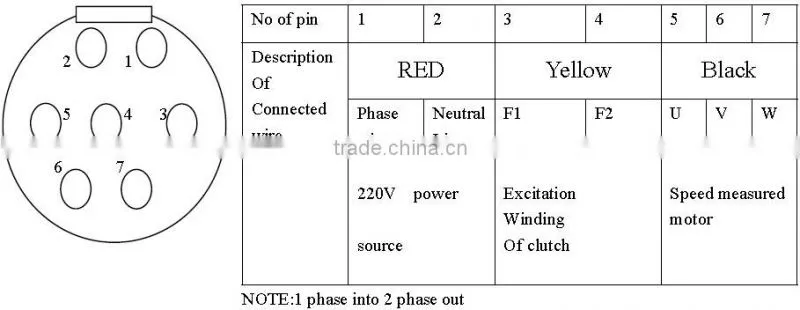

Picture 1 Wiring of plug of outgoing
WARNLNG: Before switch on power supply, please check carefully the wiring of aero plug to avoid being damaged.
TECHNICAL DATA
| Model | JD1A-11 | JD1A-40 | JD1A-90 |
| Supply voltage | ~220v+-10% 50~60Hz | ||
| Maximum output | DC90V/3.15A | DC90V/5A | DC90V/8A |
| Control motor power | 0.55~11KW | 15-40KM | 45-90KM |
| Tachogenerator | three-phase | In | 24-45V |
| Changes in the rate of speed | <=2.5% | <=2.5% | <=2.5% |
| Fixed-speed precision | <=1% | ||
| Size(mm) | 245*150*135 | ||
Wiring diagram

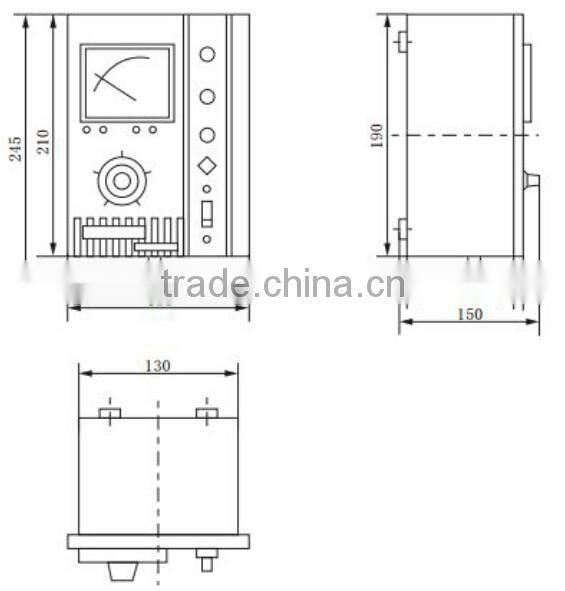

Dimension
