Home > Electrical & Electronics > Connector & Terminals > Terminals > Electrical German E Type Insulated Cord End Terminal ,pre-insulated Cord End Terminals,copper PVC Insulated Terminals Quality Choice
Electrical German E Type Insulated Cord End Terminal ,pre-insulated Cord End Terminals,copper PVC Insulated Terminals Quality Choice
US$ 0.14 - 20
MOQ: 100 Bags
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Winston/OEM
Model Number:
E Type, E Type
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai Shenzhen or others
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
UK Type Screw Din Rail Plastic Universal Terminal BlockUS$ 0.10 - 0.10MOQ: 1000 Pieces -
Manufaturer Screw TN Series Rail Type Wire Connector Electric Terminal BlockUS$ 1 - 10MOQ: 10 Pieces
-
HY5WS 11kV High Voltage Composite Metal Oxide Lightning Protecting Surge ArresterUS$ 30 - 40MOQ: 100 Sets
-
High Resistance to Acetic Acid, Alkali Sulphuric Acid, Corrode 304 316 Ball Self Lock Naked Stainless Steel Cable TiesUS$ 5 - 10MOQ: 50 Bags
-
304 316 High Resistance to Acetic Alkali Acid, Sulphuric Acid, Corrode Ball Self-lock Stainless Steel Epoxy Coated Cable TiesUS$ 5 - 10MOQ: 50 Bags
Place of Origin
Zhejiang, China
Brand Name
Winston/OEM
Model Number
E Type, E Type
Type
Other, pre-insulated cord end terminals, pre-insulated cord end terminals
E type Pre-insulated Cord End Terminals
Product Description

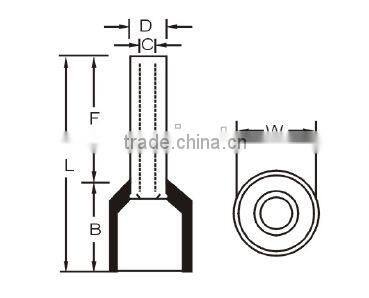

| Item No | DIMENSION | Wire range | ||||||
| F | L | W | B | D | C | A.W.G | Cable size | |
| E0505 | 5 | 11 | 2.6 |
6 | 1.3 | 1 | 22 | 0.5mm2 |
| E0506 | 6 | 12 | ||||||
| E0508 | 8 | 14 | ||||||
| E0510 | 10 | 16 | ||||||
| E0512 | 12 | 18 | ||||||
| E7506 | 6 | 12.3 | 2.8 | 6.3 | 1.5 | 1.2 | 20 | 0.75mm2 |
| E7508 | 8 | 14.3 | ||||||
| E7510 | 10 | 16.3 | ||||||
| E7512 | 12 | 18.3 | ||||||
| E7518 | 18 | 24.3 | ||||||
| E1006 | 6 | 12.3 | 3 | 6.3 | 1.7 | 1.4 | 18 | 1.0mm2 |
| E1008 | 8 | 14.3 | ||||||
| E1010 | 10 | 16.3 | ||||||
| E1012 | 12 | 18.3 | ||||||
| E1018 | 18 | 24.3 | ||||||
| E1508 | 8 | 14.3 | 3.5 | 6.3 | 2 | 1.7 | 16 | 1.5mm2 |
| E1510 | 10 | 16.3 | ||||||
| E1512 | 12 | 18.3 | ||||||
| E1515 | 15 | 21.3 | ||||||
| E1518 | 18 | 24.3 | ||||||
| E2508 | 8 | 15.4 | 4 | 7.4 | 2.6 | 2.3 | 14 | 2.5mm2 |
| E2510 | 10 | 17.4 | ||||||
| E2512 | 12 | 18.4 | ||||||
| E2518 | 15 | 25.1 | ||||||
| E2525 | 25 | 32.4 | ||||||
| E4009 | 9 | 16.4 | 4.5 | 7.4 | 3.2 | 2.8 | 12 | 4.0mm2 |
| E4010 | 10 | 17.4 | ||||||
| E4012 | 12 | 19.4 | ||||||
| E4018 | 18 | 25.4 | ||||||
| E6012 | 12 | 20.5 | 6 | 8.5 | 3.9 | 3.5 | 10 | 6.0mm2 |
| E6018 | 18 | 26.5 | ||||||
| E10-12 | 12 | 22 | 7.5 | 8.8 | 4.9 | 4.5 | 8 | 8.0mm2 |
| E10-18 | 18 | 26 | ||||||
| E16-12 | 12 | 22 | 8.7 | 10 | 6.2 | 5.8 | 6 | 16mm2 |
| E16-18 | 18 | 28 | ||||||
| E25-16 | 15 | 27 | 11 | 12 | 7.9 | 7.5 | 4 | 25mm2 |
| E25-16 | 16 | 28 | ||||||
| E25-18 | 18 | 30 | ||||||
| E25-22 | 22 | 34 | ||||||
| E35-16 | 16 | 30 | 12.5 | 14 | 8.7 | 8.3 | 2 | 35mm2 |
| E35-18 | 18 | 32 | ||||||
| E35-22 | 22 | 36 | ||||||
| E35-25 | 25 | 39 | ||||||
| E50-20 | 20 | 36 | 16 | 15 | 10.9 | 10.3 | 1/0 | 50mm2 |
| E50-25 | 25 | 41 | ||||||
| E70-20 | 20 | 37 | 16 | 17 | 14.3 | 13.5 | 2/0 | 70mm2 |
| E70-25 | 25 | 42 | ||||||
| E70-27 | 27 | 44 | ||||||
| E95-25 | 25 | 44 | 18.5 | 19 | 15.3 | 14.5 | 3/0 | 95mm2 |
| E120-27 | 27 | 47.6 | 20.3 | 20.6 | 17.5 | 16.5 | 4/0 | 120mm2 |
| E120-32 | 32 | 52.6 | ||||||
| E150-27 | 27 | 52.6 | 23.4 | 25.6 | 20.6 | 19.6 | 250/300 | 150mm2 |
| E150-32 | 32 | 57.6 | ||||||
