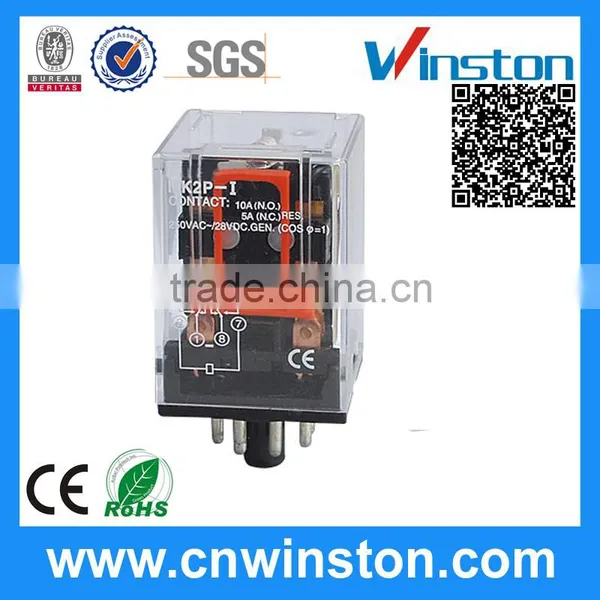

MK2P LED Indicator General Purpose Protective Electromagnetic Relay With CE

MK2P LED Indicator General Purpose Protective Electromagnetic Relay With CE thumbnail-1
MK2P LED Indicator General Purpose Protective Electromagnetic Relay With CE photo-1
US$ 1.3 - 2.8 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Winston
Model Number:
MK2P-I,MK2P-S,MK2P-N
Contact Supplier Request Quote Chat Now
Yueqing Winston Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Winston
Model Number MK2P-I,MK2P-S,MK2P-N
Theory Electromagnetic Relay
Usage Auto
Size Miniature
Protect Feature Sealed
Contact Load Low Power



Product Description

 What is the Features of the Electromagnetic Relays    ?



  • High-speed input models are available, meeting versatile applications.
ON Response Time: 15μs, OFF Response Time: 90μs
• Use 24-VDC, 100-VAC, and 200-VAC models to connect to devices with different types of outputs.
• The 24-VDC models can be connected to devices with either NPN or PNP outputs. There is no need to select the polarity. *1
• A digital filter in the Unit can be set from 0 to 32 ms to reduce the influence of external noise.
• Either a Fujitsu or MIL connector interface can be used. *2
• Several models of Terminal Block Conversion Units are available, making it easy to connect to external devices.



 What is the Specifications about our Electromagnetic Relays    ?

Product Model

MK2P

Outline Dimension(L×W×H) (mm)

35×35×53(mm)

Contact Form

2Z,2C

Initial Contact Resistance

100mΩ (1A 6VDC)

Coil Voltage

6VDC~110VDC; 6VAC~240VAC

Operate Time (at nomi. Volt)

10ms

Release Time (at nomi. Volt)

5ms

Coil Power(W)

1.5W, AC:2.5VA

Contact Rating

10A 250VAC/30VDC

Insulation Resistance

100MΩ,500VDC

Dielectric Strengh

Between Open Contact

1000VAC 1min.

Between Coil and Contact

1500VAC 1min.

Electrical Life

1×105

Mechanical Life

1×107

Max. Switching Voltage

250VAC/30VDC

Max. Switching Current

10A

Max. Switching Power

300W/2500VA

Impact Resistance

Stability 100m/s2  Intensity 1000m/s2

Humidity

95% R.H.+40%

Temperature Range

-55~+70°C

Vibration Resistance

 1mm 10~55Hz

Construction

Dust vover

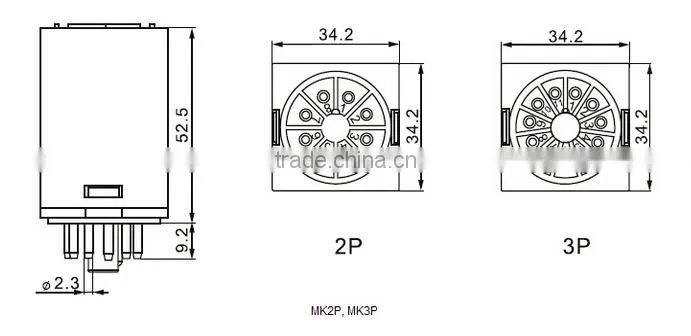

Overall dimensions

 MK2P LED Indicator General Purpose Protective Electromagnetic Relay with CE

Packaging & Shipping

 What is the packing for our product?



What is the delivery way?



(1)If ship by sea and Air,you can get Bill of Loading,CO,Commerical invoice,Packing list from us after ship.

(2)If ship by express company,you will get a Tracking No. from us after ship.

Our Services

 What the Certifications do we have obtained?



What is the payment?





What's the Refund & Replacement?

1. 90-day-warranty.

If there is any quality problem (defective / don't work) of the goods, it could be returned within the warranty days. (Please notify us as soon as possible)



2. Any items must be returned in their original condition to qualify for a refund or replacement. (Any used items cannot be refunded or replaced).

Company view





Our team







FAQ

What is the MOQ of our   Electromagnetic Relays ?



MOQ: We support sample order.(1~5PCS)

More than 500PCS,can pring Logo on the products.



How to Visit and contact us?





Firstly, you are highly welcomed to visit our factory, we can provide you an invitation letter from Chinese Embassy for you if needed.



Besides, we are more pleased to help you to book a flight or hotel to save your time.
