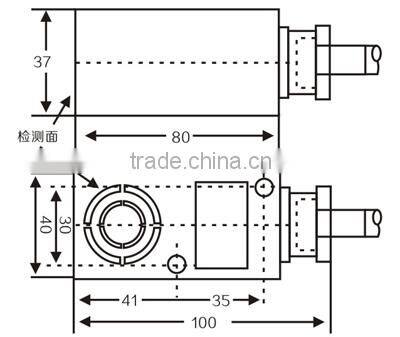

LMF16 Connector and Square Type NO/NC/NO+NC Output Inductive Infrared Straight Connector Proximity Sensor Switch With CE

Compact volume
High precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof, vibration proof, water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life

Technique parameter:
1. Switch category(LM: Inductance type; CM: Capactitance type; SM: Hall type; AM: Safety explosion-proof type; XM: Mimic linear type)

2. Outward appearance code(C: Cylinder type; F: Angular column type and planeinstallation type)

3. Operating voltage(30: 6-36VDC; 310: 5-24VDC; 320: 12-60VDC; 20: 90-250VAC; 210: 24-250VAC; 220: 380VAC; 40: 12-240VDC/24-240AC; 50: Special voltage)

4. Detection distance( 01: 1mm; 05: 5mm; 10: 10mm)

5. Output method (N: Three-line DC NPN output; P: Three-line DC PNP output; L: Two-line DC output; AC two-wire output; J: Relay output; NP: NPN+PNP output)

6. Output status(A: NO; B: NC; C: NO+NC; MU: Mimic voltage; MI: Mimic current)

7. Auxi function code(T: With connector; Y: Water proof, oil proof; I: Special requirement; H: High temp resistance; R: Ring type)
