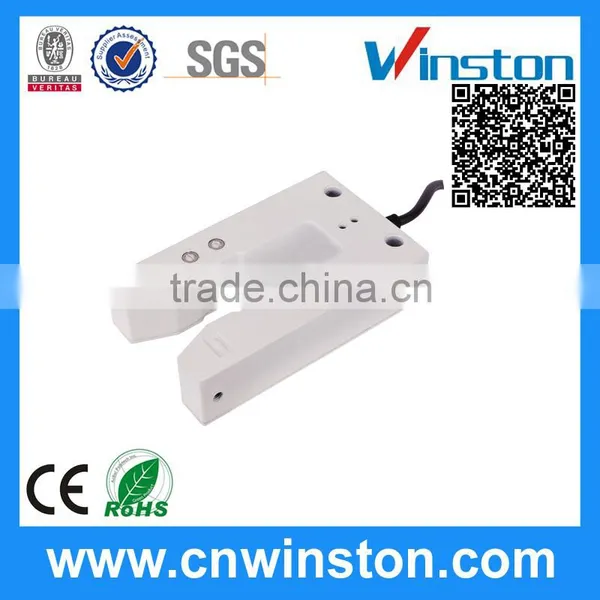

G115 Series 10-30VDC/90-250VAC NPN/PNP/2 Wires Infrared Ray Type Output Infrared Capacitance Photoelectric Sensor Switches

Name: G115 Series 10-30VDC/90-250VAC NPN/PNP/2 Wires Infrared Ray Type Output Infrared Capacitance Photoelectric Sensor Switches
Brand: Winston, Winston
SKU: 110976647
Availability: InStock

G115 Series 10-30VDC/90-250VAC NPN/PNP/2 Wires Infrared Ray Type Output Infrared Capacitance Photoelectric Sensor Switches thumbnail-1

G115 Series 10-30VDC/90-250VAC NPN/PNP/2 Wires Infrared Ray Type Output Infrared Capacitance Photoelectric Sensor Switches photo-1

US$ 6.5 - 7.2 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Winston, Winston

Model Number:

G115

Contact Supplier Request Quote Chat Now

Yueqing Winston Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Winston, Winston

Model Number G115

Usage Other, photoelectric switch, Consumption Sensor

Theory Other, Photoelectric switch, photoelectric

Output Other, Analog Sensor, Switching Transducer

Main features:

1 . Compact volume
2 . high precision of repeated location
3 . Diversified exterior structures
4 . Good performance of anti-interference
5 . Many output forms
6 . High on-off frequency
7 . Dust proof,vibration proof,water proof and oil proof.
8 . With short-circuit protection and inverted connecting protection.
9 . Long service life

Overall dimensions

Diffuse type	Detection distance
	10-30VDC	NPN	NO
			NC
			NO+NC
		PNP	NO
	90-250VAC		NC
			NO+NC
		SCR Contro Hable silicon	NO
			NC
		Relay output
Retroreflective type	Detection distance
	10-30VDC	NPN	NO
			NC
			NO+NC
		PNP	NO
	90-250VAC		NC
			NO+NC
		SCR Contro Hable silicon	NO
			NC
		Relay output
Through beam	Detection distance			25mm
	10-30VDC	NPN	NO	G115-3E25NA
			NC	G115-3E25NB
			NO+NC	G115-3E25NC
		PNP	NO	G115-3E25PA
	90-250VAC		NC	G115-3E25PB
			NO+NC	G115-3E25PC
		SCR Contro Hable silicon	NO
			NC
		Relay output
DC/SCR Control output				DC:200mA,AC:300mA,Relay:2A
DC/AC Consumption current				DC<15mA,AC<10mA
DC/AC Response time				Dc<2ms,AC<20ms
Directional angle				3 . -10 .
Detected object				transparent or opaque body
Working environment temperature				25~+55ºC
Intensity of illumination of working environment				Sunlight under 1000LX incandescent lamp under 3000LX
Shell material				Metal
Protection grade				IP54

Control diagram

Packaging & Shipping

What is the delivery way?

(1)If ship by sea and Air,you can get Bill of Loading,CO,Commerical invoice,Packing list from us after ship.

(2)If ship by express company,you will get a Tracking No. from us after ship.

Our Services

What the Certifications do we have obtained?

What is the payment?

What's the Refund & Replacement?

1. 90-day-warranty.

If there is any quality problem (defective / don't work) of the goods, it could be returned within the warranty days. (Please notify us as soon as possible)

2. Any items must be returned in their original condition to qualify for a refund or replacement. (Any used items cannot be refunded or replaced).

Company view

What is the MOQ ?

MOQ: We support sample order.(1~5PCS)

More than 500PCS,can pring Logo on the products.

What is the guarantee Period ?

1-2Year after sold
