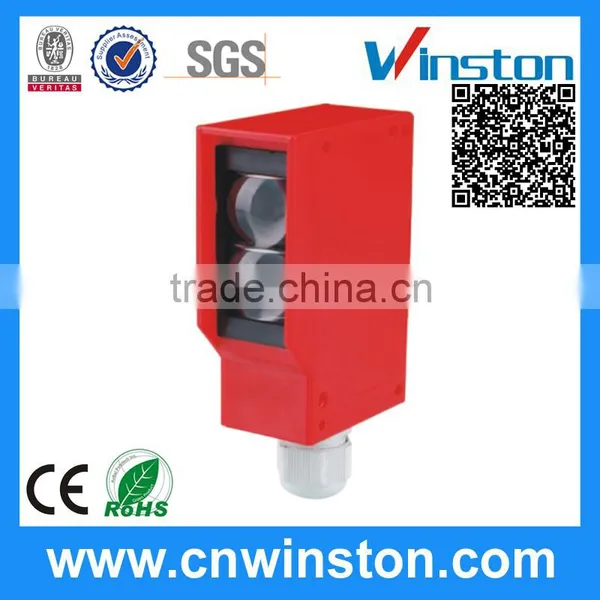

G139 Series 10-30VDC/90-250VAC NPN/PNP/2 Wires With NO/NC/NO+NC Output Infrared Capacitance Photoelectric Sensor Switches

Name: G139 Series 10-30VDC/90-250VAC NPN/PNP/2 Wires With NO/NC/NO+NC Output Infrared Capacitance Photoelectric Sensor Switches
Brand: Winston, Winston
SKU: 110976653
Availability: InStock

G139 Series 10-30VDC/90-250VAC NPN/PNP/2 Wires With NO/NC/NO+NC Output Infrared Capacitance Photoelectric Sensor Switches thumbnail-1

G139 Series 10-30VDC/90-250VAC NPN/PNP/2 Wires With NO/NC/NO+NC Output Infrared Capacitance Photoelectric Sensor Switches photo-1

US$ 8.8 - 16.9 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Winston, Winston

Model Number:

G139

Contact Supplier Request Quote Chat Now

Yueqing Winston Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Winston, Winston

Model Number G139

Usage Other, photoelectric switch, Consumption Sensor

Theory Other, Photoelectric switch, photoelectric

Output Other, Analog Sensor, Switching Transducer

Principle of photoelectric switch

The working principle of the photoelectric switch is that when the beam emitted by the emitter is blocked or partly reflected by the object, the beam receiver whereby makes a judgment and reacts.

Structural category

Throuht-beam type

Through-beam bype photoelectric switch is designed that via the light beam between opposite-mounted transmitter and receiver, the object passing through these two devices will interrupt the light beam and start the receiver.

Diffuse type
Diffuse reflection type photoelectric switch integrates the transmitter and the reciver. Light reflected by the photoelectric switch is reflected back to the receiver by the detected object.

Retroreflective type
Retroreflective type photoelectric switch also integrates the transmitter and the receiver, Its difference from other models is that reflecotr is used to relfect light to the photoelectric switch. Though the object between the photoelectric switch and reflector can reflect the light, it is much less efficient than the reflector so as to cut down reflected light.

Convergence reflection type (condensation type)
The working principle of convergence reflection type photoswitch is similar to that of direct reflection type one, while its projector and light receiver focus on boject distance, only when the object presents to the focus can the photoswitch actuate.

Feature

1 . Compact volume
2 . high precision of repeated location
3 . Diversified exterior structures
4 . Good performance of anti-interference
5 . Many output forms
6 . High on-off frequency
7 . Dust proof,vibration proof,water proof and oil proof.
8 . With short-circuit protection and inverted connecting protection.
9 . Long service life

Technical parameters

Diffuse type	Detection distance			1m
	10-30VDC	NPN	NO	G139-3A1NA
			NC	G139-3A1NB
			NO+NC	G139-3A1NC
		PNP	NO	G139-3A1PA
	90-250VAC		NC	G139-3A1PB
			NO+NC	G139-3A1PC
		SCR Contro Hable silicon	NO	G139-2A1LA
			NC	G139-2A1LB
		Relay output		G139-2A1JC
Retroreflective type	Detection distance			5m
	10-30VDC	NPN	NO	G139-3B5NA
			NC	G139-3B5NB
			NO+NC	G139-3B5NC
		PNP	NO	G139-3B5PA
	90-250VAC		NC	G139-3B5PB
			NO+NC	G139-3B5PC
		SCR Contro Hable silicon	NO	G139-2B5LA
			NC	G139-2B5LB
		Relay output		G139-2B5JC
Through beam	Detection distance			10m
	10-30VDC	NPN	NO	G139-3C101NA
			NC	G139-3C101NB
			NO+NC	G139-3C101NC
		PNP	NO	G139-3C101PA
	90-250VAC		NC	G139-3C101PB
			NO+NC	G139-3C101PC
		SCR Contro Hable silicon	NO	G139-2C101LA
			NC	G139-2C101LB
		Relay output		G139-2C101JC
DC/SCR Control output				DC:200mA,AC:300mA,Relay:2A
DC/AC Consumption current				DC<15mA,AC<10mA
DC/AC Response time				Dc<2ms,AC<20ms
Directional angle				3 . -10 .
Detected object				transparent or opaque body
Working environment temperature				25~+55ºC
Intensity of illumination of working environment				Sunlight under 1000LX incandescent lamp under 3000LX
Shell material				Aluminum/Plastic
Protection grade				IP54

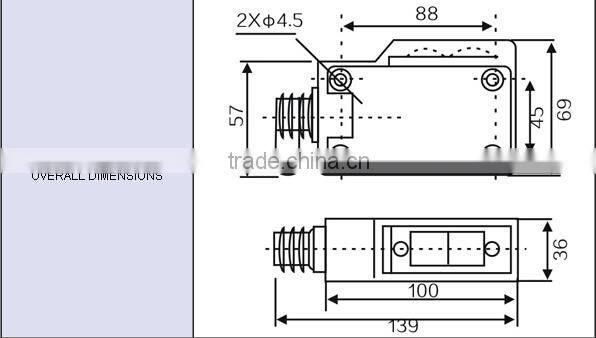

Dimension

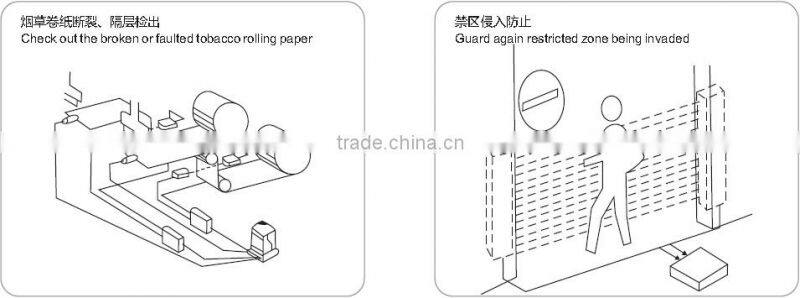

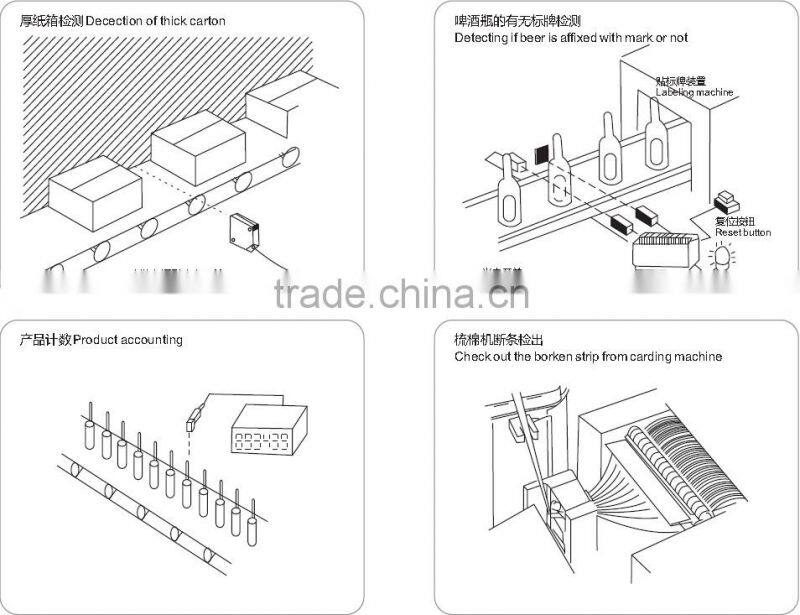

Application

What is the delivery way?

(1)If ship by sea and Air,you can get Bill of Loading,CO,Commerical invoice,Packing list from us after ship.

(2)If ship by express company,you will get a Tracking No. from us after ship.

What the Certifications do we have obtained?

What is the payment?

Other product

What's the Refund & Replacement?

1. 90-day-warranty.

If there is any quality problem (defective / don't work) of the goods, it could be returned within the warranty days. (Please notify us as soon as possible)

2. Any items must be returned in their original condition to qualify for a refund or replacement. (Any used items cannot be refunded or replaced).

Company view

What is the MOQ of our power supply?

MOQ: We support sample order.(1~5PCS)

More than 500PCS,can pring Logo on the products.

What is the guarantee Period for our power supply?

1-2Year after sold
