Vehicle chassis security scanning system CTB2008

Shockproof Infrade camera can give a clear view, even in dark.

Control hander on the top can change the direction of  camera from down to up.

4 inch wide LCD Monitor show you the view.

Foldable design, convenient to carry.

Rechargerable durable battery adopted.

With three wheels at the bottom, you can easily move the Under verhicle Inspection system.

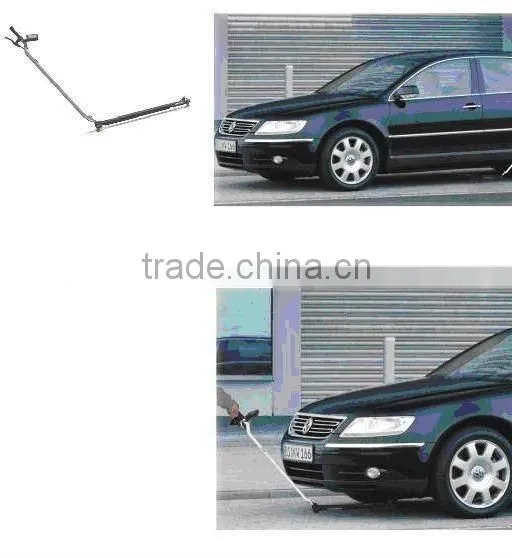

The Under Vehicle Inspection System mainly used for checking whole structure under cars, to make sure whether there is illegal modification,hidden suspicious object and person,recognize bomb or other attachments. In addition,the system can be used for safety inspection under the chair,bed, cabinet and higher places,pipeline,shaft of mine, inside tube, camera obscura,bushes etc,where human body inconvenient to get to.

Specification:

Monitor

Model:4 inch Colour TFT LCD

Resolution:480(W) *234(H)

Display area:82.1(W)*62.8(H) mm

Dot Matrix:0.171(W) *0.261(H)

Camera

Model:F2.5 Wide-Angle CCD

Rotation Angle:130°

Adjustment:Steel wire control by handCamera

Pixel: NTSC 512(H) 492(V) / PAL 500(H)482(V)

Resolution:420 TV lines

Working Voltage: DC 12V 90MA

Battery

Capacity: 220MAh

Recharge Mode:Battery recharge alone or united

Recharge Voltage:110~240V

Output Voltage:9~12.6V

Low battery alarm(Option) :Buzzer alarm when battery voltage lower than 10V

Working Time:About 7 hours Continuous

Working temperature :0~60°C

Others

Net weight:3.5KG

Volume:1023( Open 1790 )* 149*156 mm

Pakage with Aluminous Box

Gross wight:8KG

Volumetric Weight :9.5KG

Package Size :21*23*114cm
