Vehicle chassis security scanning system CTB2008
Shockproof Infrade camera can give a clear view, even in dark.
Control hander on the top can change the direction of camera from down to up.
4 inch wide LCD Monitor show you the view.
Foldable design, convenient to carry.
Rechargerable durable battery adopted.
With three wheels at the bottom, you can easily move the Under verhicle Inspection system.

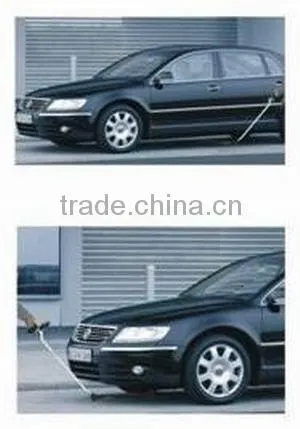

The Under Vehicle Inspection System mainly used for checking whole structure under cars, to make sure whether there is illegal modification,hidden suspicious object and person,recognize bomb or other attachments. In addition,the system can be used for safety inspection under the chair,bed, cabinet and higher places,pipeline,shaft of mine, inside tube, camera obscura,bushes etc,where human body inconvenient to get to.
Specification:
Monitor
Model:4 inch Colour TFT LCD
Resolution:480(W) *234(H)
Display area:82.1(W)*62.8(H) mm
Dot Matrix:0.171(W) *0.261(H)
Camera
Model:F2.5 Wide-Angle CCD
Rotation Angle:130°
Adjustment:Steel wire control by handCamera
Pixel: NTSC 512(H) 492(V) / PAL 500(H)482(V)
Resolution:420 TV lines
Working Voltage: DC 12V 90MA
Battery
Capacity: 220MAh
Recharge Mode:Battery recharge alone or united
Recharge Voltage:110~240V
Output Voltage:9~12.6V
Low battery alarm(Option) :Buzzer alarm when battery voltage lower than 10V
Working Time:About 7 hours Continuous
Working temperature :0~60°C
Others
Net weight:3.5KG
Volume:1023( Open 1790 )* 149*156 mm
Pakage with Aluminous Box
Gross wightt:8KG
Volumetric Weight :9.5KG
Package Size :21*23*114cm
