Home > Products > Photoelectric Switch > G15 Series 10-30VDC/90-250VAC NPN/PNP/2 Wires with NO/NC/NO+NC output Infrared Photoelectric Sensor , Photoelectric Switches

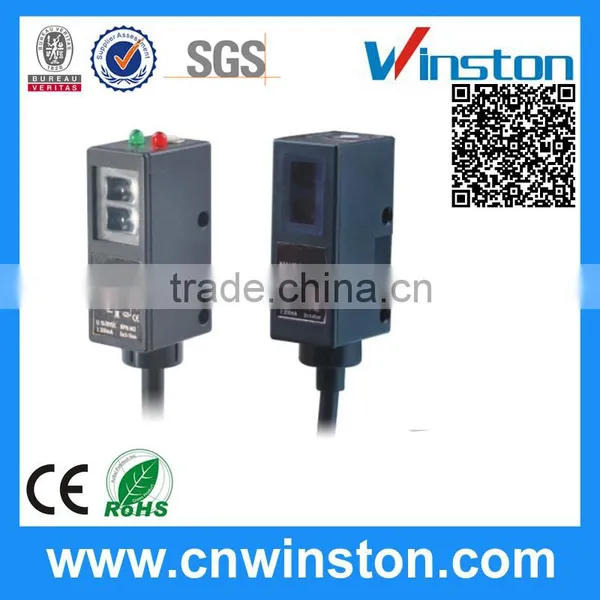

G15 Series 10-30VDC/90-250VAC NPN/PNP/2 Wires with NO/NC/NO+NC output Infrared Photoelectric Sensor , Photoelectric Switches
- 10000 Piece / Pieces per Month
- Ningbo Shanghai
- T/T Credit Card PayPal
- IRR01001 irrigation set
- Tactical Grade Inertial Measurement Unit STIM300 IMU Factory Calibrated
- ALPS Alpine Resistance Position Sensor RDC1022A05 10K Long Life Linear Type
- High-sensitive Mass Flow Controller SZCB-01-A2-B1-C3 Chinese steam turbine by Yoyik
- Intelligent Transmitter HL-6-300-15 for Bangladesh power system by Yoyik
- Wearable INDICATOR DIAL OILTEMP BWR-04JJ(TH) for Indonesia Thermal Power by Yoyik
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Winston, Winston | Model Number: | G15 |
Usage: | Other, photoelectric switch, Consumption Sensor | Theory: | Other, Photoelectric switch, photoelectric | Output: | Other, Analog Sensor, Switching Transducer |
Product Description
Main features:
2 . high precision of repeated location
3 . Diversified exterior structures
4 . Good performance of anti-interference
5 . Many output forms
6 . High on-off frequency
7 . Dust proof,vibration proof,water proof and oil proof.
8 . With short-circuit protection and inverted connecting protection.
9 . Long service life
Diffuse type | Detection distance | 10cm | ||
10-30VDC | NPN | NO | G15-3A10NA | |
NC | G15-3A10NB | |||
NO+NC | G15-3A10NC | |||
PNP | NO | G15-3A10PA | ||
90-250VAC | NC | G15-3A10PB | ||
NO+NC | G15-3A10PC | |||
SCR Contro Hable silicon | NO | |||
NC | ||||
Relay output | ||||
Retroreflective type | Detection distance | 1m | ||
10-30VDC | NPN | NO | G15-3B1NA | |
NC | G15-3B1NB | |||
NO+NC | G15-3B1NC | |||
PNP | NO | G15-3B1PA | ||
90-250VAC | NC | G15-3B1PB | ||
NO+NC | G15-3B1PC | |||
SCR Contro Hable silicon | NO | |||
NC | ||||
Relay output | ||||
Through beam | Detection distance | 3m | ||
10-30VDC | NPN | NO | G15-3C3NA | |
NC | G15-3C3NB | |||
NO+NC | G15-3C3NC | |||
PNP | NO | G15-3C3PA | ||
90-250VAC | NC | G15-3C3PB | ||
NO+NC | G15-3C3PC | |||
SCR Contro Hable silicon | NO | |||
NC | ||||
Relay output | ||||
DC/SCR Control output | DC:200mA | |||
DC/AC Consumption current | DC<15mA | |||
DC/AC Response time | Dc<2ms | |||
Detected object | transparent or opaque body | |||
Intensity of illumination of working environment | Sunlight under 1000LX incandescent lamp under 3000LX |
